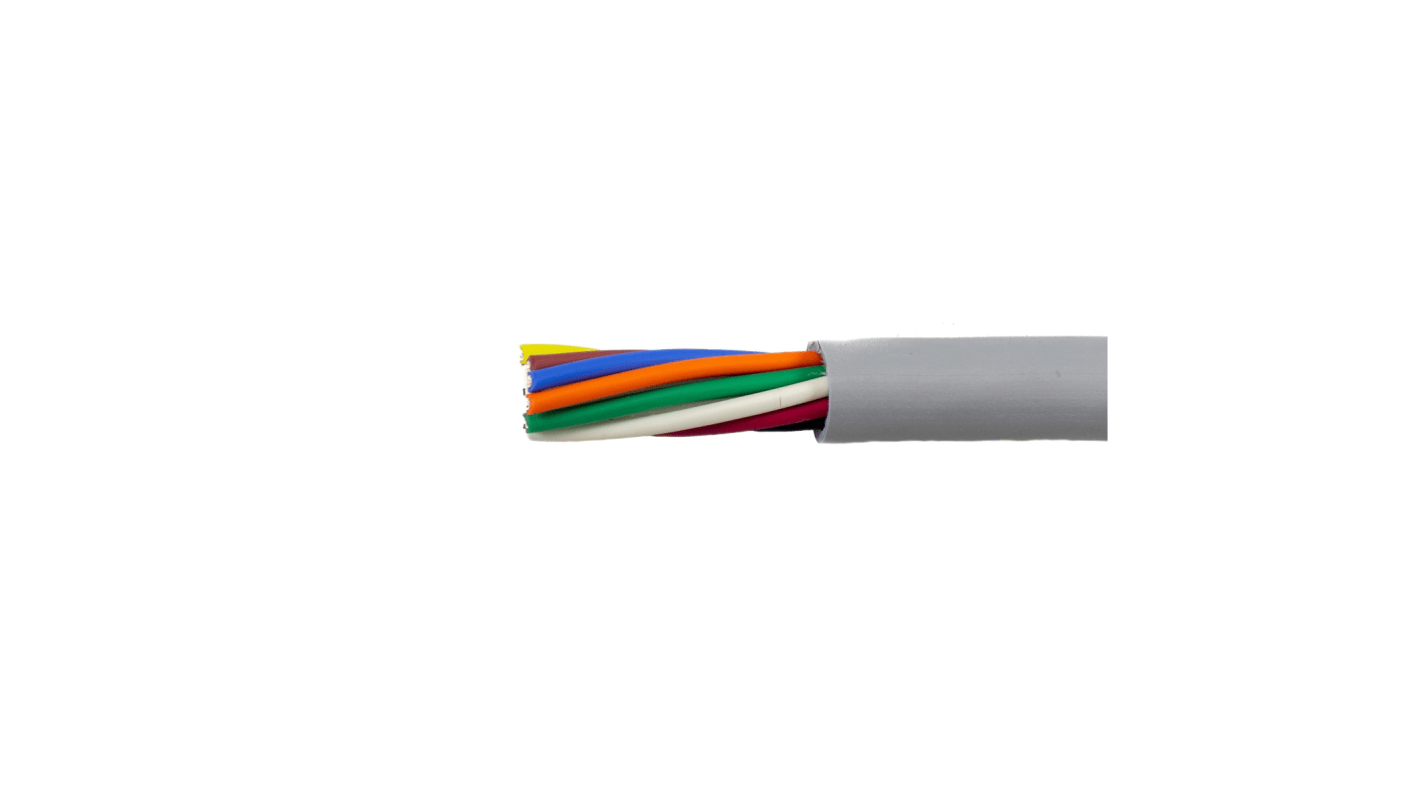

Alpha Wire EcoFlex Control Cable, 9 Cores, 0.56 mm², ECO, Unscreened, 30m, Grey mPPE Sheath, 20 AWG
- RS Stock No.:
- 787-1878
- Mfr. Part No.:
- 79006 SL005
- Brand:
- Alpha Wire
Available to back order for despatch 10/09/2024
Added
Price 1 Reel of 31 Metre(s)
£561.44
(exc. VAT)
£673.73
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £561.44 | £18.111 |
| 5 - 9 | £540.67 | £17.441 |
| 10 + | £519.33 | £16.753 |
| *price indicative | ||
- RS Stock No.:
- 787-1878
- Mfr. Part No.:
- 79006 SL005
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details
Alpha Wire EcoFlex 600 V Continuous Flex Control Cable - Unshielded
The EcoFlex range from Alpha Wire is a moderately flexible compact control cable which is fully recyclable due to its mPPE jacket and insulation construction. This multicore control cable can handle extreme temperatures, contains zero halogens, plus it is smaller and lighter than its PVC equivalent.
Unshielded multi-conductor cables have a small overall diameter and are used in low noise environments.
Unshielded multi-conductor cables have a small overall diameter and are used in low noise environments.
Features and Benefits
LSZH (Low smoke zero halogens)
Environmentally friendly
Specific gravity: 1.03
Able to handle extreme temperatures as low as -40°C
Finely stranded tinned copper conductors
Excellent abrasion resistance
Smaller, lighter and lower outgassing than PVC control cables
Good mechanical strength
Rated for over 1 million flex life cycles
Available with different core quantities
Temperature Range: -40°C to +105°C (600 V), -40°C to +80°C (300 V)
What is mPPE?
mPPE is a modified polyphenylene ether thermoplastic. Cables with a mPPE sheath have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.
How is the control cable environmentally friendly?
If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free and flame retardant.
What is halogen-free?
If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free and flame retardant.
Product Application Information
Control cables are multi-conductor cables used in power applications within the automation and instrumentation industries. Control cables can measure and regulate transmissions of automated processes. These cables have a long flex life in mechanical machines which have constant motion or flexing.
Control cables are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.
Approvals
• UL AWM 21819 (600 V, 105°C) • UL AWM 21492 (300 V, 80°C) • CE • UL VW-1 • CSA AWM I/II A/B FT1 • IEC 60332-2 Flame Behavior • RoHS • REACH • WEEE • ISO 10993-5
EcoFlex Cable, 600 V Unshielded, Multiconductor
Conductors: 9, Black, Red, White, Green, Orange, Blue, Brown, Yellow, Violet
Nominal Diameter: 0.296 inch (7.52 mm)
Jacket Thickness: 0.035 inch (0.89 mm)
Stranding: 10/30
Insulation Thickness: 0.010 (0.25 mm)
20 AWG (0.51 mm²)
Jacket Colour: Slate
Nominal Diameter: 0.296 inch (7.52 mm)
Jacket Thickness: 0.035 inch (0.89 mm)
Stranding: 10/30
Insulation Thickness: 0.010 (0.25 mm)
20 AWG (0.51 mm²)
Jacket Colour: Slate
EcoCable Range
Specifications
Attribute | Value |
|---|---|
| Series | EcoFlex |
| Number of Cores | 9 |
| Cross Sectional Area | 0.56 mm² |
| Screened/Unscreened | Unscreened |
| Length | 30m |
| Control Cable Type | ECO |
| Sheath Colour | Grey |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 7.52mm |
| Sheath Material | mPPE |
| Standards Met | CE, CSA, UL |
| Drain Wire | No |
| Minimum Operating Temperature | -40°C |
| Screen Type | Unscreened |
| Insulation Material | MPPE |
| Voltage Rating | 600 V |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 5 x Diameter |
| Maximum Operating Temperature | +105°C |
| Core Strands | 10/0.25 mm |
| Fire Behaviour | Halogen Free |
