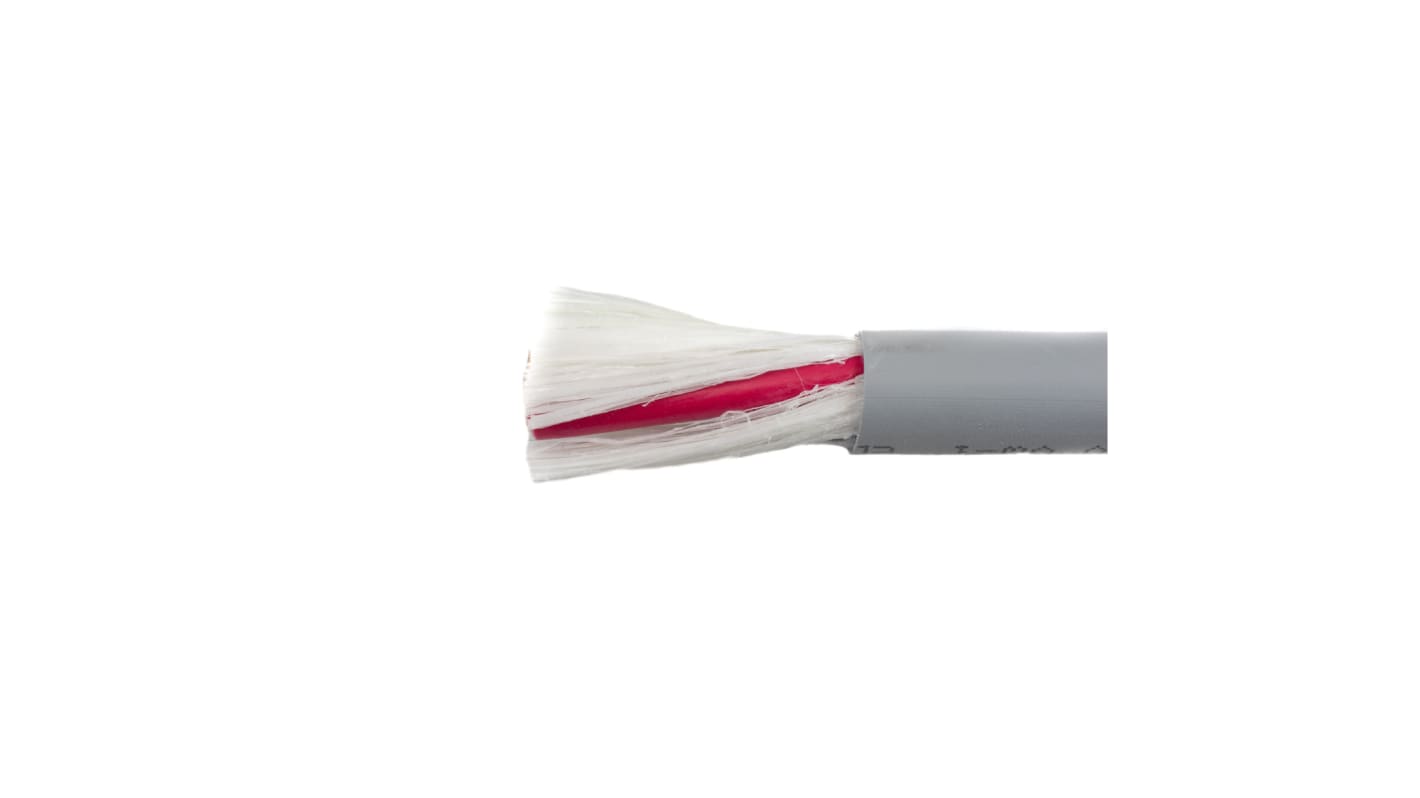

Alpha Wire Ecogen Ecoflex Control Cable, 4 Cores, 0.28 mm², ECO, Unscreened, 30m, Grey mPPE Sheath, 24 AWG

RS Stock No.:: 787-1859
Mfr. Part No.:: 79052 SL005
Brand:: Alpha Wire

Alpha Wire Ecogen Ecoflex Control Cable, 4 Cores, 0.28 mm², ECO, Unscreened, 30m, Grey mPPE Sheath, 24 AWG

Available to back order for despatch 22/11/2024

Price 1 Reel of 31 Metre(s)

£296.56

(exc. VAT)

£355.87

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 - 4	£296.56	£9.566
5 - 9	£285.59	£9.213
10 +	£274.32	£8.849

*price indicative

RS Stock No.:: 787-1859
Mfr. Part No.:: 79052 SL005
Brand:: Alpha Wire

Alpha Wire EcoFlex 600 V Continuous Flex Control Cable - Unshielded

The EcoFlex range from Alpha Wire is a moderately flexible compact control cable which is fully recyclable due to its mPPE jacket and insulation construction. This multicore control cable can handle extreme temperatures, contains zero halogens, plus it is smaller and lighter than its PVC equivalent.

Unshielded multi-conductor cables have a small overall diameter and are used in low noise environments.

Features and Benefits

LSZH (Low smoke zero halogens)

Environmentally friendly

Specific gravity: 1.03

Able to handle extreme temperatures as low as -40°C

Finely stranded tinned copper conductors

Excellent abrasion resistance

Smaller, lighter and lower outgassing than PVC control cables

Good mechanical strength

Rated for over 1 million flex life cycles

Available with different core quantities

Temperature Range: -40°C to +105°C (600 V), -40°C to +80°C (300 V)

What is mPPE?

mPPE is a modified polyphenylene ether thermoplastic. Cables with a mPPE sheath have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.

mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

How is the control cable environmentally friendly?

If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free and flame retardant.

What is halogen-free?

If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free and flame retardant.

Product Application Information

Control cables are multi-conductor cables used in power applications within the automation and instrumentation industries. Control cables can measure and regulate transmissions of automated processes. These cables have a long flex life in mechanical machines which have constant motion or flexing.

Control cables are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

Approvals

• UL AWM 21819 (600 V, 105°C) • UL AWM 21492 (300 V, 80°C) • CE • UL VW-1 • CSA AWM I/II A/B FT1 • IEC 60332-2 Flame Behavior • RoHS • REACH • WEEE • ISO 10993-5

EcoFlex Cable, 600 V Unshielded, Multiconductor

Conductors: 4, Black, Red, White, Green
Nominal Diameter: 0.181 inch (4.60 mm)
Jacket Thickness: 0.035 inch (0.89 mm)
Stranding: 19/36
Insulation Thickness: 0.010 (0.25 mm)
24 AWG (0.24 mm²)
Jacket Colour: Slate

EcoCable Range

Attribute	Value
Series	EcoFlex
Number of Cores	4
Cross Sectional Area	0.28 mm²
Screened/Unscreened	Unscreened
Length	30m
Control Cable Type	ECO
Sheath Colour	Grey
American Wire Gauge	24 AWG
Outer Diameter	4.6mm
Sheath Material	mPPE
Standards Met	CE, CSA, UL
Minimum Operating Temperature	-40°C
Insulation Material	MPPE
Fire Behaviour	Halogen Free
Maximum Operating Temperature	+105°C
Screen Type	Unscreened
Drain Wire	No
Voltage Rating	600 V
Conductor Material	Tinned Copper
Core Strands	19/0.13 mm
Minimum Bend Radius	5 x Diameter
