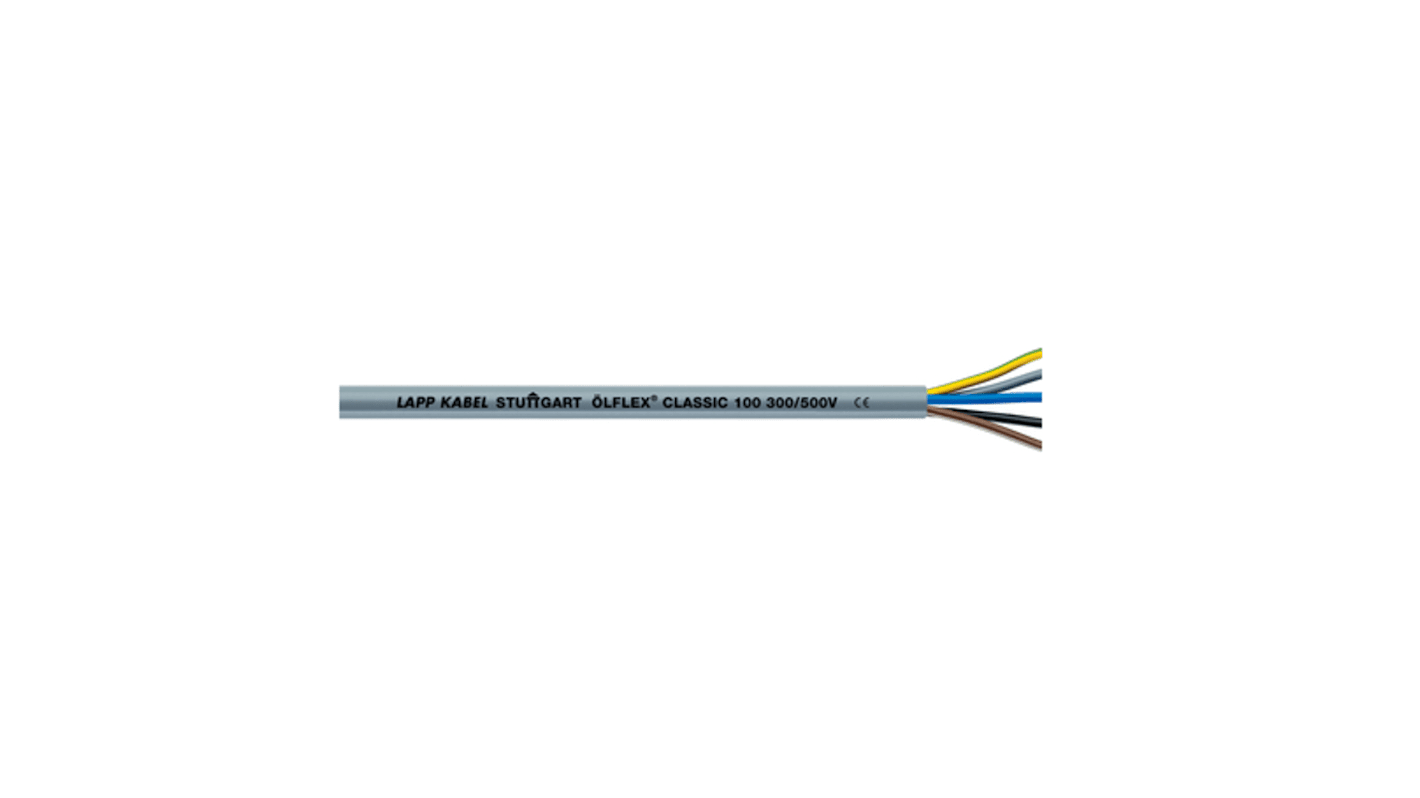

ÖLFLEX® Classic 100 cables are a connecting and control cable for flexible use and fixed installation for medium mechanical load.

ÖLFLEX® Classic 100 cables are used as supply and interconnecting cable for controlling machine tools, production lines, control equipment on conveyors, and are also used in computer units. They are suitable for use when freely moved without forced guidance and tensile stress.

They may only be installed outdoors with UV protection and in observation of their operating temperature range. At room temperature the cable is generally resistant against, acids, caustic solutions and certain oils.

Features and Benefits

• Chemical Resistance
• Flame retardant: in accordance to IEC 60 332.1 resp. VDE 0482 part 332-2-1
• Design: in accordance to HD 21.13S1 that is VDE 0281-13
• Minimum bending radius: flexible use 15 x cable diameter, fixed installation 4 x cable diameter
• Tests: in accordance to IEC 60 811 resp. VDE 0472 and VDE 0473
• Operating Temperature for flexible use -5 up to +70°C
• Operating Temperature for fixed installation -40 up to +80°C

Applications

ÖLFLEX® Classic 100 cables can be used in dry, damp and wet rooms, and their resistance to oil and chemicals makes them suitable for specialist environments. As such, they have a wide range of applications, and can often be found in;

• Plant and Engineering
• HVAC Systems
• Power Stations

Their torsion resistance also makes them suitable for torsional applications such as the loop in wind turbine generators.

Accessories

Lapp have a range of versatile cable glands for use in cable installation and management, such as the Skintop Click series of easy-fit glands:

• 560-678 is an M12 Skintop Click Cable Gland for 3.5-7mm Cable Diameters
• 475-091 is an M16 Skintop Click Cable Gland for 4.5-10mm Cable Diameters
• 475-136 is an M20 Skintop Click Cable Gland for 7-13mm Cable Diameters
• 475-132 is an M25 Skintop Click Cable Gland for 9-17mm Cable Diameters
• 560-688 is an M32 Skintop Click Cable Gland for 11-21mm Cable Diameters

This cable confirms to ECD 73/23/EEC (low voltage directive).

This Lapp control cable, known for its efficiency and durability, offers a compact design ideal for various industrial applications. With excellent electrical performance and flexibility, this cable ensures reliable power transmission in diverse settings.

• Space-saving installation due to small cable diameters results in efficient use of space
• The 4kV test voltage ensures maximum electrical efficiency
• IShort-twisted conductor layers enhance flexibility, making it suitable for occasional flexing without tension
• The PVC insulation provides protection and ensures safe operation
• The cable's oil-resistant properties make it suitable for industrial environments.

• Ideal for use in machinery and power stations
• Suitable for wiring air conditioning systems
• Suitable for environments with moderate mechanical loads
• Ideal for fixed wiring applications, offering stability and reliability

Yes, it can endure temperatures ranging from -40°C to +70°C.

It is oil-resistant, making it suitable for industrial settings.

Yes, the short-twisted conductor layers allow for occasional flexing.

Yes, it is ideal for plant machinery and industrial applications.

Yes, the 4kV test voltage ensures efficient power transmission.
