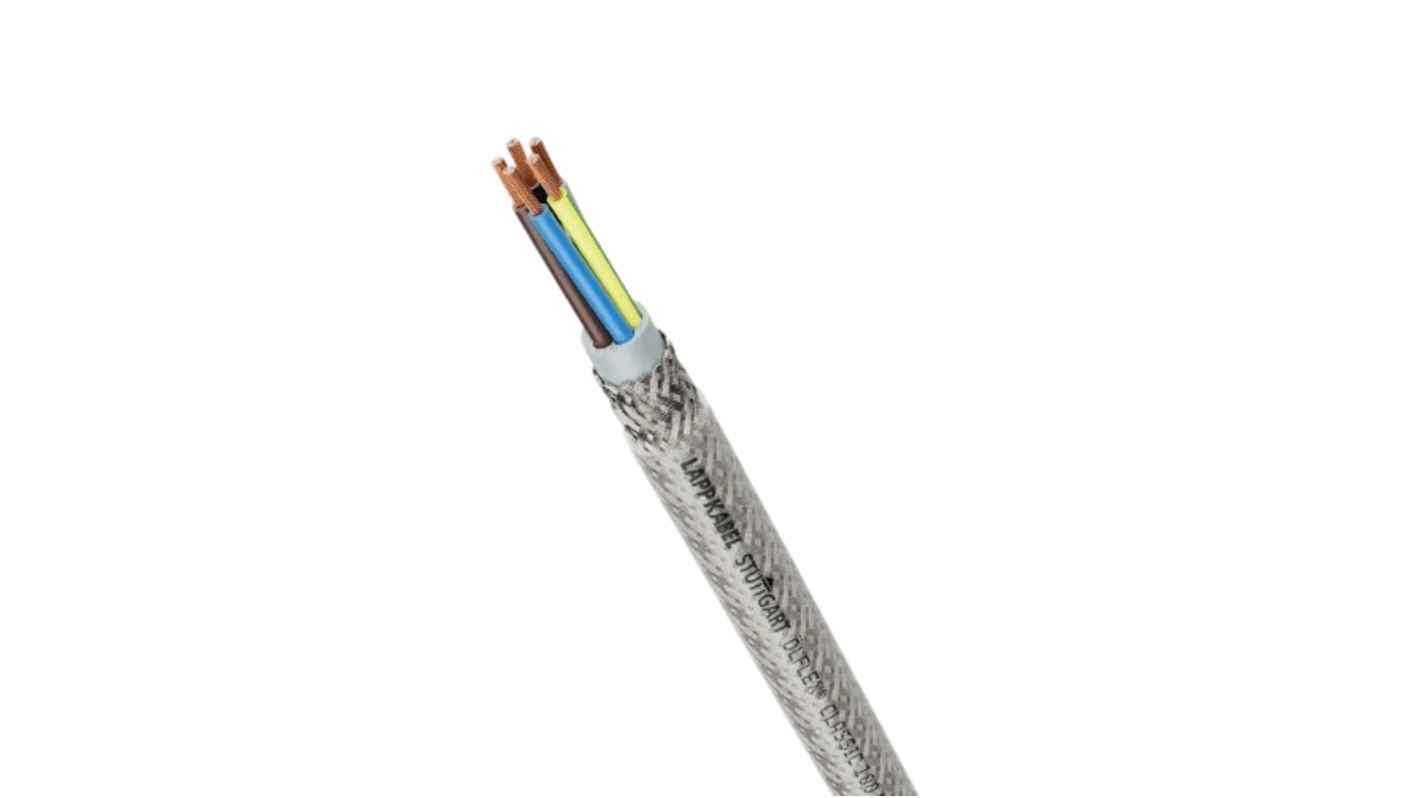

Lapp ÖLFLEX CLASSIC 100 CY Control Cable, 4 Cores, 2.5 mm², CY, Screened, 50m, Transparent PVC Sheath, 13 AWG
- RS Stock No.:
- 444-0272
- Distrelec Article No.:
- 300-49-434
- Mfr. Part No.:
- 0035017
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£427.20
(exc. VAT)
£512.64
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 29 December 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £427.20 | £8.544 |
*price indicative
- RS Stock No.:
- 444-0272
- Distrelec Article No.:
- 300-49-434
- Mfr. Part No.:
- 0035017
- Brand:
- Lapp
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CLASSIC 100 CY | |
Number of Cores | 4 | |
Cross Sectional Area | 2.5 mm² | |
American Wire Gauge | 13 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Transparent | |
Control Cable Type | CY | |
Screen Type | Tinned Copper Braid | |
Armoured | No | |
Screened/Unscreened | Screened | |
Outer Diameter | 13.5mm | |
Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D | |
Length | 50m | |
Voltage Rating | 450/750 V | |
Current Rating | 26 A | |
CPR Certification | Eca | |
Maximum Operating Temperature | +80°C | |
Conductor Resistance | 7.98 Ω/km | |
Earth Cable | Yes | |
Insulation Material | PVC | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -40°C | |
Core Strands | 50/0.25 mm | |
Bedding Material | PVC | |
Filler Material | Non-Wicking Filler | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 100 CY | ||
Number of Cores 4 | ||
Cross Sectional Area 2.5 mm² | ||
American Wire Gauge 13 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Transparent | ||
Control Cable Type CY | ||
Screen Type Tinned Copper Braid | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Outer Diameter 13.5mm | ||
Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D | ||
Length 50m | ||
Voltage Rating 450/750 V | ||
Current Rating 26 A | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Conductor Resistance 7.98 Ω/km | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
Core Strands 50/0.25 mm | ||
Bedding Material PVC | ||
Filler Material Non-Wicking Filler | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX CLASSIC 100 CY Series Control Cable, 4 Number of Cores, 2.5mm² Cross Sectional Area - 0035017
Features & Benefits
• High voltage testing ensures electrical safety up to 4kV
• Flexible PVC material allows for easy installation and handling
• Flame-retardant properties enhance safety during use
• Temperature range from -40°C to +80°C for versatile applications
Applications
• Suitable for machine building and automation systems
• Applicable in heating and air-conditioning systems
• Utilised in conveyor and transport systems for control functions
• Ideal for servo drives in EMC-sensitive environments
What is the cable's resistance and how does it affect performance?
How does the cable's construction contribute to its flexibility?
Can this cable withstand exposure to various chemicals?
