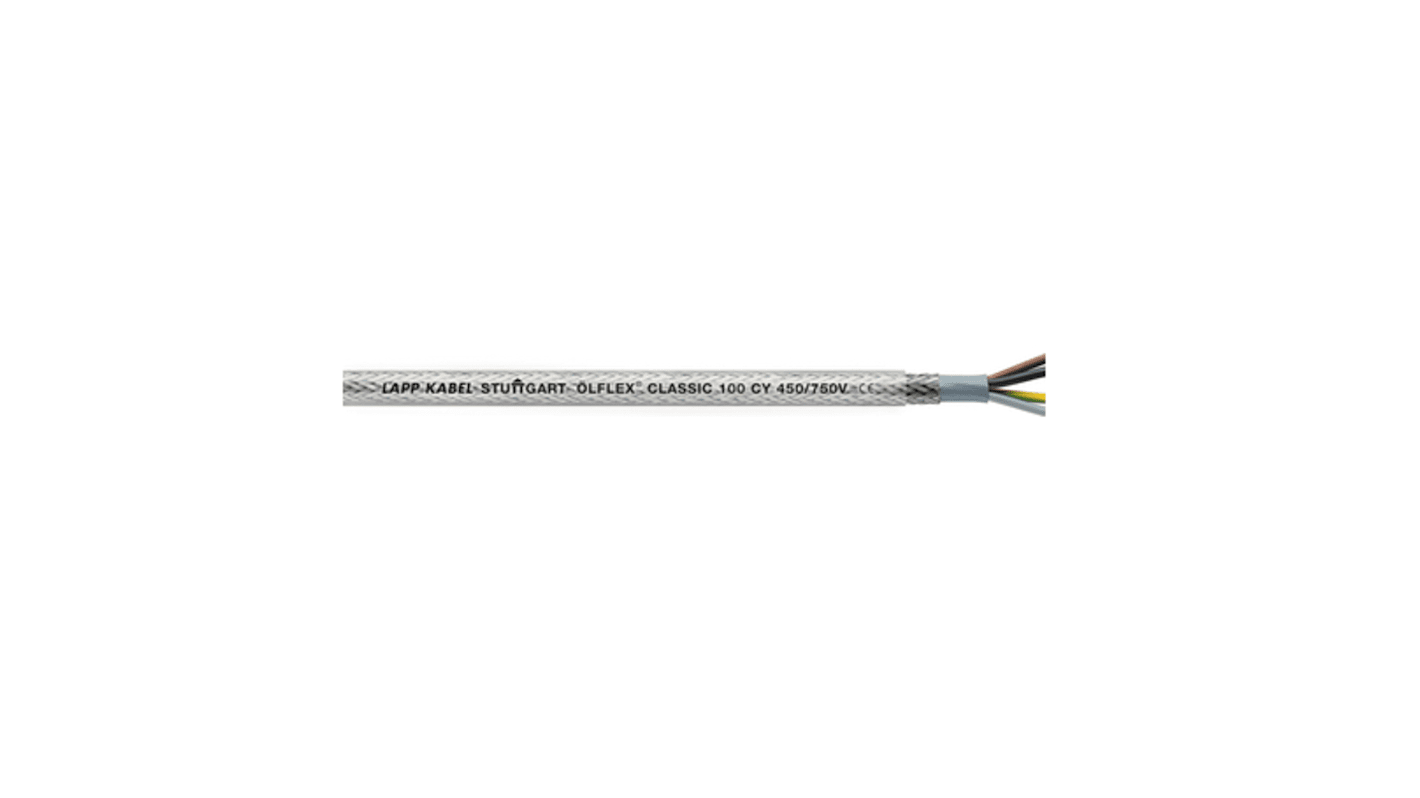

Lapp ÖLFLEX CLASSIC 100 CY Control Cable, 3 Cores, 1.5 mm², CY, Screened, 50m, Transparent PVC Sheath, 16 AWG
- RS Stock No.:
- 444-0222
- Mfr. Part No.:
- 0035458
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£202.80
(exc. VAT)
£243.36
(inc. VAT)
FREE delivery for orders over £50.00
- 16 unit(s) ready to ship
- Plus 3 unit(s) shipping from 31 October 2025
- Plus 2 unit(s) shipping from 05 December 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £202.80 | £4.056 |
*price indicative
- RS Stock No.:
- 444-0222
- Mfr. Part No.:
- 0035458
- Brand:
- Lapp
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CLASSIC 100 CY | |
Number of Cores | 3 | |
Cross Sectional Area | 1.5 mm² | |
American Wire Gauge | 16 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Control Cable Type | CY | |
Sheath Colour | Transparent | |
Screen Type | Tinned Copper Braid | |
Screened/Unscreened | Screened | |
Outer Diameter | 10.3mm | |
Length | 50m | |
Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D | |
Voltage Rating | 450/750 V | |
Current Rating | 18 A | |
Standards Met | CE | |
CPR Certification | Eca | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Conductor Resistance | 13.5 Ω/km | |
Minimum Operating Temperature | -40°C | |
Bedding Material | PVC | |
Filler Material | Non-Wicking Filler | |
Oil Resistant | Yes | |
Earth Cable | Yes | |
Core Strands | 30/0.25 mm | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 100 CY | ||
Number of Cores 3 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Control Cable Type CY | ||
Sheath Colour Transparent | ||
Screen Type Tinned Copper Braid | ||
Screened/Unscreened Screened | ||
Outer Diameter 10.3mm | ||
Length 50m | ||
Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D | ||
Voltage Rating 450/750 V | ||
Current Rating 18 A | ||
Standards Met CE | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Conductor Resistance 13.5 Ω/km | ||
Minimum Operating Temperature -40°C | ||
Bedding Material PVC | ||
Filler Material Non-Wicking Filler | ||
Oil Resistant Yes | ||
Earth Cable Yes | ||
Core Strands 30/0.25 mm | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- DE
Lapp ÖLFLEX CLASSIC 100 CY Series Control Cable, Copper Conductor Material, PVC Insulation - 0035458
Features & Benefits
• Good chemical resistance for durability
• High level of screening to minimise interference signals
• Low coupling resistance for reliable conductivity
• Provides 450/750 V for power needs
Applications
• Suitable for heating, air-conditioning systems
• Used in conveyor and transport systems
• Can be used for servo drives application
• Ensures electromagnetic compatibility in sensitive environments
Can it withstand high temperatures?
Will it support different core strands?
Is it suitable for outdoor use?
Can it resist oil?
Does it have CPR certification?
