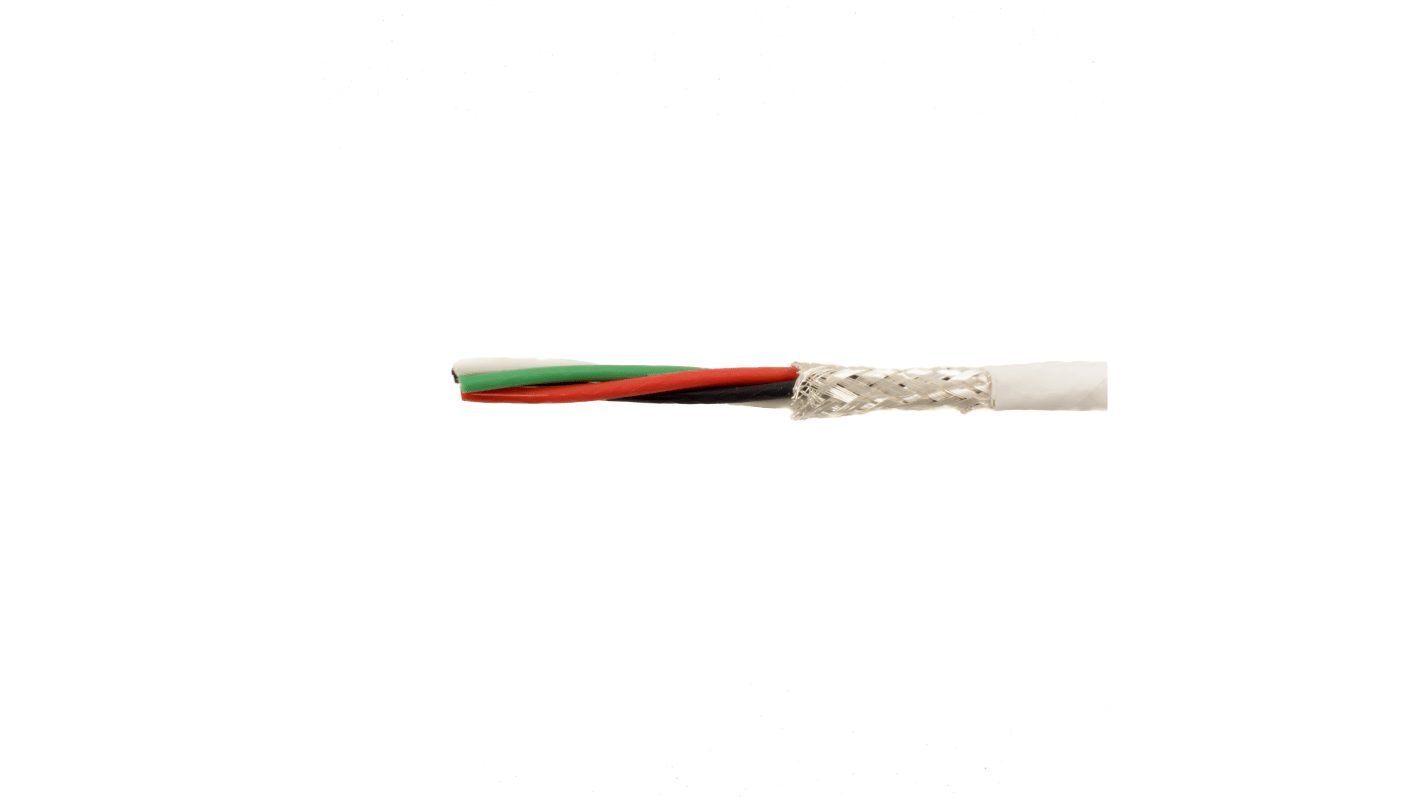

Alpha Wire DEF STAN Control Cable, 6 Cores, 0.35mm² 22 AWG, Screened, 100 ft, White Polytetrafluoroethylene Sheath
- RS Stock No.:
- 277-5618
- Mfr. Part No.:
- 2824/6 WH005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£646.98
(exc. VAT)
£776.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 6 unit(s) shipping from 28 May 2026
- Plus 3 unit(s) shipping from 13 July 2026
- Plus 2 unit(s) shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £646.98 | £21.566 |
*price indicative
- RS Stock No.:
- 277-5618
- Mfr. Part No.:
- 2824/6 WH005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | DEF STAN | |
| Product Type | Control Cable | |
| Number of Cores | 6 | |
| Conductor Material | Silver Plated Copper | |
| Jacket Material | Polytetrafluoroethylene | |
| Jacket Colour | White | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 0.211in | |
| Cable Length | 100ft | |
| Voltage | 600Vrms | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | EU Low Voltage 2014/35/EU, MIL W 16878/4 (Type E) 200°C / 600 VRMS, NEMA HP3 EXBFE 200°C / 600 VRMS | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.35mm² | |
| American Wire Gauge | 22AWG | |
| Core Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series DEF STAN | ||
Product Type Control Cable | ||
Number of Cores 6 | ||
Conductor Material Silver Plated Copper | ||
Jacket Material Polytetrafluoroethylene | ||
Jacket Colour White | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Outside Diameter 0.211in | ||
Cable Length 100ft | ||
Voltage 600Vrms | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals EU Low Voltage 2014/35/EU, MIL W 16878/4 (Type E) 200°C / 600 VRMS, NEMA HP3 EXBFE 200°C / 600 VRMS | ||
Hazardous Area Certification No | ||
Cable CSA 0.35mm² | ||
American Wire Gauge 22AWG | ||
Core Strands 19 | ||
RoHS Status: Exempt
Belden Alpha Essentials Communication & Control Series Control Cable, 600Vrms Voltage, White Jacket - 2824/6 WH005
This control cable is a screened, six-core PTFE assembly designed for demanding electrical and automation environments where elevated temperature performance and stable signal integrity are required. It combines fine-stranded silver-plated copper conductors with a white PTFE outer tape to provide continuous operation across a wide temperature span while maintaining a 600Vrms rating for control circuits.
Features & Benefits
• Silver-plated copper conductors ensure low contact resistance and corrosion resistance
• 19-strand construction delivers enhanced flexibility for routing and installation
• Screened braid with ≥90% coverage reduces electromagnetic interference susceptibility
• PTFE insulation and jacket permit continuous use up to 200°C
• Voltage rating of 600Vrms supports typical control and signalling systems
• Minimum operating temperature of -55°C allows use in cold environments
• 19-strand construction delivers enhanced flexibility for routing and installation
• Screened braid with ≥90% coverage reduces electromagnetic interference susceptibility
• PTFE insulation and jacket permit continuous use up to 200°C
• Voltage rating of 600Vrms supports typical control and signalling systems
• Minimum operating temperature of -55°C allows use in cold environments
**Applications**
• Suitable for wiring temperature-critical control panels in industrial automation
• Ideal for interconnects in electrical machinery operating at elevated temperatures
• Used with instrumentation and control equipment requiring screened cables
• Can be used for signal transmission in robotics and motion-control systems
• Suitable for retrofit installations needing a white PTFE jacket for identification
• Ideal for interconnects in electrical machinery operating at elevated temperatures
• Used with instrumentation and control equipment requiring screened cables
• Can be used for signal transmission in robotics and motion-control systems
• Suitable for retrofit installations needing a white PTFE jacket for identification
How is the core arrangement configured inside the assembly?
Six individually insulated conductors are cabled together with a specified twist rate and arranged from the inner layer outwards to maintain consistent geometry and electrical behaviour.
What mechanical limits should be observed during installation?
A recommended minimum bend radius equals ten times the cable diameter and pull tension should not exceed 41 lb to avoid conductor or insulation damage.
How does the shield affect grounding and continuity measurements?
The braided silver-plated copper shield presents an overall shield DC resistance of approximately 3.6 Ω/1000 ft at 20°C and is intended for use as a ground continuity path and EMI barrier.
What electrical characteristics influence signal performance over distance?
Typical conductor-to-conductor capacitance is around 24.1 pF/ft and inductance about 0.17 μH/ft, values useful for predicting signal propagation and coupling in control circuits.
Are there specific packaging lengths available for procurement?
The product is supplied in continuous 100 ft lengths and larger reels with a minimum piece length of 100 ft when provided in multiple sections.
