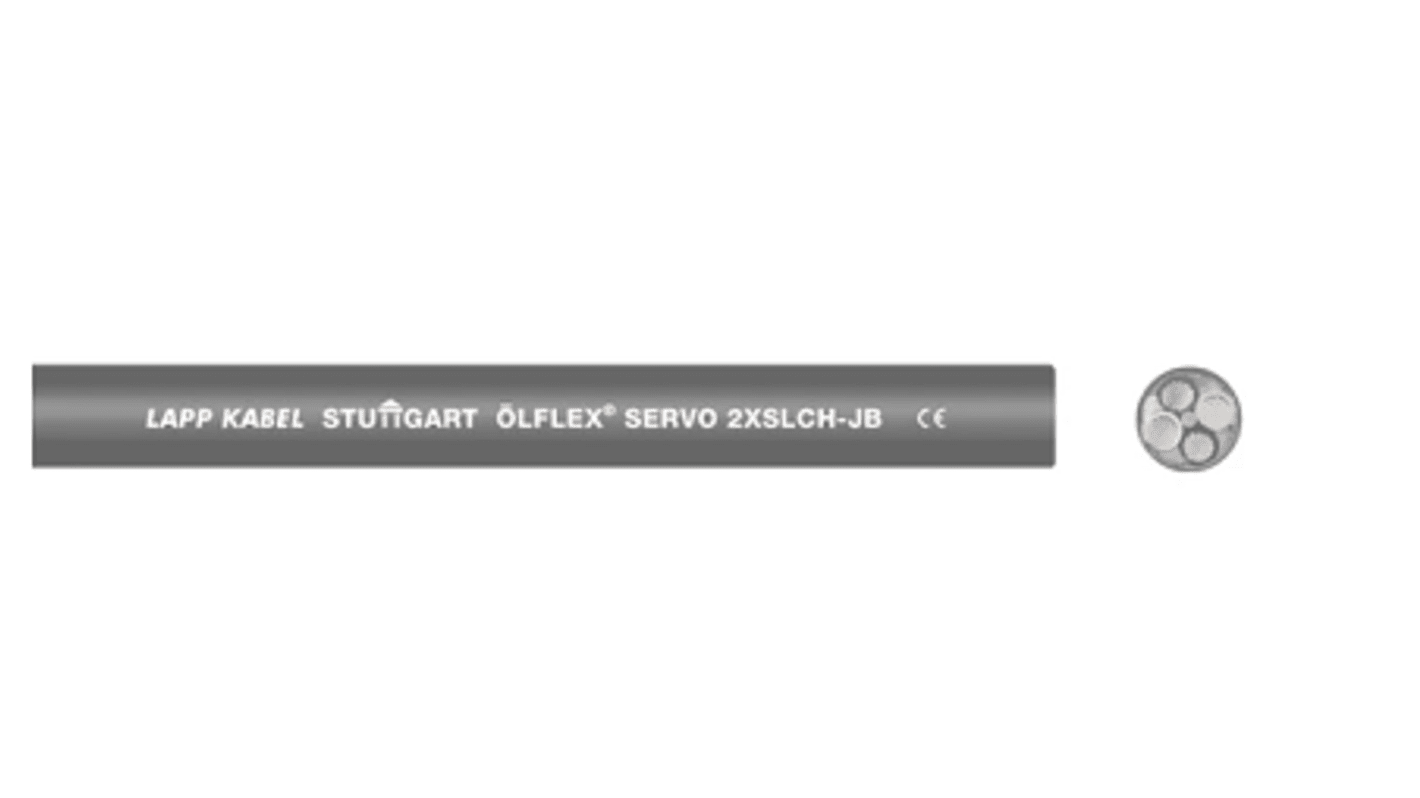

Lapp 2XSLCH-JB Motor Cable, 4 Cores, 6 mm², Screened, 50 m, Black Polyvinyl Chloride Sheath
- RS Stock No.:
- 270-0927
- Mfr. Part No.:
- 1133517
- Brand:
- Lapp
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 270-0927
- Mfr. Part No.:
- 1133517
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Motor Cable | |
| Series | 2XSLCH-JB | |
| Number of Cores | 4 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Black | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 14.7 mm | |
| Cable Length | 50m | |
| Voltage | 1000 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | RoHS, IEC 60332, EU (2014/35/EU), EN 13501-6, DIN VDE, CE | |
| Maximum Operating Temperature | 90°C | |
| Cable CSA | 6 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Motor Cable | ||
Series 2XSLCH-JB | ||
Number of Cores 4 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Black | ||
Screened/Unscreened Screened | ||
Outside Diameter 14.7 mm | ||
Cable Length 50m | ||
Voltage 1000 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Standards/Approvals RoHS, IEC 60332, EU (2014/35/EU), EN 13501-6, DIN VDE, CE | ||
Maximum Operating Temperature 90°C | ||
Cable CSA 6 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
- COO (Country of Origin):
- IT
The Lapp control cable has double shielded low capacitance supply cables of flexible design. With halogen free outer sheath and XLPE core insulation. They are ideal for frequency converters operated three phase motors of small medium and large size. The cables are suitable for use in dry and damp rooms. Permanent outdoor use is possible if the indicated temperature range is observed. At room temperature they are largely resistant to acids, alkalis and certain oils. They are suitable for occasional flexible use and fixed installation under normal mechanical stress.
Cable has 4 core with twisted together in one layer
Double screening with aluminium coated plastic foil and braid of tinned copper wires
Halogen free compound
Outer sheath is flexible at low temperatures
