Lapp 2XSLCH-JB Motor Cable, 4 Cores, 4 mm² 12 AWG, Screened, 10 m, Black

View all Control Cable

Subtotal (1 reel of 50 metres)*

£364.84

(exc. VAT)

£437.81

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£364.84£7.297

*price indicative

Sponsored
Lapp Glands
Lapp Logo Alt
Shop our LAPP Glands
Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.
Shop here
RS Stock No.:
270-0922
Mfr. Part No.:
1133502
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

2XSLCH-JB

Product Type

Motor Cable

Number of Cores

4

Conductor Material

Copper

Jacket Colour

Black

Screened/Unscreened

Screened

Cable Length

10m

Outside Diameter

14.1 mm

Voltage

1000 V

Minimum Operating Temperature

-40°C

Conductor Type

Stranded

Standards/Approvals

RoHS, EN 13501-6 and EN 50575

Maximum Operating Temperature

90°C

Hazardous Area Certification

No

Cable CSA

4 mm²

American Wire Gauge

12AWG

Fire Behaviour

Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2

COO (Country of Origin):
DE

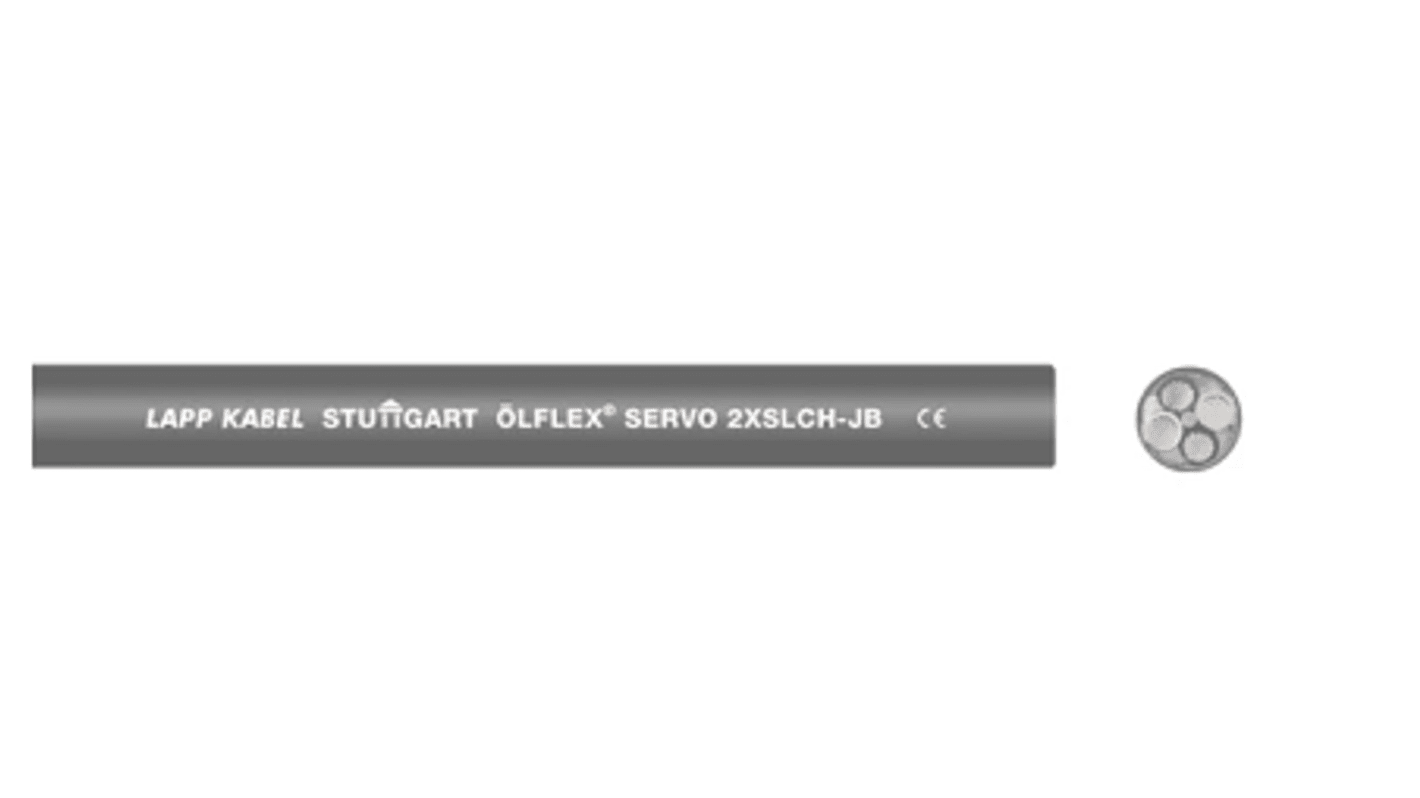

The Lapp control cable has double shielded low capacitance supply cables of flexible design. With halogen free outer sheath and XLPE core insulation. They are ideal for frequency converters operated three phase motors of small medium and large size. The cables are suitable for use in dry and damp rooms. Permanent outdoor use is possible if the indicated temperature range is observed. At room temperature they are largely resistant to acids, alkalis and certain oils. They are suitable for occasional flexible use and fixed installation under normal mechanical stress.

Cable has 4 core with twisted together in one layer

Double screening with aluminium coated plastic foil and braid of tinned copper wires

Halogen free compound

Outer sheath is flexible at low temperatures
