AXINDUS HARMOFLEX Control Cable, 7 Cores, 1.5 mm², H05VV5F, Unscreened, 100m, Grey PVC, type TM5 Sheath, 14 AWG

View all Control Cable

Subtotal (1 reel of 100 metres)*

£708.08

(exc. VAT)

£849.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£708.08£7.081

*price indicative

RS Stock No.:
237-5826
Mfr. Part No.:
H1070150
Brand:
AXINDUS
Find similar products by selecting one or more attributes.
Select all

Brand

AXINDUS

Series

HARMOFLEX

Number of Cores

7

Cross Sectional Area

1.5 mm²

American Wire Gauge

14 AWG

Conductor Material

Bare Copper

Sheath Material

PVC, type TM5

Sheath Colour

Grey

Control Cable Type

H05VV5F

Screened/Unscreened

Unscreened

Screen Type

Unscreened

Outer Diameter

11.3 → 14.1mm

Length

100m

Voltage Rating

300/500 V

Current Rating

18 A

Standards Met

Euroclass Eca

CPR Certification

Eca

Maximum Operating Temperature

+70°C

Fire Behaviour

Flame Retardant NF C 32-070/C2, IEC 60332-1

Minimum Operating Temperature

-40°C

Oil Resistant

Yes

Cable Shape

Multi-Conductor

Earth Cable

Yes

Insulation Material

PVC

COO (Country of Origin):
TR

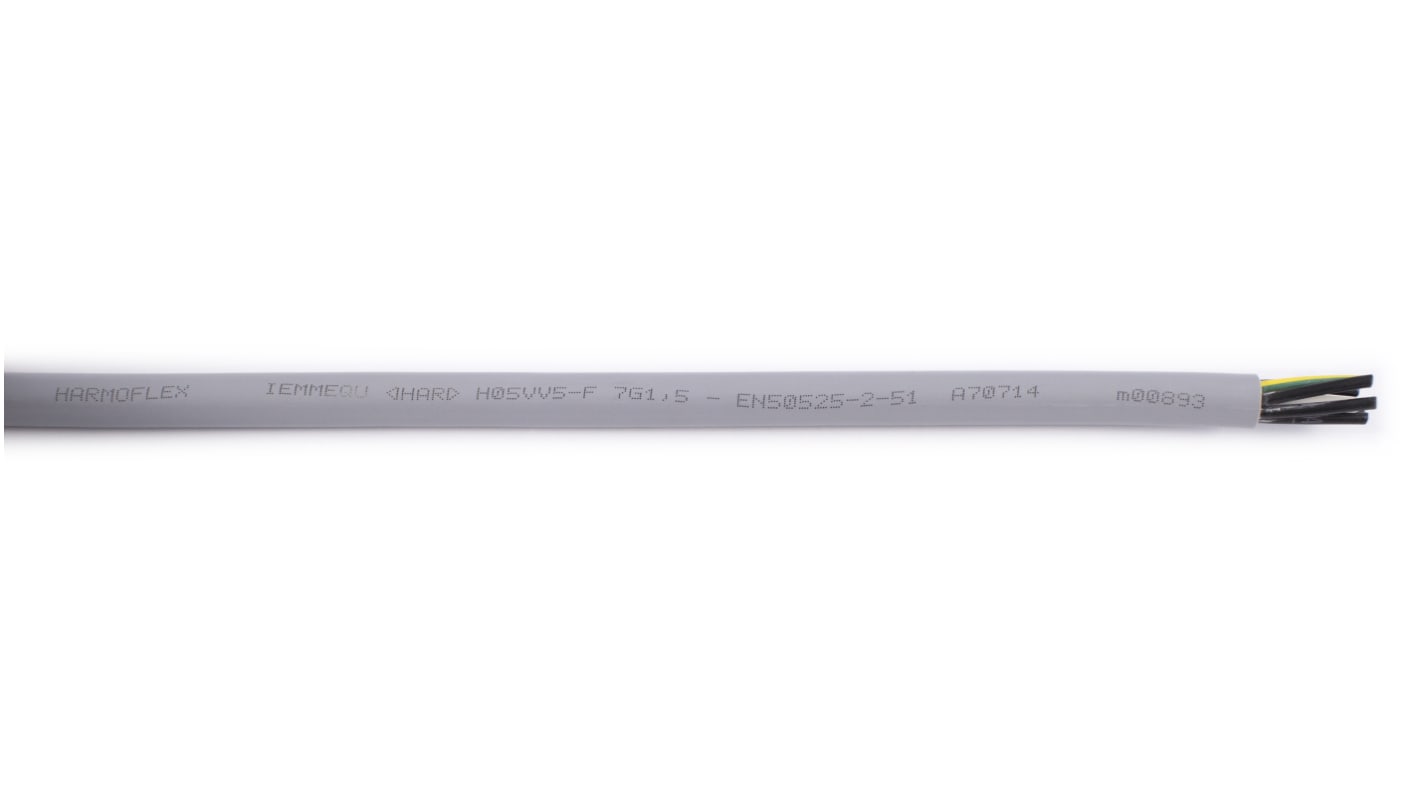

The CAE Groupe HARMOFLEX-H05VV5-F series 7-core Actuator/Sensor Cable has a cross-section area of 1.5mm². The cable has bare copper stranded conductor with grey PVC type TI2 core insulation and outer sheath of PVC type TM5. It has rated voltage of 300V/500V and testing voltage of 2000V.

Flame retardant
Minimum bending radius of 5 x d(fixed)
Operating temperature range between -40°C and +70°C
