- RS Stock No.:
- 237-5797
- Mfr. Part No.:
- 1050150
- Brand:
- AXINDUS
7 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Reel of 100 Metre(s)
£292.06
(exc. VAT)
£350.47
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £292.06 | £2.921 |
| *price indicative | ||
- RS Stock No.:
- 237-5797
- Mfr. Part No.:
- 1050150
- Brand:
- AXINDUS
Technical Reference
Legislation and Compliance
Product Details

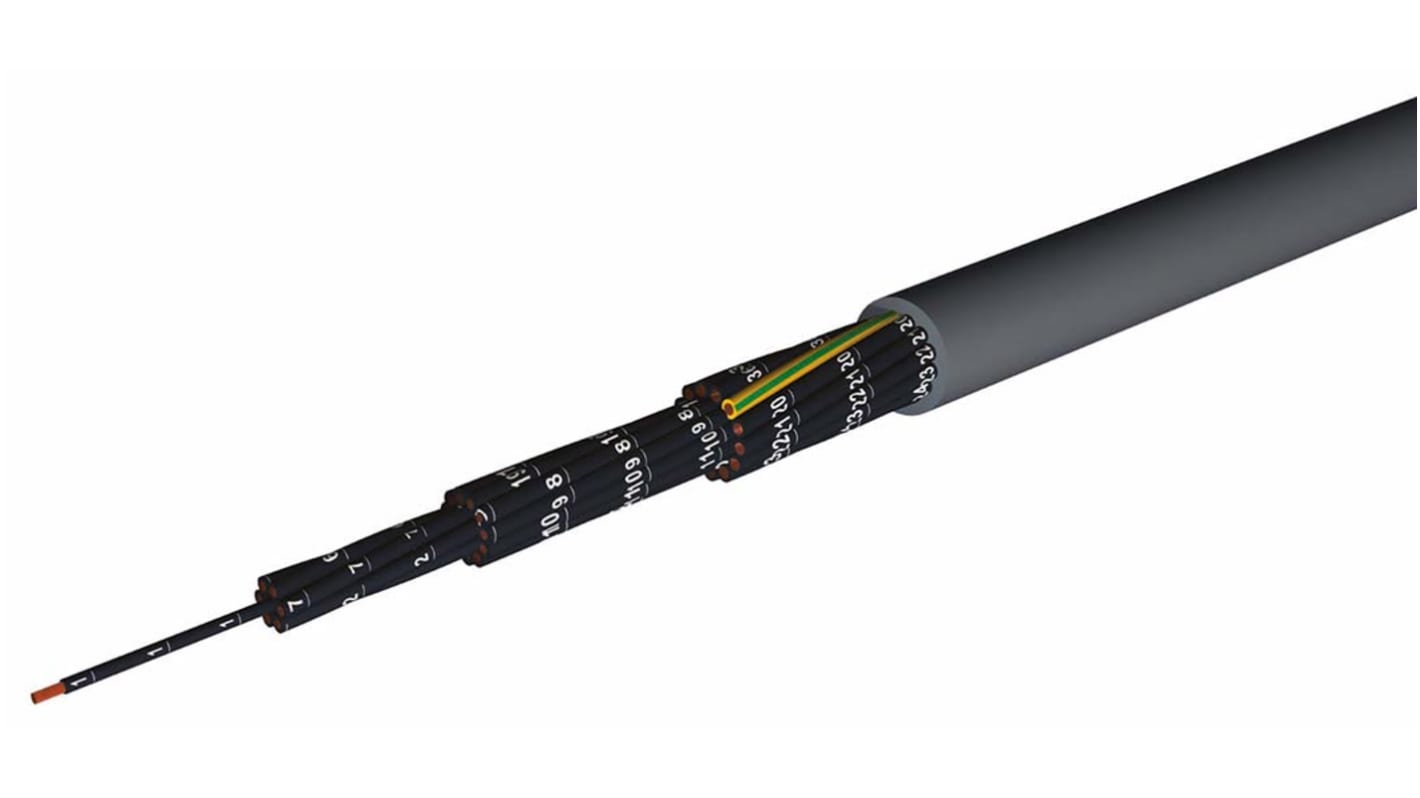

The CAE Groupe CAELIFLEX series 5-core Actuator/Sensor Cable has a cross-section area of 1.5mm². The cable has bare copper stranded conductor with grey PVC core insulation. It has rated voltage of 300V/500V and testing voltage of 4000V.
Flame retardant
Minimum bending radius of 7 x d(fixed)
Operating temperature range between -40°C and +80°C
Minimum bending radius of 7 x d(fixed)
Operating temperature range between -40°C and +80°C
Specifications
Attribute | Value |
|---|---|
| Series | CAELIFLEX |
| Number of Cores | 5 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Unscreened |
| Control Cable Type | YSL/JZ |
| Cable Shape | Multi-Conductor |
| Sheath Colour | Grey |
| American Wire Gauge | 14AWG |
| Outer Diameter | 8mm |
| Sheath Material | PVC |
| Standards Met | Euroclass Eca |
| Oil Resistant | No |
| Minimum Operating Temperature | -40°C |
| Screen Type | Unscreened |
| Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 |
| Earth Cable | Yes |
| Conductor Material | Bare Copper |
| Current Rating | 18A |
| Insulation Material | PVC |
| Maximum Operating Temperature | +70°C |
