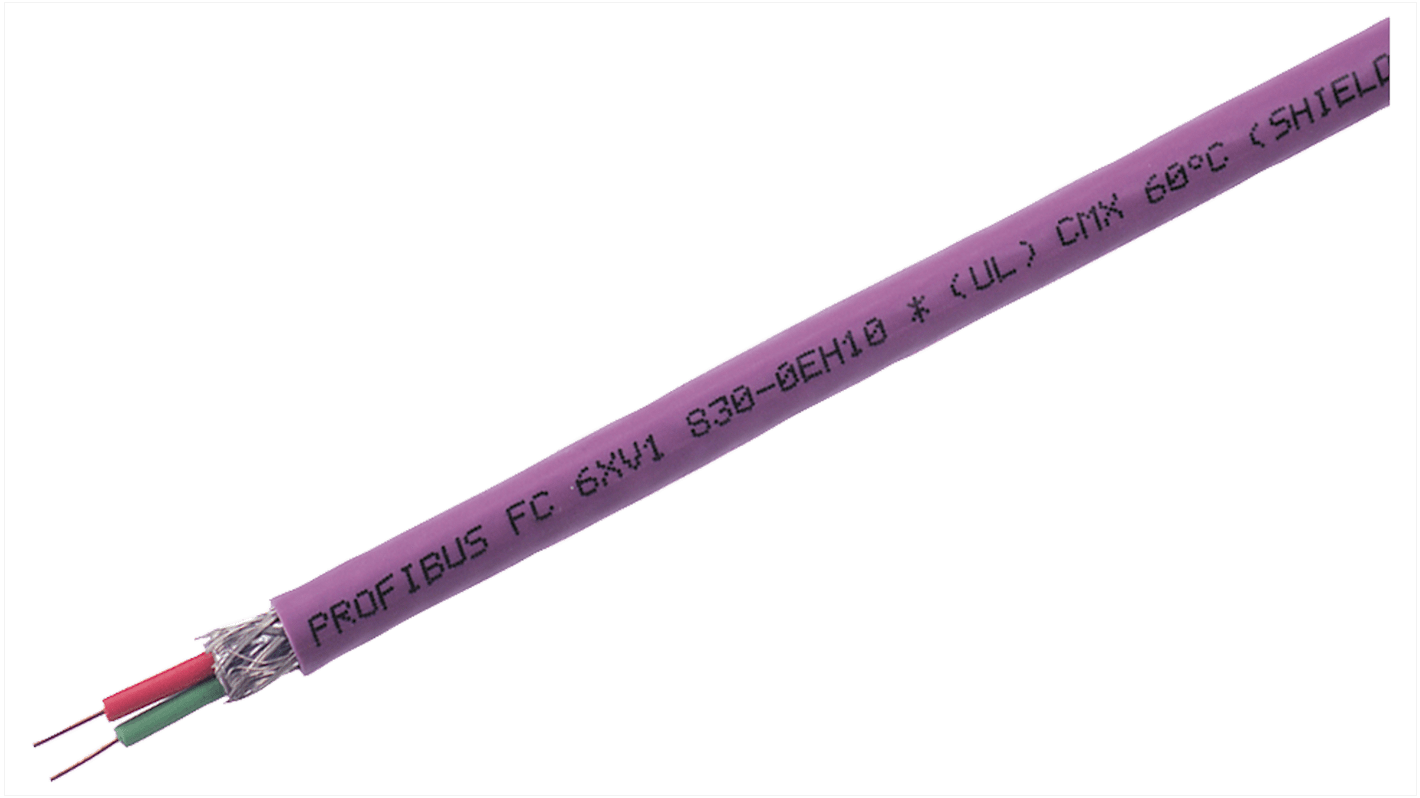

Siemens 6XV18 Multi-Core Industrial Cable, 2 Cores, 50.26 mm², Screened, 500 m, Purple Polyvinyl Chloride Sheath
- RS Stock No.:
- 216-3217
- Mfr. Part No.:
- 6XV1830-0ET50
- Brand:
- Siemens
Subtotal (1 unit)*
£784.77
(exc. VAT)
£941.72
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £784.77 |
*price indicative
- RS Stock No.:
- 216-3217
- Mfr. Part No.:
- 6XV1830-0ET50
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Multi-Core Industrial Cable | |
| Series | 6XV18 | |
| Number of Cores | 2 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Purple | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Cable Length | 500m | |
| Outside Diameter | 8 mm | |
| Voltage | 80 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE, EAC | |
| Hazardous Area Certification | No | |
| Cable CSA | 50.26 mm² | |
| Fire Behaviour | Inflammable | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Multi-Core Industrial Cable | ||
Series 6XV18 | ||
Number of Cores 2 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Purple | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Cable Length 500m | ||
Outside Diameter 8 mm | ||
Voltage 80 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE, EAC | ||
Hazardous Area Certification No | ||
Cable CSA 50.26 mm² | ||
Fire Behaviour Inflammable | ||
- COO (Country of Origin):
- SK
The Siemens 6XV1830-0ET50 is a PROFIBUS FC Standard, bus cable 2-wire, shielded special configuration for Quick assembly 500 m
UV radiation resistant
Silicon-free
