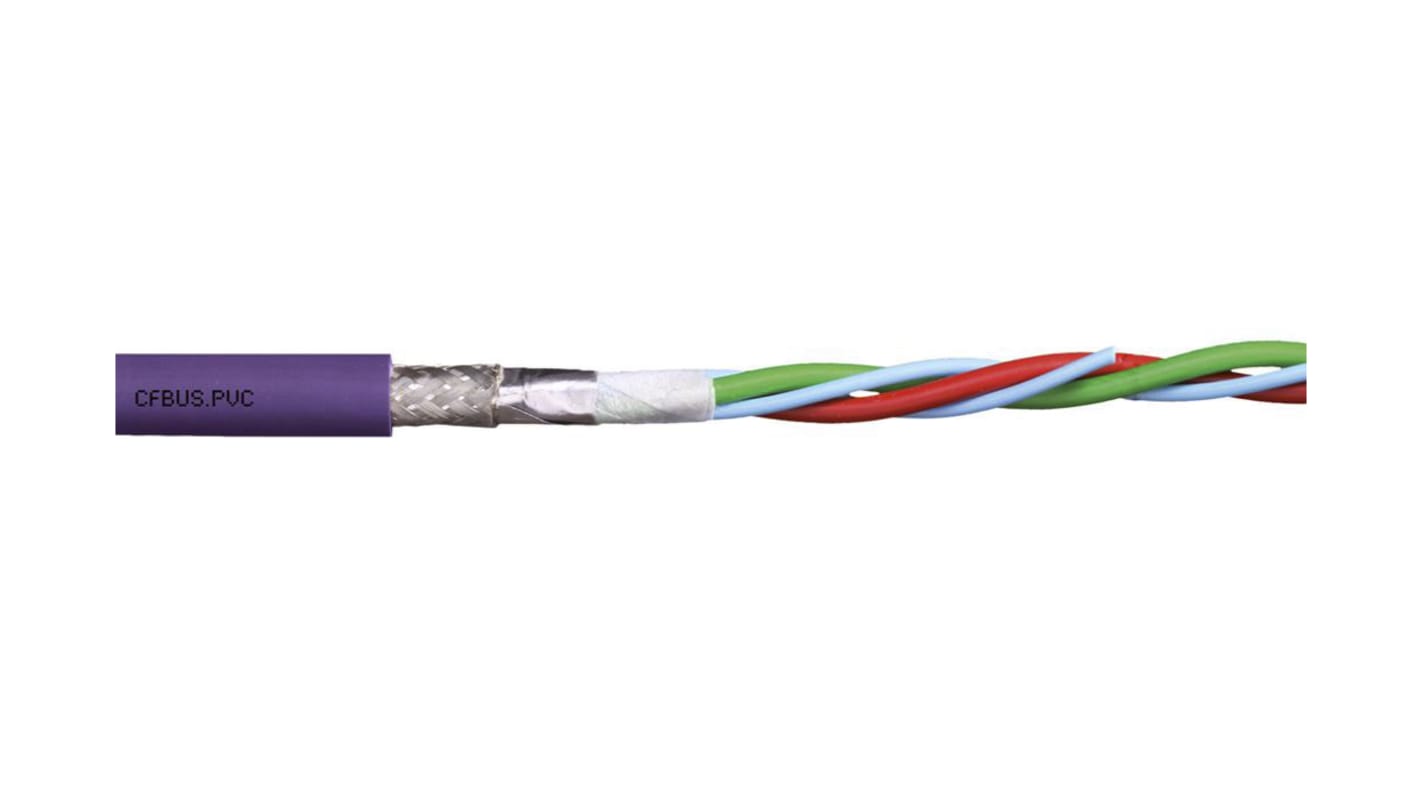

Igus chainflex CFBUS.LB Data Cable, 4 Cores, 0.38 mm², Screened, 25m, Purple PVC Sheath, 21 AWG
- RS Stock No.:
- 185-4939
- Mfr. Part No.:
- CFBUS.PVC.060
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£192.57
(exc. VAT)
£231.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £192.57 | £7.703 |
*price indicative
- RS Stock No.:
- 185-4939
- Mfr. Part No.:
- CFBUS.PVC.060
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CFBUS.LB | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.38 mm² | |
| American Wire Gauge | 21 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Purple | |
| Screen Type | Tinned Copper Braid | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Minimum Bend Radius | 7 x D | |
| Outer Diameter | 7mm | |
| Length | 25m | |
| Voltage Rating | 50 V | |
| Current Rating | 7 A | |
| Standards Met | CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -5°C | |
| Bedding Material | PVC | |
| Oil Resistant | Yes | |
| Insulation Material | TPE | |
| Earth Cable | No | |
| Cable Shape | Multicore | |
| Conductor Resistance | 59.4 Ω/km | |
| Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CFBUS.LB | ||
Number of Cores 4 | ||
Cross Sectional Area 0.38 mm² | ||
American Wire Gauge 21 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Purple | ||
Screen Type Tinned Copper Braid | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Minimum Bend Radius 7 x D | ||
Outer Diameter 7mm | ||
Length 25m | ||
Voltage Rating 50 V | ||
Current Rating 7 A | ||
Standards Met CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -5°C | ||
Bedding Material PVC | ||
Oil Resistant Yes | ||
Insulation Material TPE | ||
Earth Cable No | ||
Cable Shape Multicore | ||
Conductor Resistance 59.4 Ω/km | ||
- COO (Country of Origin):
- DE
Outer jacket: PVC
Overall shield
Flame retardant
UV-resistant
Application
For medium duty use
Minor oil influence
More suitable for indoor applications, but also for outdoor use at temperatures > 5 °C
Unsupported travel distances and up to 20 m for gliding applications
Bus connection cable for machining units/machine tools, handling, indoor cranes
Overall shield
Flame retardant
UV-resistant
Application
For medium duty use
Minor oil influence
More suitable for indoor applications, but also for outdoor use at temperatures > 5 °C
Unsupported travel distances and up to 20 m for gliding applications
Bus connection cable for machining units/machine tools, handling, indoor cranes
