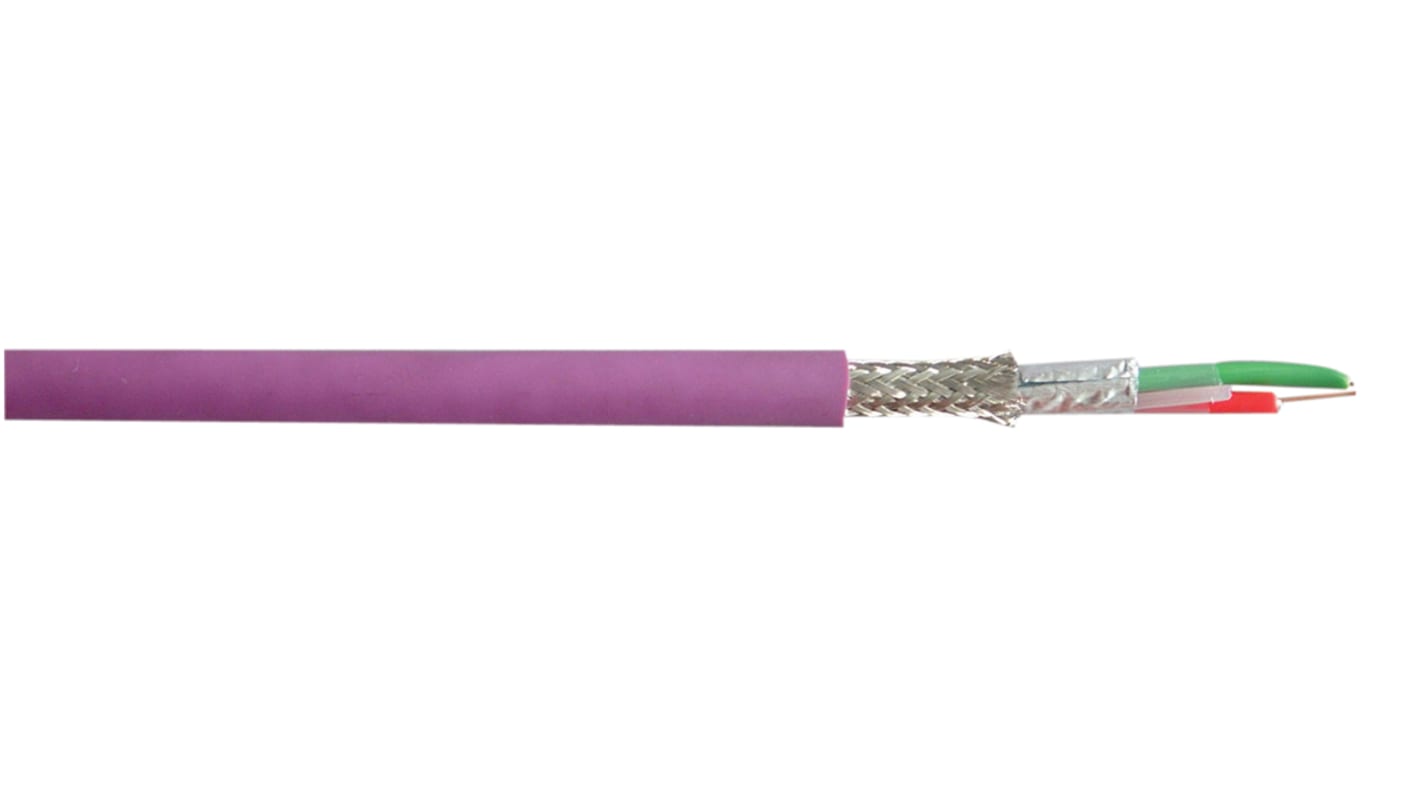

RS PRO Data Cable, 2 Cores, 0.64 mm², Bus, Screened, 100m, Purple PVC Sheath, 22 AWG
- RS Stock No.:
- 136-8220
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£279.22
(exc. VAT)
£335.06
(inc. VAT)
FREE delivery for orders over £50.00
- 4 unit(s) ready to ship from another location
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £279.22 | £2.792 |
*price indicative
- RS Stock No.:
- 136-8220
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.64 mm² | |
| American Wire Gauge | 22 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PVC | |
| Control Cable Type | Bus | |
| Sheath Colour | Purple | |
| Screened/Unscreened | Screened | |
| Screen Type | Tinned Copper Braid | |
| Outer Diameter | 7.2mm | |
| Minimum Bend Radius | 15 x 7.2 | |
| Length | 100m | |
| Voltage Rating | 300 V | |
| Standards Met | IEC 60332-1, NF C 32-070/C2 | |
| Maximum Operating Temperature | +50 (Moved) °C, +70 (Fixed) °C | |
| Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 | |
| Drain Wire | Yes | |
| Minimum Operating Temperature | -30 (Fixed) °C, -5 (Moved) °C | |
| Oil Resistant | No | |
| Cable Shape | Twisted Pair | |
| Insulation Material | PVC | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 2 | ||
Cross Sectional Area 0.64 mm² | ||
American Wire Gauge 22 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Control Cable Type Bus | ||
Sheath Colour Purple | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Outer Diameter 7.2mm | ||
Minimum Bend Radius 15 x 7.2 | ||
Length 100m | ||
Voltage Rating 300 V | ||
Standards Met IEC 60332-1, NF C 32-070/C2 | ||
Maximum Operating Temperature +50 (Moved) °C, +70 (Fixed) °C | ||
Fire Behaviour Flame Retardant NF C 32-070/C2, IEC 60332-1 | ||
Drain Wire Yes | ||
Minimum Operating Temperature -30 (Fixed) °C, -5 (Moved) °C | ||
Oil Resistant No | ||
Cable Shape Twisted Pair | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- IT
RS Pro CBus Cable
Features and Benefits
PVC core insulation
Shielded
Flame retardant
PVC outer sheath
Standards
