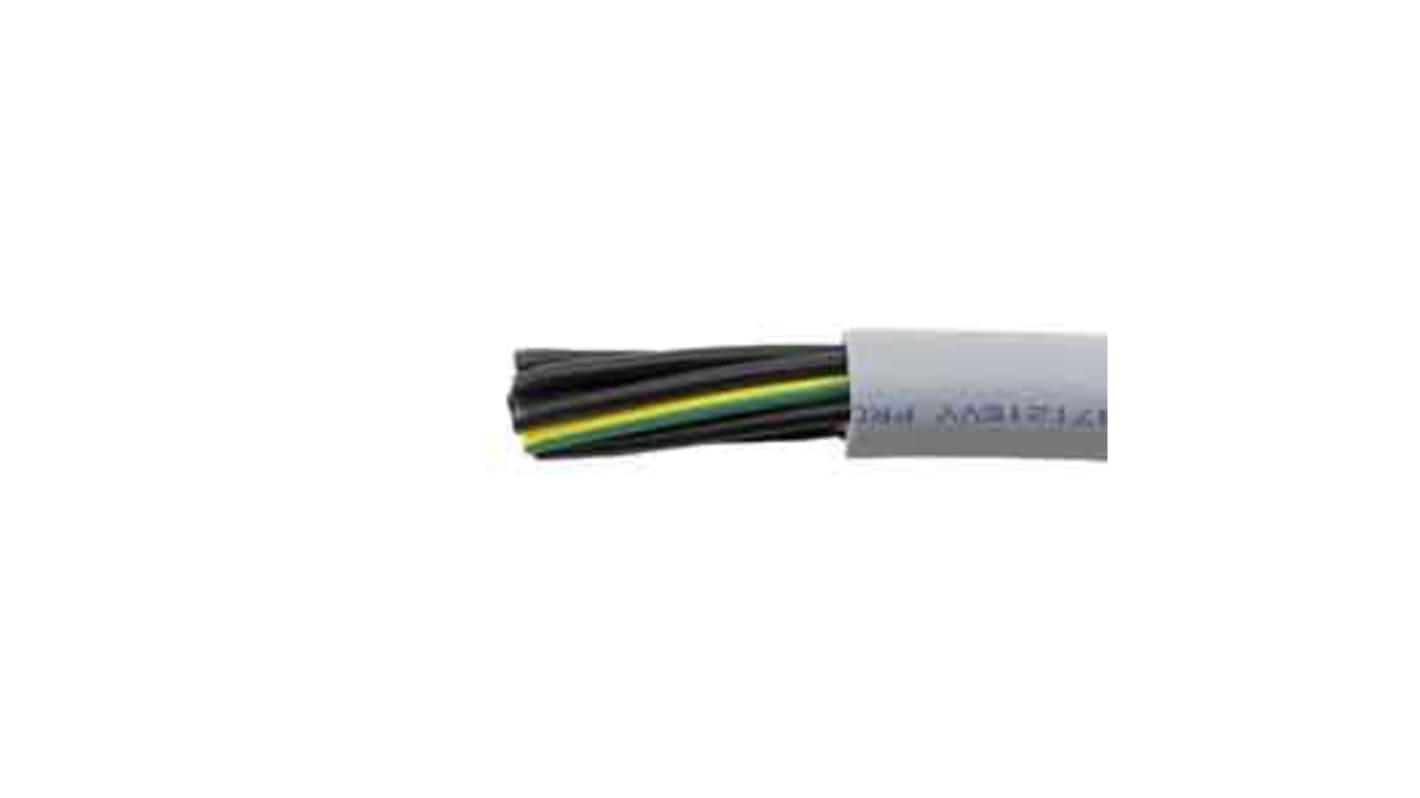

Alpha Wire Pro-Met Control Cable, 9 Cores, 1.5 mm², YY, Unscreened, 100m, Grey PVC Sheath
- RS Stock No.:
- 181-1843
- Mfr. Part No.:
- 470915YY GE033
- Brand:
- Alpha Wire
Subtotal (1 reel of 100 metres)**
£505.17
(exc. VAT)
£606.20
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | £505.17 | £5.052 |
**price indicative
- RS Stock No.:
- 181-1843
- Mfr. Part No.:
- 470915YY GE033
- Brand:
- Alpha Wire
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Pro-Met | |
| Number of Cores | 9 | |
| Cross Sectional Area | 1.5 mm² | |
| Conductor Material | Bare Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Control Cable Type | YY | |
| Screened/Unscreened | Unscreened | |
| Minimum Bend Radius | 4 x D mm (static), 10 x D mm (dynamic) | |
| Outer Diameter | 1.52mm | |
| Length | 100m | |
| Voltage Rating | 300/500 V | |
| Standards Met | CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006 | |
| Maximum Operating Temperature | (Dynamic) +70 °C, (Static) +80°C | |
| Fire Behaviour | Flame Retardant | |
| Conductor Resistance | 13.3 Ω/km @ 20°C | |
| Oil Resistant | Yes | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | (Dynamic) -30 °C, (Static) -40°C | |
| Core Strands | 28/0.25 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Pro-Met | ||
Number of Cores 9 | ||
Cross Sectional Area 1.5 mm² | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius 4 x D mm (static), 10 x D mm (dynamic) | ||
Outer Diameter 1.52mm | ||
Length 100m | ||
Voltage Rating 300/500 V | ||
Standards Met CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006 | ||
Maximum Operating Temperature (Dynamic) +70 °C, (Static) +80°C | ||
Fire Behaviour Flame Retardant | ||
Conductor Resistance 13.3 Ω/km @ 20°C | ||
Oil Resistant Yes | ||
Insulation Material PVC | ||
Minimum Operating Temperature (Dynamic) -30 °C, (Static) -40°C | ||
Core Strands 28/0.25 mm | ||
