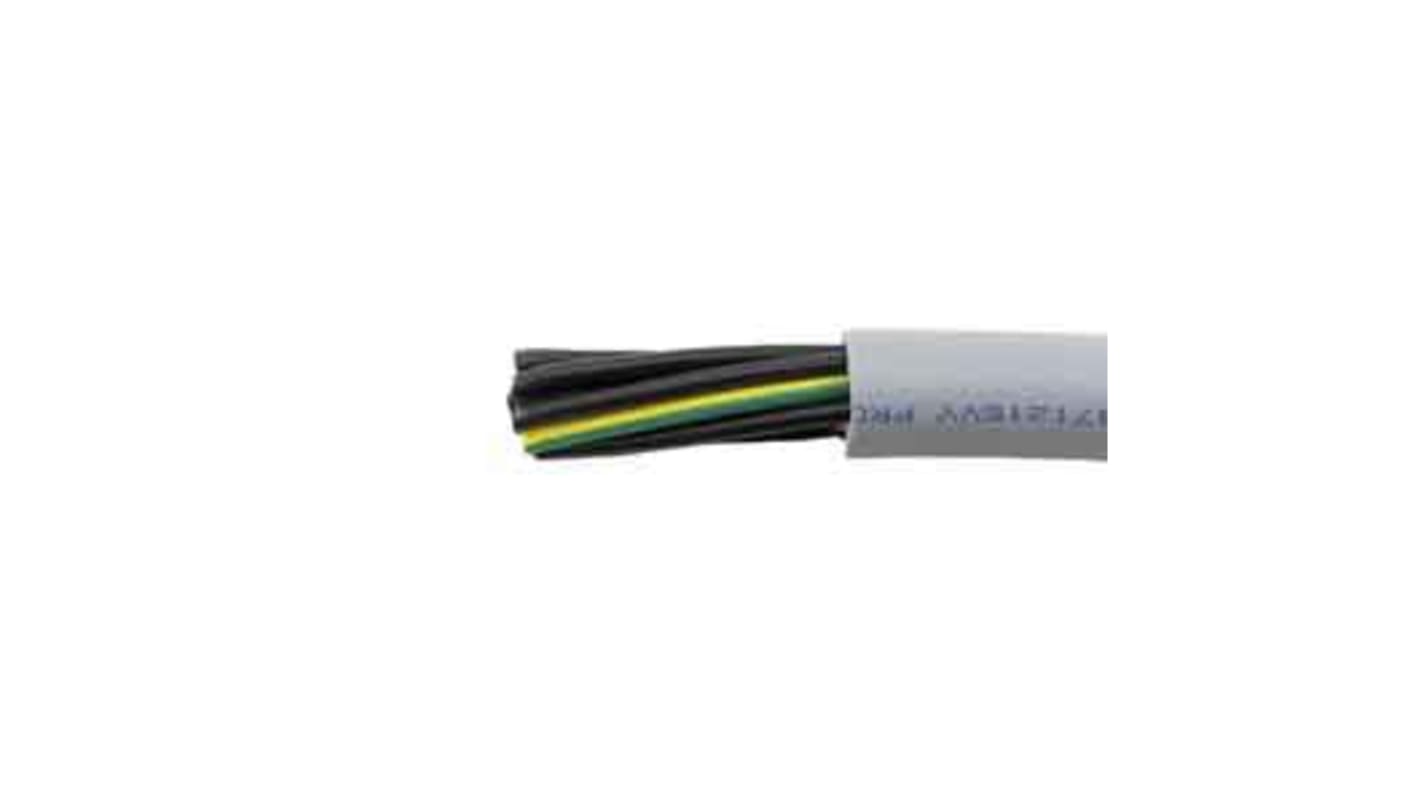

Alpha Wire Pro-Met Control Cable, 3 Cores, 1.5 mm², YY, Unscreened, 100m, Grey PVC Sheath

View all Control Cable

Subtotal (1 reel of 100 metres)*

£186.93

(exc. VAT)

£224.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£186.93£1.869

*price indicative

RS Stock No.:
181-1819
Mfr. Part No.:
470315YY GE033
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

Pro-Met

Number of Cores

3

Cross Sectional Area

1.5 mm²

Conductor Material

Bare Copper

Sheath Material

PVC

Sheath Colour

Grey

Control Cable Type

YY

Screened/Unscreened

Unscreened

Length

100m

Outer Diameter

1.52mm

Minimum Bend Radius

Static - 4 x D, Dynamic - 10 x D

Voltage Rating

300/500 V

Standards Met

CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

(Dynamic) +70 °C, (Static) +80°C

Insulation Material

PVC

Core Strands

28/0.25 mm

Minimum Operating Temperature

(Dynamic) -30 °C, (Static) -40°C

Conductor Resistance

13.3 Ω/km @ 20°C
