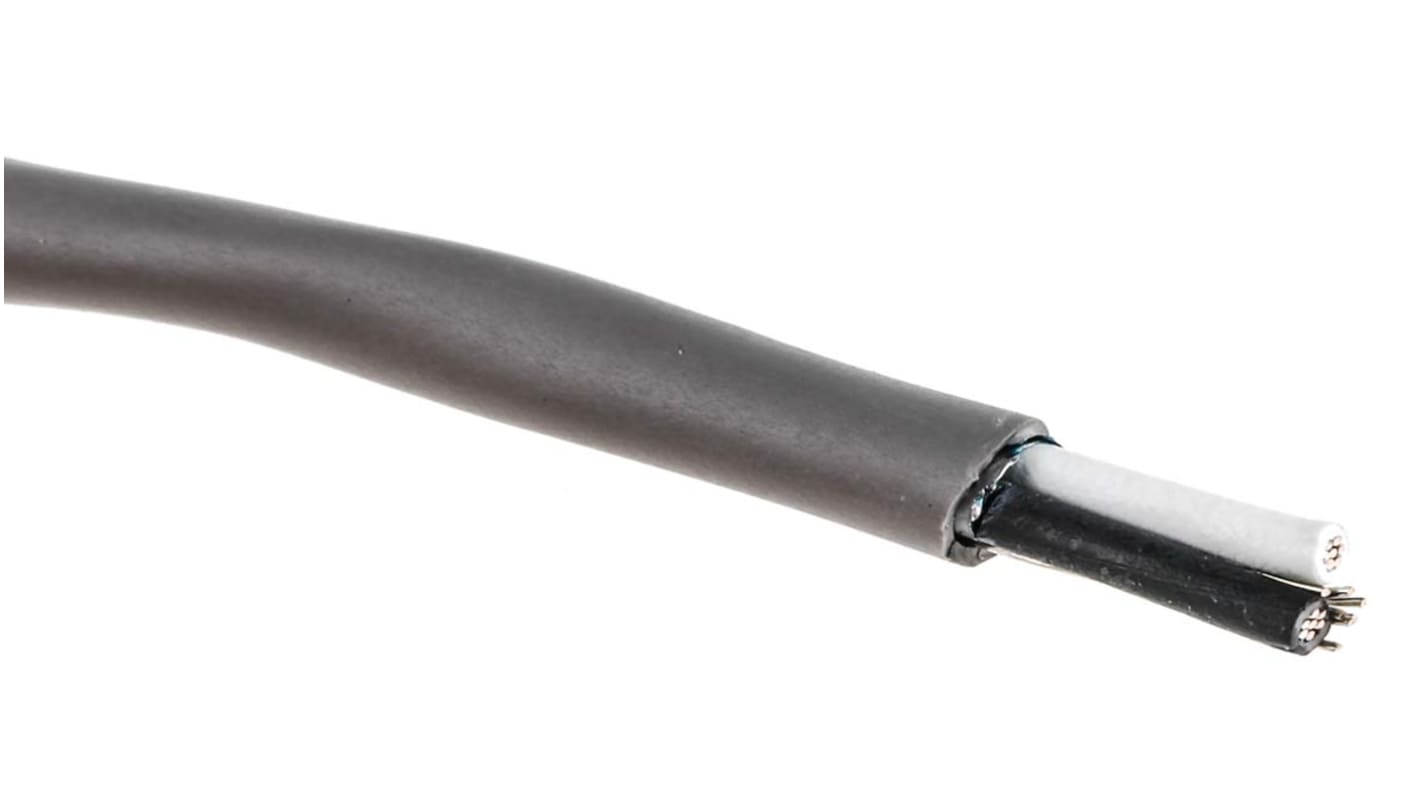

Alpha Wire Alpha Essentials Communication & Control Control Cable, 2 Cores, 0.56 mm², DEF STAN, Screened, 100m, Grey
- RS Stock No.:
- 168-1616
- Mfr. Part No.:
- 2411C SL033
- Brand:
- Alpha Wire
Subtotal (1 reel of 100 metres)*
£130.40
(exc. VAT)
£156.48
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 02 December 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £130.40 | £1.304 |
*price indicative
- RS Stock No.:
- 168-1616
- Mfr. Part No.:
- 2411C SL033
- Brand:
- Alpha Wire
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Series | Alpha Essentials Communication & Control | |
Number of Cores | 2 | |
Cross Sectional Area | 0.56 mm² | |
American Wire Gauge | 20 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | DEF STAN | |
Screen Type | Foil | |
Screened/Unscreened | Screened | |
Armoured | No | |
Minimum Bend Radius | 10 x Diameter | |
Length | 100m | |
Outer Diameter | 4.67mm | |
Voltage Rating | 300 V | |
Standards Met | CE, CSA, UL | |
Maximum Operating Temperature | +75°C | |
Cable Shape | Twisted | |
Conductor Resistance | 33.46 Ω/km | |
Earth Cable | No | |
Core Strands | 7/0.32 mm | |
Insulation Material | PE | |
Oil Resistant | No | |
Minimum Operating Temperature | -20°C | |
Drain Wire | Yes | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 2 | ||
Cross Sectional Area 0.56 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type DEF STAN | ||
Screen Type Foil | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Minimum Bend Radius 10 x Diameter | ||
Length 100m | ||
Outer Diameter 4.67mm | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +75°C | ||
Cable Shape Twisted | ||
Conductor Resistance 33.46 Ω/km | ||
Earth Cable No | ||
Core Strands 7/0.32 mm | ||
Insulation Material PE | ||
Oil Resistant No | ||
Minimum Operating Temperature -20°C | ||
Drain Wire Yes | ||
RoHS Status: Exempt
Belden Alpha Essentials Communication & Control Series Control Cable, 2 Cores, 0.56 mm² - 2411C SL033
Features & Benefits
• Maximum operating temperature of +75°C enhances installation flexibility
• Flexible twisted pair construction improves installation in tight spaces
• 20 AWG cable specification offers ample conductivity for control tasks
• Environmentally resistant PVC sheath provides protection against abrasion
• Voltage rating of 300V ensures safe operation for industrial applications
Applications
• Suitable for remote circuit controls and telecommunications equipment
• Used in low-voltage circuits requiring reliable signal integrity
• Ideal for instrumentation systems within electrical installations
What are the benefits of using screened cabling in control applications?
How does the cable's flexibility aid in installation?
What is the significance of the cross-sectional area in cable performance?
What impact does the maximum operating temperature have on cable usage?
How does the PVC insulation contribute to the longevity of the cable?
