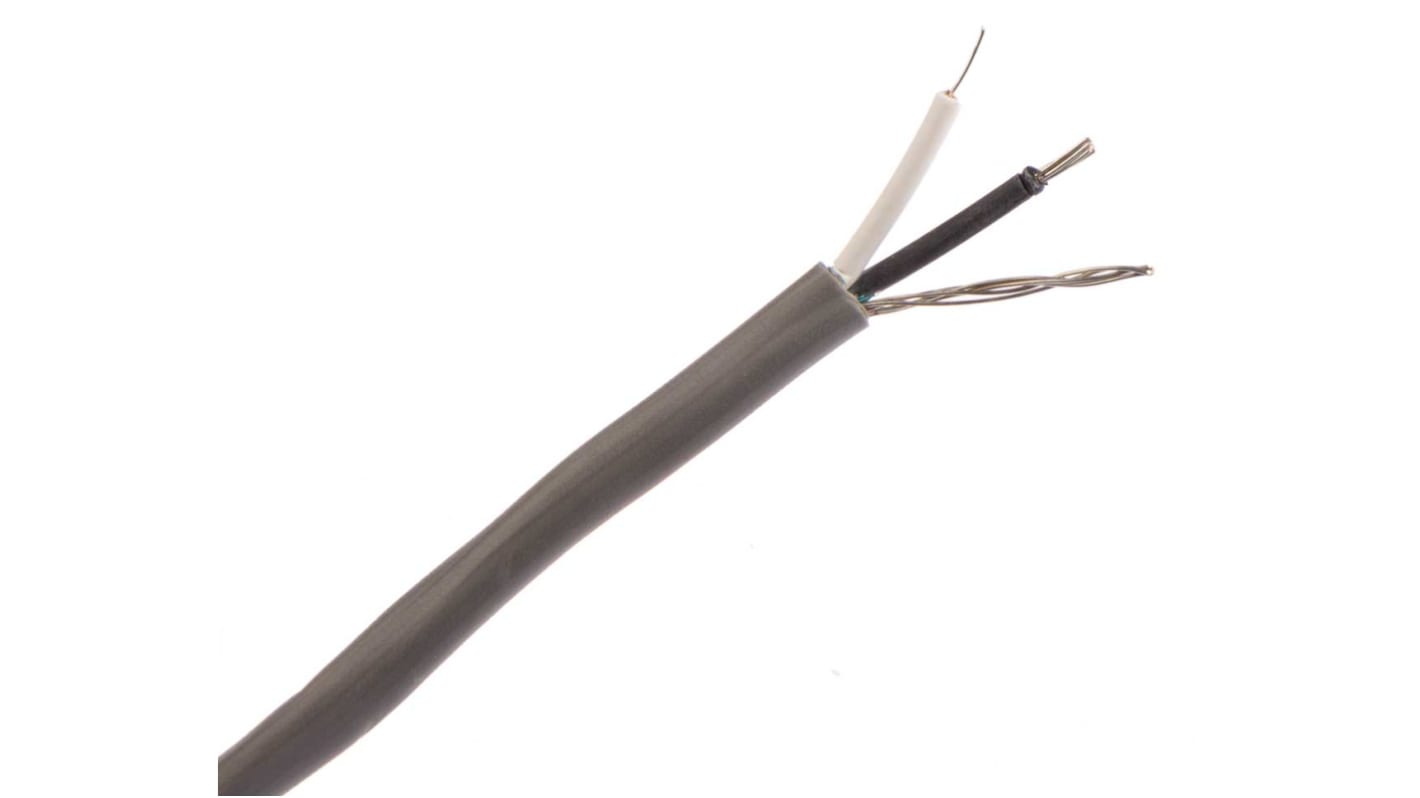

Alpha Wire Alpha Essentials Communication & Control Control Cable, 2 Cores, 0.56 mm², Screened, 30m, Grey PVC Sheath,
- RS Stock No.:
- 111-9183
- Distrelec Article No.:
- 300-83-034
- Mfr. Part No.:
- 2411C SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£44.49
(exc. VAT)
£53.39
(inc. VAT)
FREE delivery for orders over £50.00
- 5 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 02 December 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £44.49 | £1.483 |
*price indicative
- RS Stock No.:
- 111-9183
- Distrelec Article No.:
- 300-83-034
- Mfr. Part No.:
- 2411C SL005
- Brand:
- Alpha Wire
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Series | Alpha Essentials Communication & Control | |
Number of Cores | 2 | |
Cross Sectional Area | 0.56 mm² | |
American Wire Gauge | 20 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screen Type | Foil | |
Screened/Unscreened | Screened | |
Armoured | No | |
Outer Diameter | 4.67mm | |
Length | 30m | |
Minimum Bend Radius | 10 x Diameter | |
Voltage Rating | 300 V | |
Standards Met | CE, CSA, UL | |
Maximum Operating Temperature | +75°C | |
Core Strands | 7/0.32 mm | |
Earth Cable | No | |
Drain Wire | Yes | |
Insulation Material | PE | |
Cable Shape | Round | |
Conductor Resistance | 33.46 Ω/km | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 2 | ||
Cross Sectional Area 0.56 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Foil | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Outer Diameter 4.67mm | ||
Length 30m | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +75°C | ||
Core Strands 7/0.32 mm | ||
Earth Cable No | ||
Drain Wire Yes | ||
Insulation Material PE | ||
Cable Shape Round | ||
Conductor Resistance 33.46 Ω/km | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
Belden Alpha Essentials Communication & Control Series Control Cable, 2 Cores, 0.56 mm² - 2411C SL033
Features & Benefits
• Maximum operating temperature of +75°C enhances installation flexibility
• Flexible twisted pair construction improves installation in tight spaces
• 20 AWG cable specification offers ample conductivity for control tasks
• Environmentally resistant PVC sheath provides protection against abrasion
• Voltage rating of 300V ensures safe operation for industrial applications
Applications
• Suitable for remote circuit controls and telecommunications equipment
• Used in low-voltage circuits requiring reliable signal integrity
• Ideal for instrumentation systems within electrical installations
What are the benefits of using screened cabling in control applications?
How does the cable's flexibility aid in installation?
What is the significance of the cross-sectional area in cable performance?
What impact does the maximum operating temperature have on cable usage?
How does the PVC insulation contribute to the longevity of the cable?
