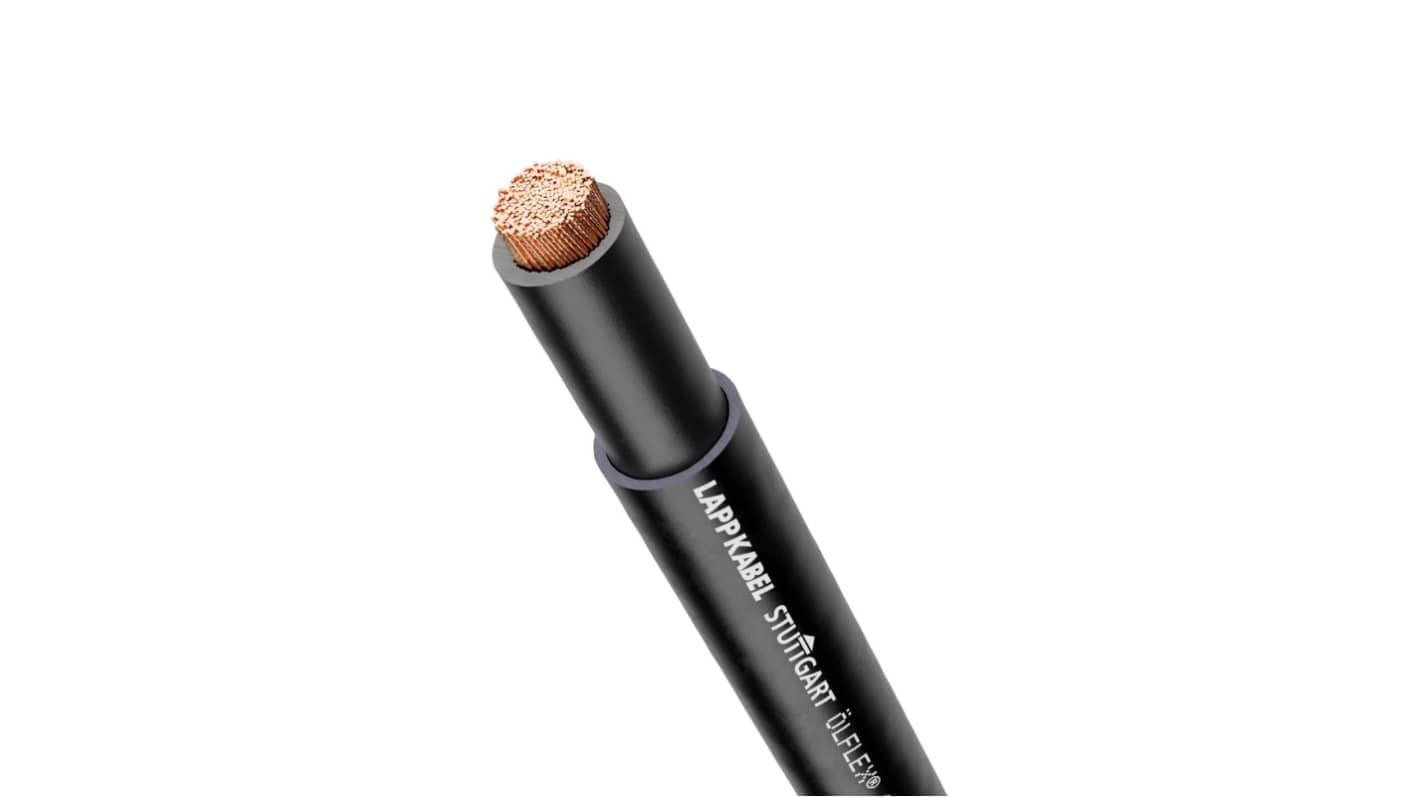

Lapp Olflex Chain 809 Control Cable, 1 Cores, 6 mm² 10 AWG, Unscreened, Jet Black, Black Polyvinyl Chloride Sheath
- RS Stock No.:
- 433-355
- Mfr. Part No.:
- 1062901
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£322.80
(exc. VAT)
£387.36
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £322.80 | £3.228 |
*price indicative
- RS Stock No.:
- 433-355
- Mfr. Part No.:
- 1062901
- Brand:
- Lapp
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | Olflex Chain 809 | |
| Product Type | Control Cable | |
| Number of Cores | 1 | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Jet Black, Black | |
| Screened/Unscreened | Unscreened | |
| Voltage | 1000 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | UL 1581, UL 758 AWM Style 10107, IEC 60332 1 2, IEC 60228, EU Regulation no. 305/2011 (CPR), EU 2014/35/EU, EU 2011/65/EU (RoHS), EN ISO 4892 2 2013, EN 60811, EN 60332 1 2, EN 60228, EN 50620, EN 50618, EN 50525 1, EN 50396, EN 50395, EN 50290 2 22, CSA C22.2 No. 2256, CSA C22.2 No. 210, IEC 60811 | |
| Cable CSA | 6 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 UL VW-1 acc. to UL 1581 § 1080 UL FT2 acc. to UL 1581 § 1100 CSA FT1 acc. to CSA C22.2 No. 2256 § 9.3 | |
| American Wire Gauge | 10AWG | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series Olflex Chain 809 | ||
Product Type Control Cable | ||
Number of Cores 1 | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Jet Black, Black | ||
Screened/Unscreened Unscreened | ||
Voltage 1000 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals UL 1581, UL 758 AWM Style 10107, IEC 60332 1 2, IEC 60228, EU Regulation no. 305/2011 (CPR), EU 2014/35/EU, EU 2011/65/EU (RoHS), EN ISO 4892 2 2013, EN 60811, EN 60332 1 2, EN 60228, EN 50620, EN 50618, EN 50525 1, EN 50396, EN 50395, EN 50290 2 22, CSA C22.2 No. 2256, CSA C22.2 No. 210, IEC 60811 | ||
Cable CSA 6 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 UL VW-1 acc. to UL 1581 § 1080 UL FT2 acc. to UL 1581 § 1100 CSA FT1 acc. to CSA C22.2 No. 2256 § 9.3 | ||
American Wire Gauge 10AWG | ||
- COO (Country of Origin):
- FR
