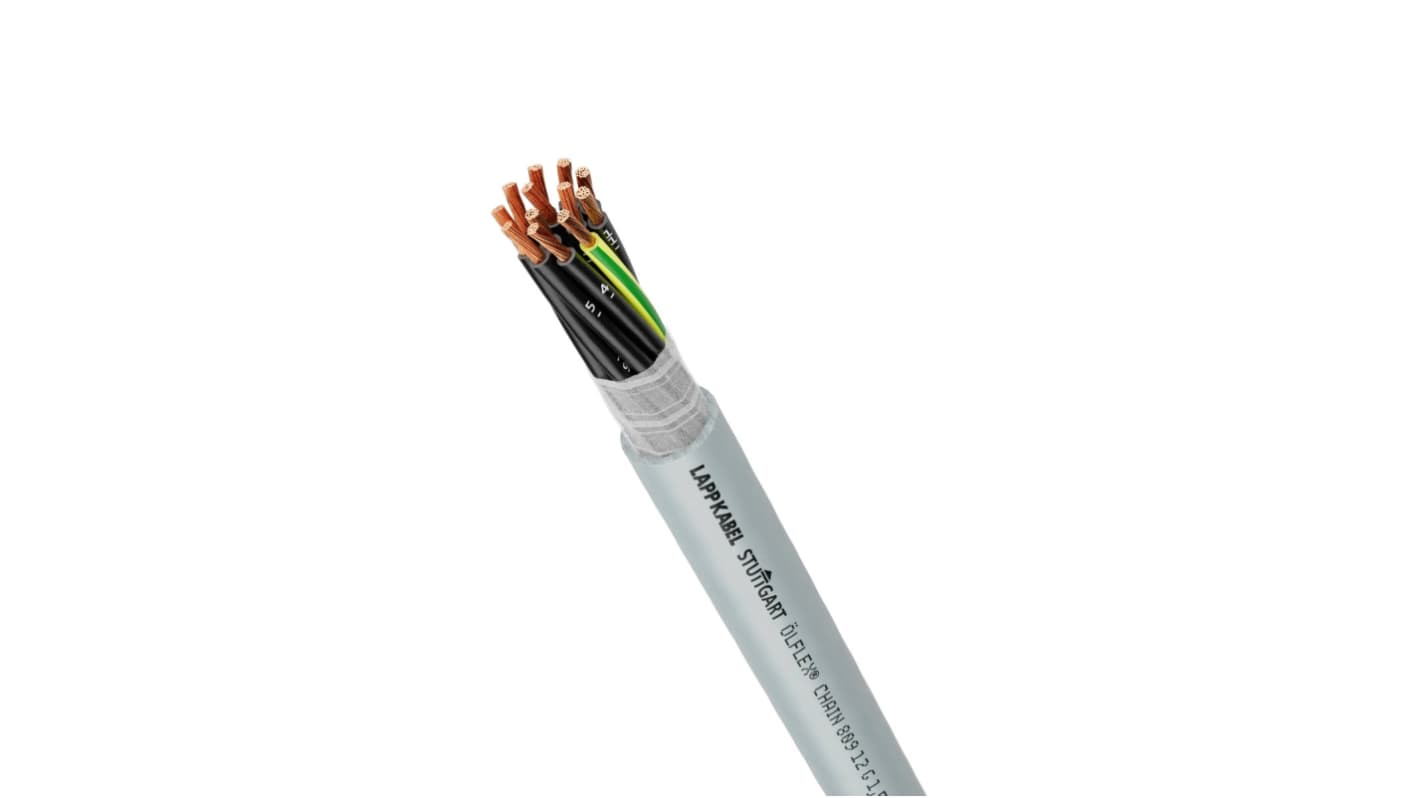

Lapp Olflex Chain 809 Control Cable, 5 Cores, 0.75mm² 19 AWG, Unscreened, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 433-350
- Mfr. Part No.:
- 1026711
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£264.38
(exc. VAT)
£317.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £264.38 | £2.644 |
*price indicative
- RS Stock No.:
- 433-350
- Mfr. Part No.:
- 1026711
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Control Cable | |
| Series | Olflex Chain 809 | |
| Number of Cores | 5 | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | UL 758 AWM Style 20886, EN 50575, EN 50525 2 51, EN 13501 6, CSA C22.2 No. 210 | |
| Maximum Operating Temperature | 80°C | |
| Cable CSA | 0.75mm² | |
| Hazardous Area Certification | NO | |
| American Wire Gauge | 19AWG | |
| Fire Behaviour | UL VW-1 acc. to UL 1581 1080, UL Cable Flame Test acc. to UL 1581 1061, Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2, CSA FT1 acc. to CSA C22.2 No. 2556 §9.3 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Control Cable | ||
Series Olflex Chain 809 | ||
Number of Cores 5 | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Standards/Approvals UL 758 AWM Style 20886, EN 50575, EN 50525 2 51, EN 13501 6, CSA C22.2 No. 210 | ||
Maximum Operating Temperature 80°C | ||
Cable CSA 0.75mm² | ||
Hazardous Area Certification NO | ||
American Wire Gauge 19AWG | ||
Fire Behaviour UL VW-1 acc. to UL 1581 1080, UL Cable Flame Test acc. to UL 1581 1061, Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2, CSA FT1 acc. to CSA C22.2 No. 2556 §9.3 | ||
- COO (Country of Origin):
- FR
The Lapp Cable is a high flexible PVC power and control cable designed for the European, North American, and Canadian markets. It is suitable for flexible use and fixed installation under light or medium mechanical load conditions. The cable can be used in dry, damp, or wet areas. For outdoor use, the indicated temperature range must be observed and UV protection applied. It is largely resistant to acids, alkalis, and certain oils at room temperature.
Maximum tensile load is 15 N/mm² of conductor cross section
Outer sheath made of PVC compound
