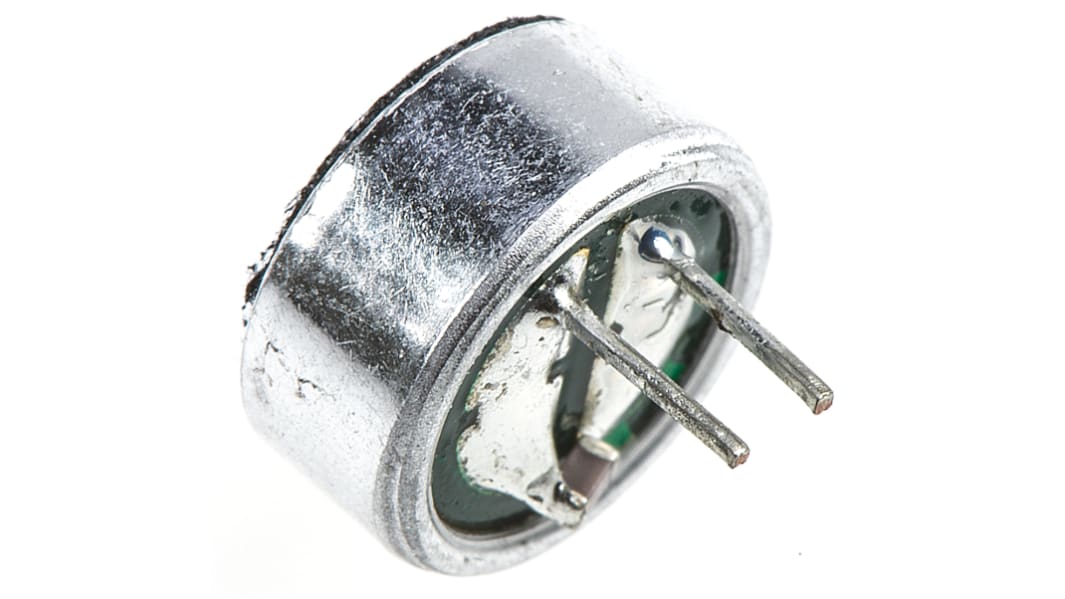

RS PRO Omni-Directional, Through Hole 9.7mm Microphone Condenser -41dB

View this category
Bulk discount available

Subtotal (1 pack of 5 units)*

£3.99

(exc. VAT)

£4.79

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,025 unit(s) ready to ship
  • Plus 1,125 unit(s) ready to ship from another location
  • Plus 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£0.798£3.99
25 - 45£0.702£3.51
50 - 120£0.628£3.14
125 - 245£0.58£2.90
250 +£0.522£2.61

*price indicative

Packaging Options:
RS Stock No.:
724-3134
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Sensitivity

-41dB

Directivity

Omni-Directional

Standard Operating Voltage

1.5V

Mounting Type

Through Hole

Output Impedance

2.2kΩ

Signal to Noise Ratio

60dB

Maximum Supply Current

0.5mA

Dimensions

9.7 (Dia.) x 4.5mm

Diameter

9.7mm

Height

5mm

Maximum Frequency

16kHz

Maximum Operating Temperature

+70°C

Minimum Frequency

50Hz

Minimum Operating Temperature

-20°C

COO (Country of Origin):
CN

RS PRO Omni-Directional 9.7 mm Microphone Condenser -41 dB


Boost the quality of your recorded sound with this omni-directional microphone condenser element from RS PRO. You simply slot the component into place inside your device. It's often found in home and commercial recording studios. This microphone condenser picks up with equal strength whether you're in front, behind or to one side of the mic.
You'll be able to pick up sounds indoors or outside, as this microphone condenser element works in conditions ranging from -20°C to +70°C. It's suitable for capturing even very subtle sounds thanks to its -41 dB sensitivity. For versatility, this component can work from a direct current or a radio frequency. This product is suitable for recording singing and musical instruments.

Features and Benefits


• Dimensions of 9.7 (diameter) x 4.5 mm
• Omni-directional directivity
• Height of 5 mm
• Maximum frequency of 16 kHz
• Maximum operating temperature of +70°C
• Maximum supply current of 0.5 mA
• Minimum frequency of 50 Hz
• Minimum operating temperature of -20°C
• Output impedance of 2.2 kΩ
• Sensitivity of -41 dB
• Signal to noise ratio of 60 dB
• Standard operating voltage of 1.5 V
