Norgren Compact Air Bellows M/31081, 2 convolution , 115mm Stroke
- RS Stock No.:
- 212-9256
- Mfr. Part No.:
- M/31081
- Brand:
- Norgren
Subtotal (1 unit)*
£362.22
(exc. VAT)
£434.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £362.22 |
*price indicative
- RS Stock No.:
- 212-9256
- Mfr. Part No.:
- M/31081
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | M/31000 | |
Nominal Diameter | 152.4mm | |
Number of Convolutions | 2 | |
Stroke | 115mm | |
Installation Height Minimum | 75mm | |
Installation Height Maximum | 130mm | |
Port Connection | G 1/2 | |
Maximum Operating Pressure | 8 bar | |
Cushioning Type | Air | |
Weight | 3kg | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series M/31000 | ||
Nominal Diameter 152.4mm | ||
Number of Convolutions 2 | ||
Stroke 115mm | ||
Installation Height Minimum 75mm | ||
Installation Height Maximum 130mm | ||
Port Connection G 1/2 | ||
Maximum Operating Pressure 8 bar | ||
Cushioning Type Air | ||
Weight 3kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

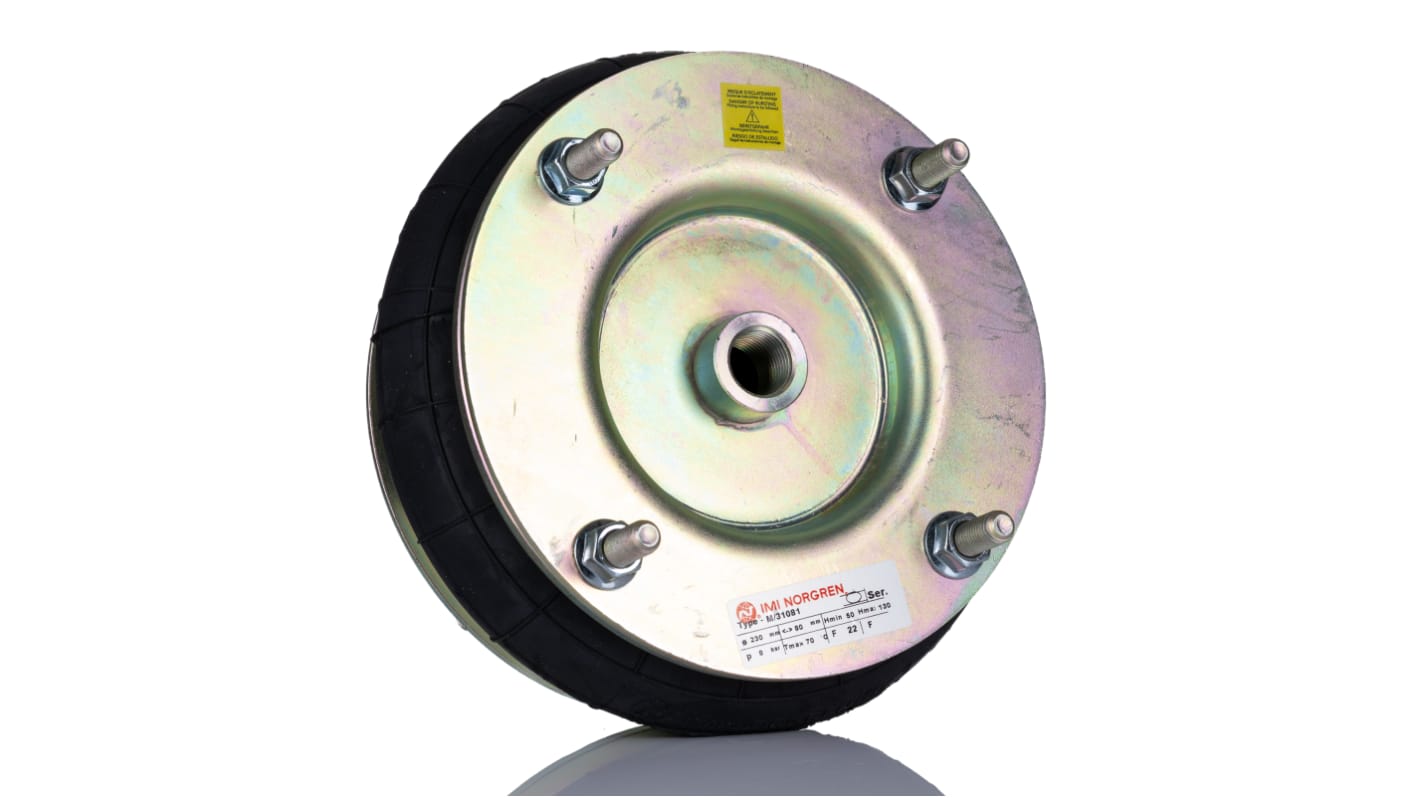

IMI Norgren Compact Air Bellows, 152.4mm Nominal Diameter, 50 to 130mm Installation Height - M/31000 Series - M/31081
Need a solution for raising and lowering loads in your pneumatic system? Try these compact air bellows from IMI Norgren. With a 75mm stroke length, they're ideal for short-stroke applications. The tough SBR rubber-compound body is strong and flexible, delivering reliable long-term performance. Solid end plates are a doddle to fit with standard screw and nut fittings. Since the product has an installation height between 50 and 130mm, you'll have no trouble slotting it into your existing setup. As these air bellows don't need lubricating, there's little maintenance to worry about.
Features & Benefits
• Broad operating temperature range between -40°C and +70°C to handle harsh conditions
• Chrome-plated steel end plates are tough and corrosion-resistant for a long service life
• Standard G1/2 port has wide compatibility with pneumatic pipes and connectors
• Absorbs and isolates vibration, reducing wear and tear on your equipment
• Chrome-plated steel end plates are tough and corrosion-resistant for a long service life
• Standard G1/2 port has wide compatibility with pneumatic pipes and connectors
• Absorbs and isolates vibration, reducing wear and tear on your equipment
Applications
• Scissor lifts
• Machine presses and rollers
• Food processing equipment
• Machine presses and rollers
• Food processing equipment
What's the operating pressure of these compact air bellows?
They operate safely at pressures between 0 and 8 bar, making them suitable for use with low and medium-power pneumatic systems.
