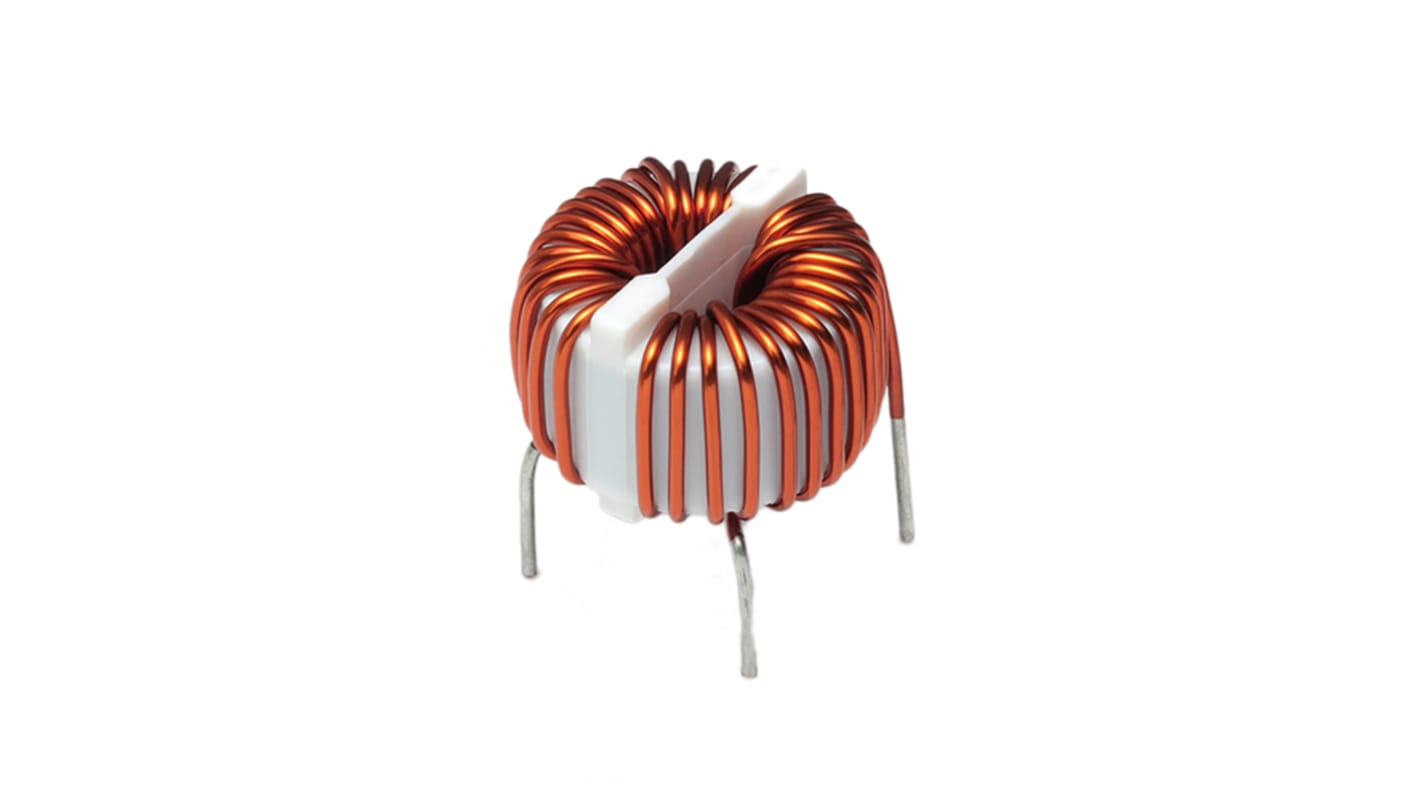

KEMET 50 μH 10 A Common Mode Choke 16 mΩ 250 V
- RS Stock No.:
- 863-3825
- Mfr. Part No.:
- SC-10-D050
- Brand:
- KEMET
Subtotal (1 bag of 5 units)*
£19.80
(exc. VAT)
£23.75
(inc. VAT)
Add 15 units to get free delivery
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 + | £3.96 | £19.80 |
*price indicative
- RS Stock No.:
- 863-3825
- Mfr. Part No.:
- SC-10-D050
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Common Mode Choke | |
| Inductance | 50 μH | |
| Series | SC-D | |
| Maximum DC Current | 10A | |
| Core Material | Nickel Zinc Ferrite | |
| Test Frequency | 100 kHz | |
| Packaging | Tray | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 105°C | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Choke Voltage | 250 V | |
| Standards/Approvals | UL 94 V-2 or V-0 flame retardant rated cap, RoHS | |
| Depth | 23mm | |
| Height | 34mm | |
| Length | 34mm | |
| Termination Style | Solder Pad | |
| Maximum DC Resistance | 16mΩ | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Common Mode Choke | ||
Inductance 50 μH | ||
Series SC-D | ||
Maximum DC Current 10A | ||
Core Material Nickel Zinc Ferrite | ||
Test Frequency 100 kHz | ||
Packaging Tray | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 105°C | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Choke Voltage 250 V | ||
Standards/Approvals UL 94 V-2 or V-0 flame retardant rated cap, RoHS | ||
Depth 23mm | ||
Height 34mm | ||
Length 34mm | ||
Termination Style Solder Pad | ||
Maximum DC Resistance 16mΩ | ||
Kemet SC-D Series High Frequency Type Common Mode Chokes
Kemet SC coils, SC-D AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated currents up to 20 A
DC resistances as low as 8 mΩ
Inductances up to 100 μH
