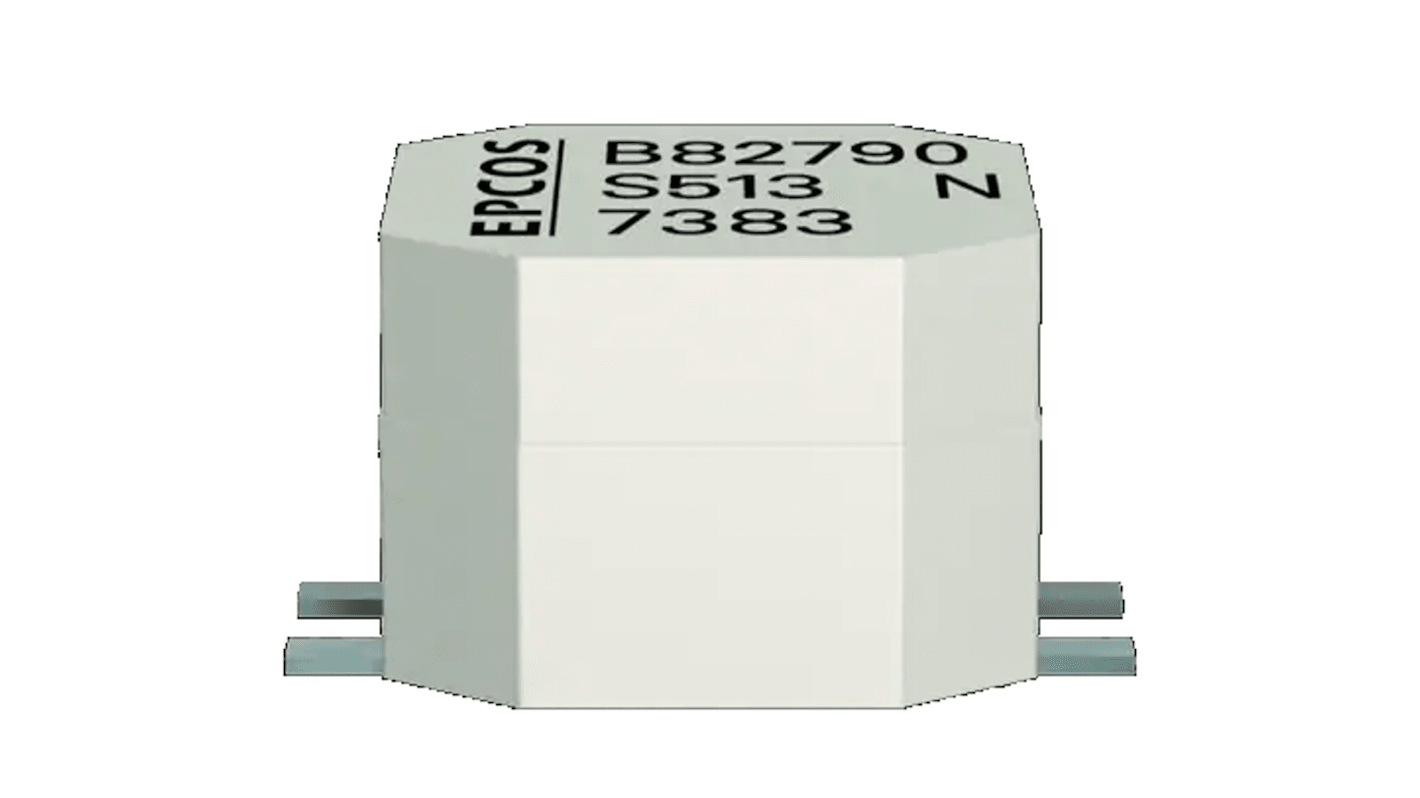

EPCOS 4.7 mH 200 A Common Mode Choke 510 mΩ 42 V
- RS Stock No.:
- 246-9871
- Mfr. Part No.:
- B82790C0475N265
- Brand:
- EPCOS
Subtotal (1 reel of 1500 units)*
£1,704.00
(exc. VAT)
£2,044.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £1.136 | £1,704.00 |
*price indicative
- RS Stock No.:
- 246-9871
- Mfr. Part No.:
- B82790C0475N265
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Common Mode Choke | |
| Inductance | 4.7 mH | |
| Maximum DC Current | 200A | |
| Series | B82790C0/S0 | |
| Core Material | Ferrite | |
| Impedance | 0.51Ω | |
| Test Frequency | 60 Hz | |
| Packaging | Tape & Reel | |
| Maximum Operating Temperature | 60°C | |
| Automotive Standard | AEC-Q200 | |
| Mount Type | Surface | |
| Choke Voltage | 42 V | |
| Pin Count | 4 | |
| Inductance Tolerance | ±30 % | |
| Maximum DC Resistance | 510mΩ | |
| Length | 7.1mm | |
| Depth | 6mm | |
| Standards/Approvals | RoHS | |
| Height | 4.9mm | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Common Mode Choke | ||
Inductance 4.7 mH | ||
Maximum DC Current 200A | ||
Series B82790C0/S0 | ||
Core Material Ferrite | ||
Impedance 0.51Ω | ||
Test Frequency 60 Hz | ||
Packaging Tape & Reel | ||
Maximum Operating Temperature 60°C | ||
Automotive Standard AEC-Q200 | ||
Mount Type Surface | ||
Choke Voltage 42 V | ||
Pin Count 4 | ||
Inductance Tolerance ±30 % | ||
Maximum DC Resistance 510mΩ | ||
Length 7.1mm | ||
Depth 6mm | ||
Standards/Approvals RoHS | ||
Height 4.9mm | ||
- COO (Country of Origin):
- DE
The EPCOS Data and signal line choke is common-mode choke has current-compensated ring core double choke and bifilar winding.
Suitable for reflow soldering
