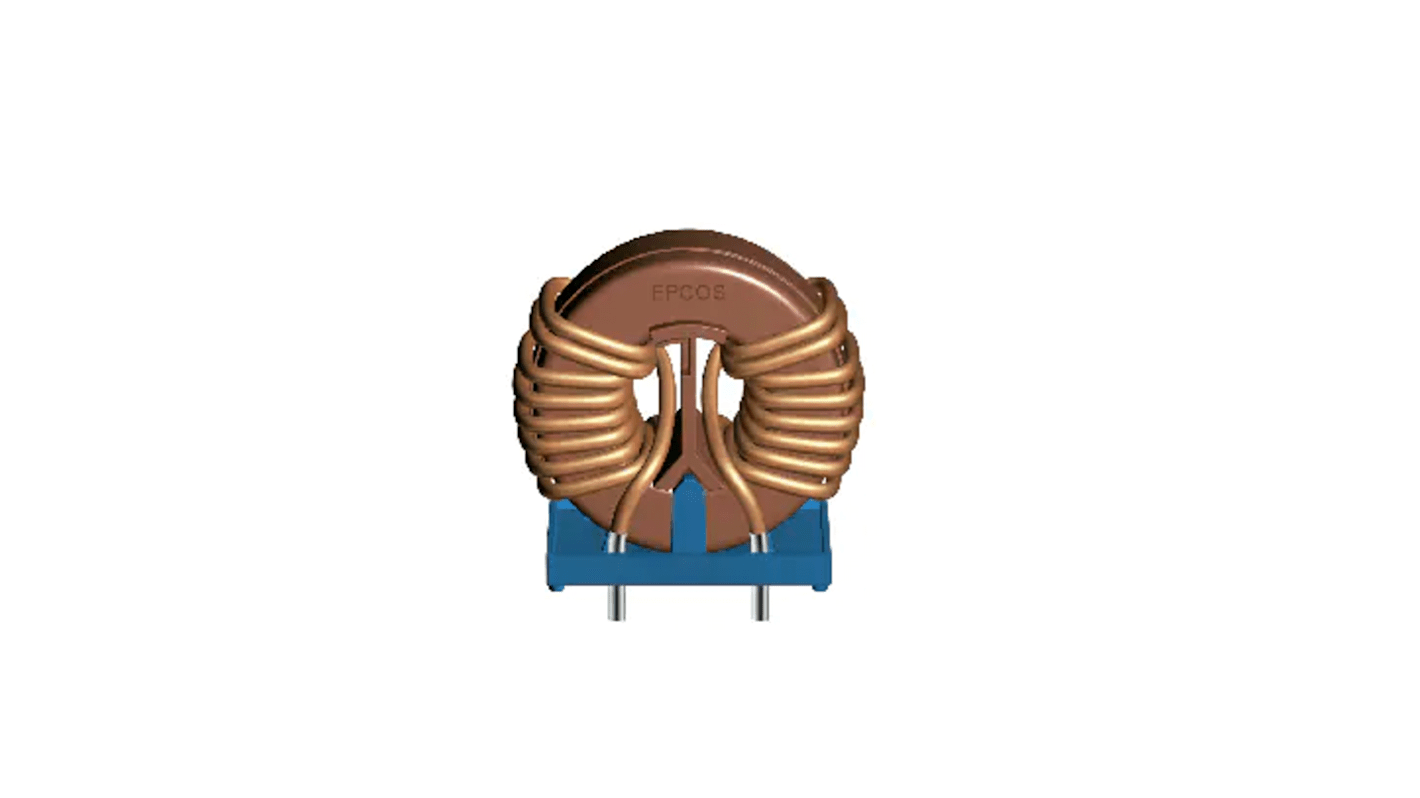

EPCOS 1.5 mH 40 A Common Mode Choke 1.7 mΩ 1000 V dc, 600 V ac
- RS Stock No.:
- 246-9859
- Mfr. Part No.:
- B82727E6403A040
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 unit)*
£21.96
(exc. VAT)
£26.35
(inc. VAT)
Add 3 units to get free delivery
Temporarily out of stock
- 92 unit(s) shipping from 16 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.96 |
| 5 - 9 | £18.64 |
| 10 + | £17.17 |
*price indicative
- RS Stock No.:
- 246-9859
- Mfr. Part No.:
- B82727E6403A040
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1.5 mH | |
| Product Type | Common Mode Choke | |
| Series | B82727E | |
| Maximum DC Current | 40A | |
| Core Material | Ferrite | |
| Impedance | 0.017Ω | |
| Packaging | Cardboard | |
| Test Frequency | 50 Hz | |
| Maximum Operating Temperature | 70°C | |
| Automotive Standard | No | |
| Choke Voltage | 1000 V dc, 600 V ac | |
| Pin Count | 4 | |
| Mount Type | Through Hole | |
| Length | 36mm | |
| Standards/Approvals | UL 1446 Class 155 (F) (E320370) | |
| Height | 45mm | |
| Depth | 26mm | |
| Maximum DC Resistance | 1.7mΩ | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1.5 mH | ||
Product Type Common Mode Choke | ||
Series B82727E | ||
Maximum DC Current 40A | ||
Core Material Ferrite | ||
Impedance 0.017Ω | ||
Packaging Cardboard | ||
Test Frequency 50 Hz | ||
Maximum Operating Temperature 70°C | ||
Automotive Standard No | ||
Choke Voltage 1000 V dc, 600 V ac | ||
Pin Count 4 | ||
Mount Type Through Hole | ||
Length 36mm | ||
Standards/Approvals UL 1446 Class 155 (F) (E320370) | ||
Height 45mm | ||
Depth 26mm | ||
Maximum DC Resistance 1.7mΩ | ||
- COO (Country of Origin):
- HU
The EPCOS Power line choke has current-compensated ring core double choke. It provides insulation for high voltage applications.
Approx. 0.6 ... 0.8% stray inductance for symmetrical interference suppression
Wide range of values due to 3 core sizes
High rated current and rated temperature
Suitable for wave soldering
