Wurth Elektronik 1 mH Common Mode Choke
- RS Stock No.:
- 245-8542
- Mfr. Part No.:
- 744824801
- Brand:
- Wurth Elektronik
25 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 25)
£4.06
(exc. VAT)
£4.87
(inc. VAT)
| Units | Per unit | Per Box* |
| 25 - 25 | £4.06 | £101.50 |
| 50 - 75 | £3.885 | £97.125 |
| 100 + | £3.536 | £88.40 |
| *price indicative | ||
- RS Stock No.:
- 245-8542
- Mfr. Part No.:
- 744824801
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

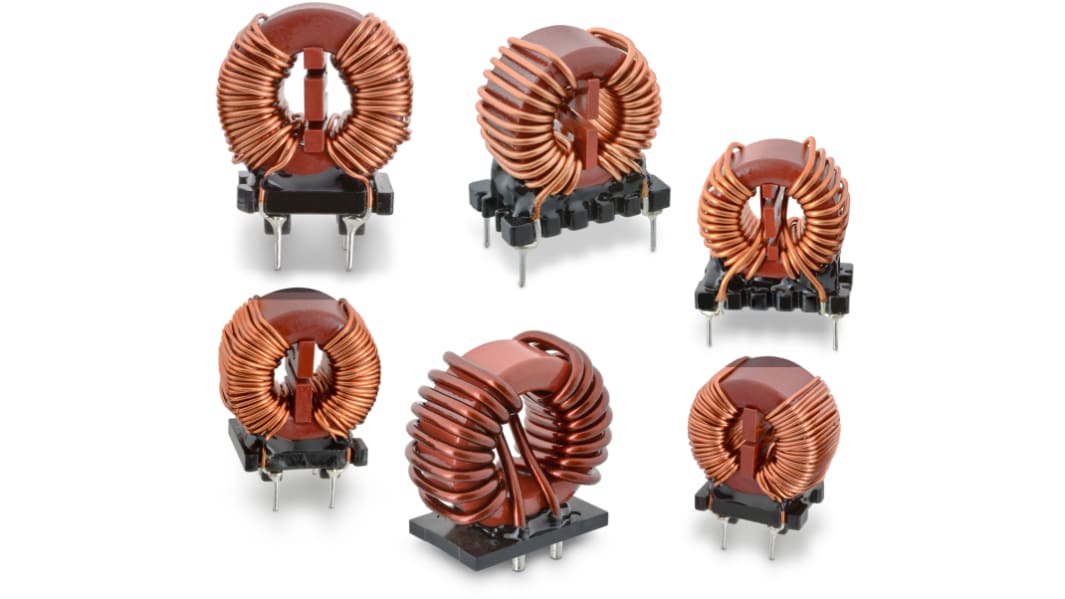

The Wurth Elektroniks common mode power line choke used for mains power line-in and out filter, power electronics. It is also used for filtering of devices without any ground connection, suppression of radio interferences in motors and for suppression of common mode noise. It is made of MnZn.
Broadband filtering due to low capacitance winding technique
High suppression of asymmetrical interferences also at low frequency
Very compact design and high rated current of 7.5 A at 70 °C
DC resistance of 10 mΩ at 20 °C
Operating temperature of -40 ºC to +125 ºC
High suppression of asymmetrical interferences also at low frequency
Very compact design and high rated current of 7.5 A at 70 °C
DC resistance of 10 mΩ at 20 °C
Operating temperature of -40 ºC to +125 ºC
Specifications
Attribute | Value |
|---|---|
| Inductance | 1 mH |
| Series | WE-CMB |
| Test Frequency | 10 kHz |
