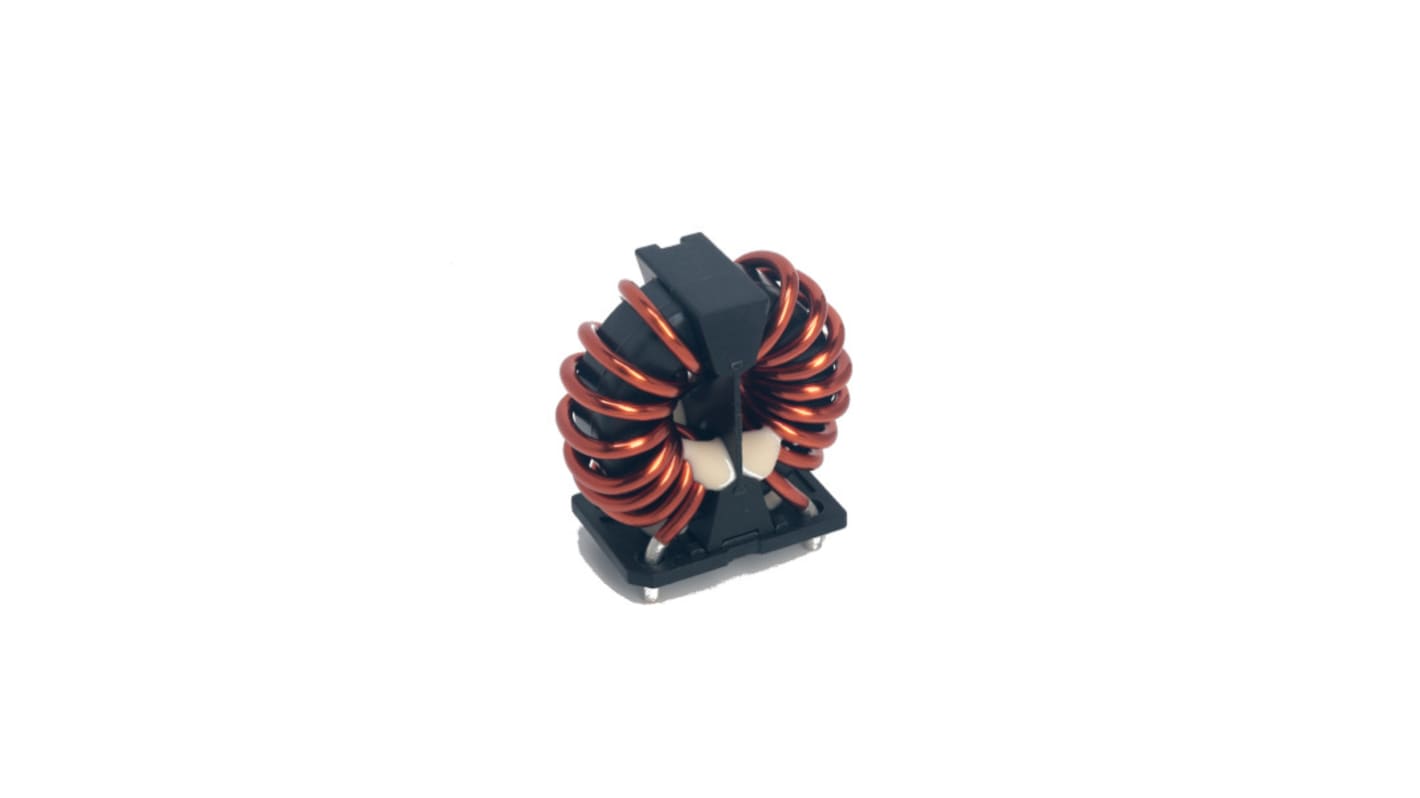

KEMET 1.6 mH 19 A Common Mode Choke 2.98 mΩ 1000 V

View all Common Mode Chokes
Bulk discount available

Subtotal (1 unit)*

£9.91

(exc. VAT)

£11.89

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 68 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£9.91
5 - 9£9.37
10 +£8.84

*price indicative

RS Stock No.:
242-7690
Mfr. Part No.:
SCF25XV-190-1R8A008JV
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

1.6 mH

Product Type

Common Mode Choke

Maximum DC Current

19A

Series

SCF

Core Material

Nickel Zinc Ferrite Core

Test Frequency

40 MHz

Packaging

Tray

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Automotive Standard

AEC-Q200

Mount Type

Through Hole

Pin Count

4

Choke Voltage

1000 V

Inductance Tolerance

-30 to 50 %

Depth

26mm

Length

3.5mm

Maximum DC Resistance

2.98mΩ

Height

35mm

Standards/Approvals

RoHS

The KEMET SCF-XV coils are common mode chokes with a wide variety of characteristics for automotive and harsh environment industrial application. These toroidal coils aredesigned with nanocrystalline metal cores and are useful in various noise countermeasure fields. The effective frequency range varies depending on core shape, size and number of windings. This frequency dependence of the magnetic permeability as shown in the figure serves for reference purposes only and it should be tested on the actualdevice to determine its effectiveness.

Nanocrystalline metal core

High rated voltage up to 1,000 V AC/DC

Operating temperature range from -40°C up to +150°C

Ultra-high inductance

Ultra-high permeability

UL 94 V–0 flame retardant rated base and cap

AEC-Q200 qualified
