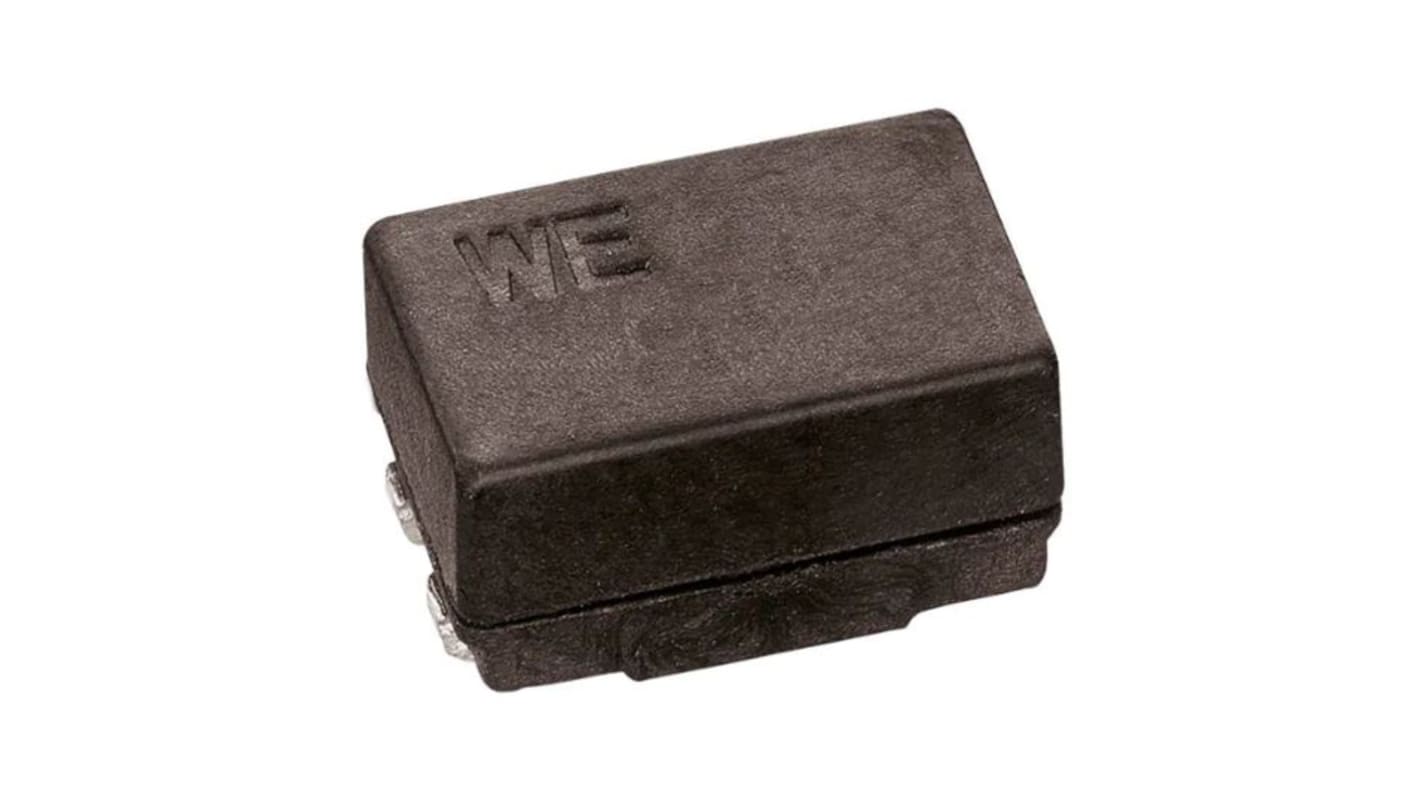

Wurth Elektronik 20000 μH Common Mode Choke 2.6Ω
- RS Stock No.:
- 217-7246
- Mfr. Part No.:
- 744220203
- Brand:
- Wurth Elektronik
Available to back order for despatch 12/08/2024
Price Each (In a Tray of 1000)
£1.54
(exc. VAT)
£1.85
(inc. VAT)
| Units | Per unit | Per Tray* |
| 1000 + | £1.54 | £1,540.00 |
| *price indicative | ||
- RS Stock No.:
- 217-7246
- Mfr. Part No.:
- 744220203
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
The Wurth Elektronik WE-SL2 SMT common mode line filter has 2 number of windings. It has 20000 μH Inductance and 200mA rated current. The product has AEC-Q200 grade 1 component qualification.
Maximum Impedance 50000 Ω
Rated Current 200 mA
DC Resistance 2.6 Ω
Leakage Inductance 490 nH
Rated Current 200 mA
DC Resistance 2.6 Ω
Leakage Inductance 490 nH
Specifications
Attribute | Value |
|---|---|
| Inductance | 20000 μH |
| Series | WE-SL2 SMT |
| Impedance | 50 kΩ |
| Test Frequency | 10 kHz |
| DC Resistance | 2.6Ω |
| Number of Lines | 2 |
