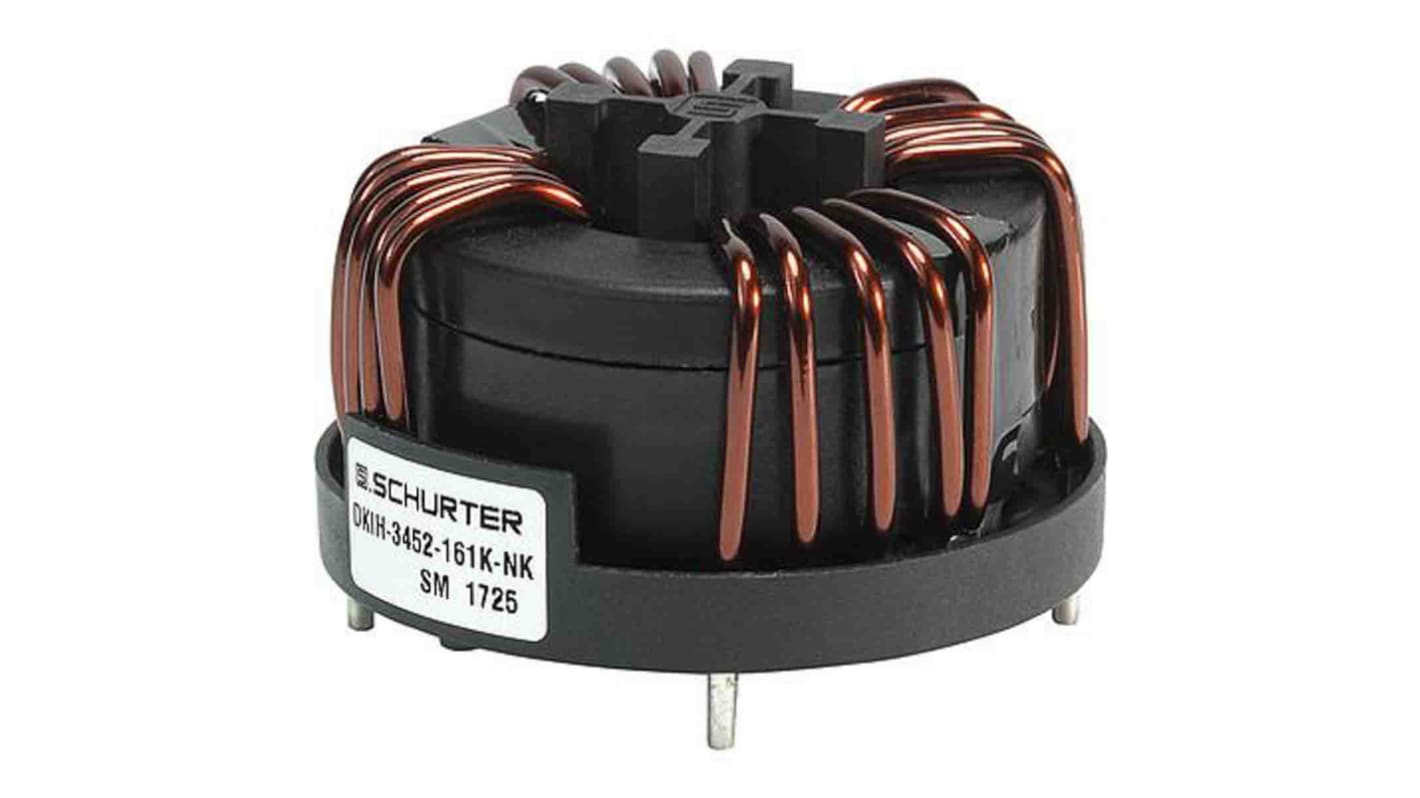

Schurter 2.1 mH 16 A Common Mode Choke 2.12 mΩ 500 V
- RS Stock No.:
- 188-9517
- Mfr. Part No.:
- 3-108-428
- Brand:
- Schurter
Bulk discount available
Subtotal (1 box of 20 units)*
£552.76
(exc. VAT)
£663.32
(inc. VAT)
Add 20 units to get free delivery
Temporarily out of stock
- Shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 20 | £27.638 | £552.76 |
| 40 - 80 | £24.874 | £497.48 |
| 100 + | £22.387 | £447.74 |
*price indicative
- RS Stock No.:
- 188-9517
- Mfr. Part No.:
- 3-108-428
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Inductance | 2.1 mH | |
| Product Type | Common Mode Choke | |
| Series | DKIH-4 | |
| Maximum DC Current | 16A | |
| Core Material | Nano Crystal | |
| Test Frequency | 6.6 MHz | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Number of Lines | 4 | |
| Automotive Standard | No | |
| Choke Voltage | 500 V | |
| Mount Type | Flange | |
| Inductance Tolerance | -30 to 50 % | |
| Standards/Approvals | REACH, RoHS, IEC | |
| Depth | 53mm | |
| Height | 31mm | |
| Maximum DC Resistance | 2.12mΩ | |
| Termination Style | Solder | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Inductance 2.1 mH | ||
Product Type Common Mode Choke | ||
Series DKIH-4 | ||
Maximum DC Current 16A | ||
Core Material Nano Crystal | ||
Test Frequency 6.6 MHz | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Number of Lines 4 | ||
Automotive Standard No | ||
Choke Voltage 500 V | ||
Mount Type Flange | ||
Inductance Tolerance -30 to 50 % | ||
Standards/Approvals REACH, RoHS, IEC | ||
Depth 53mm | ||
Height 31mm | ||
Maximum DC Resistance 2.12mΩ | ||
Termination Style Solder | ||
- COO (Country of Origin):
- CN
Compensated High Current Choke, 3-phase and neutral line.
Current compensated choke
3-phase and neutral line
THT-terminals
Flange for mounting onto printed circuit board
Unique Selling Proposition
Compact size and light weight
Open design for optimal cooling
Nanocrystalline ring cores
Customer specific pin outs available
Applications
Frequency converter
Charge stations
UPS-systems
