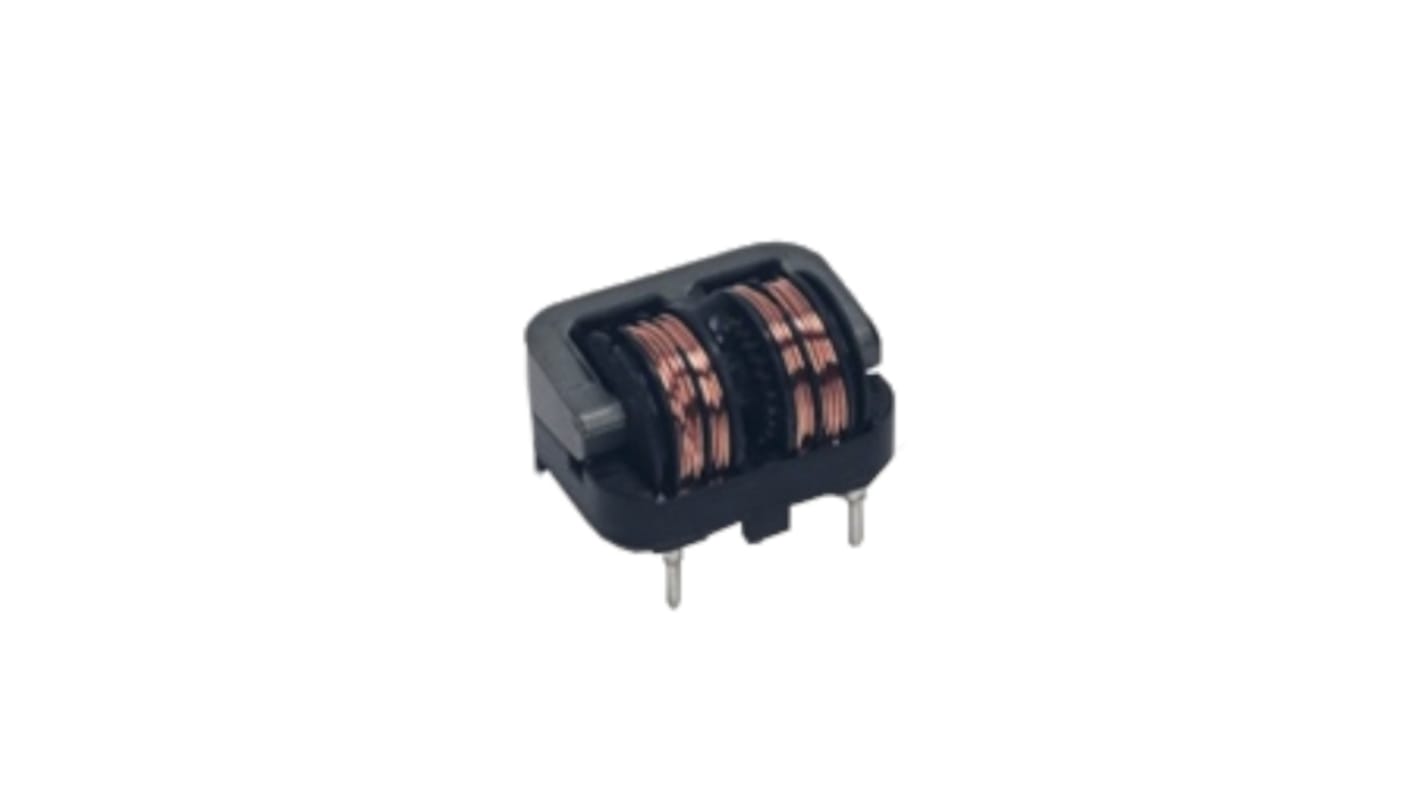

KEMET 17.7 mH 500 mA Common Mode Choke 1.55 Ω 250 V
- RS Stock No.:
- 186-0784
- Mfr. Part No.:
- SSHB10HS-05177
- Brand:
- KEMET
Subtotal (1 box of 60 units)*
£77.58
(exc. VAT)
£93.12
(inc. VAT)
Add 60 units to get free delivery
In Stock
- 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 60 + | £1.293 | £77.58 |
*price indicative
- RS Stock No.:
- 186-0784
- Mfr. Part No.:
- SSHB10HS-05177
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 17.7 mH | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 500mA | |
| Series | SSHB10HS | |
| Core Material | Manganese Zinc Ferrite | |
| Test Frequency | 10 kHz | |
| Packaging | Tray | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 130°C | |
| Automotive Standard | No | |
| Choke Voltage | 250 V | |
| Mount Type | Through Hole | |
| Maximum DC Resistance | 1.55Ω | |
| Height | 15.5mm | |
| Standards/Approvals | No | |
| Depth | 17mm | |
| Length | 22mm | |
| Termination Style | Solder Pad | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 17.7 mH | ||
Product Type Common Mode Choke | ||
Maximum DC Current 500mA | ||
Series SSHB10HS | ||
Core Material Manganese Zinc Ferrite | ||
Test Frequency 10 kHz | ||
Packaging Tray | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 130°C | ||
Automotive Standard No | ||
Choke Voltage 250 V | ||
Mount Type Through Hole | ||
Maximum DC Resistance 1.55Ω | ||
Height 15.5mm | ||
Standards/Approvals No | ||
Depth 17mm | ||
Length 22mm | ||
Termination Style Solder Pad | ||
The KEMET SSHB coils are dual mode chokes with a wide variety of characteristics. These hybrid coils combine the two functions of normal mode countermeasure and common mode noise suppression, with just one coil. Reducing the number of required products ensures cost savings and space efficiency. Our proprietary core materials provide optimized solutions for high-temperature requirements (standard type) or for high permeability needs (R type). In addition, the specially developed shape is efficient with normal noise suppression.
Proprietary 5HT and 10H ferrite materials and equivalents
Optimization of magnetic circuit and material
One coil to suppress both common and normal noise
High impedance in wide frequency range due to divided bobbin
High permeability for R type
Operating temperature range from -25°C to +130°C for standard type
Operating temperature range from -25°C to +120°C for R type
Low leakage magnetic flux to outside
Compact size and low height
Applications
LED lighting
Audio-visual equipment
Office automation equipment
Power supplies
