KEMET 187 μH 8 A Common Mode Choke 37.6 mΩ
- RS Stock No.:
- 183-6839
- Mfr. Part No.:
- PHBC14-1R2A0187V
- Brand:
- KEMET
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.27
(exc. VAT)
£11.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.27 |
| 10 - 24 | £8.72 |
| 25 - 49 | £8.07 |
| 50 - 99 | £7.61 |
| 100 + | £6.92 |
*price indicative
- RS Stock No.:
- 183-6839
- Mfr. Part No.:
- PHBC14-1R2A0187V
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 187μH | |
| Product Type | Common Mode Choke | |
| Series | PHBC | |
| Maximum DC Current | 8A | |
| Packaging | Tray | |
| Test Frequency | 100kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Inductance Tolerance | 20 % | |
| Standards/Approvals | RoHS | |
| Depth | 34mm | |
| Length | 9mm | |
| Termination Style | Solder Pad | |
| Maximum DC Resistance | 37.6mΩ | |
| Height | 19.4mm | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 187μH | ||
Product Type Common Mode Choke | ||
Series PHBC | ||
Maximum DC Current 8A | ||
Packaging Tray | ||
Test Frequency 100kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Inductance Tolerance 20 % | ||
Standards/Approvals RoHS | ||
Depth 34mm | ||
Length 9mm | ||
Termination Style Solder Pad | ||
Maximum DC Resistance 37.6mΩ | ||
Height 19.4mm | ||
- COO (Country of Origin):
- VN

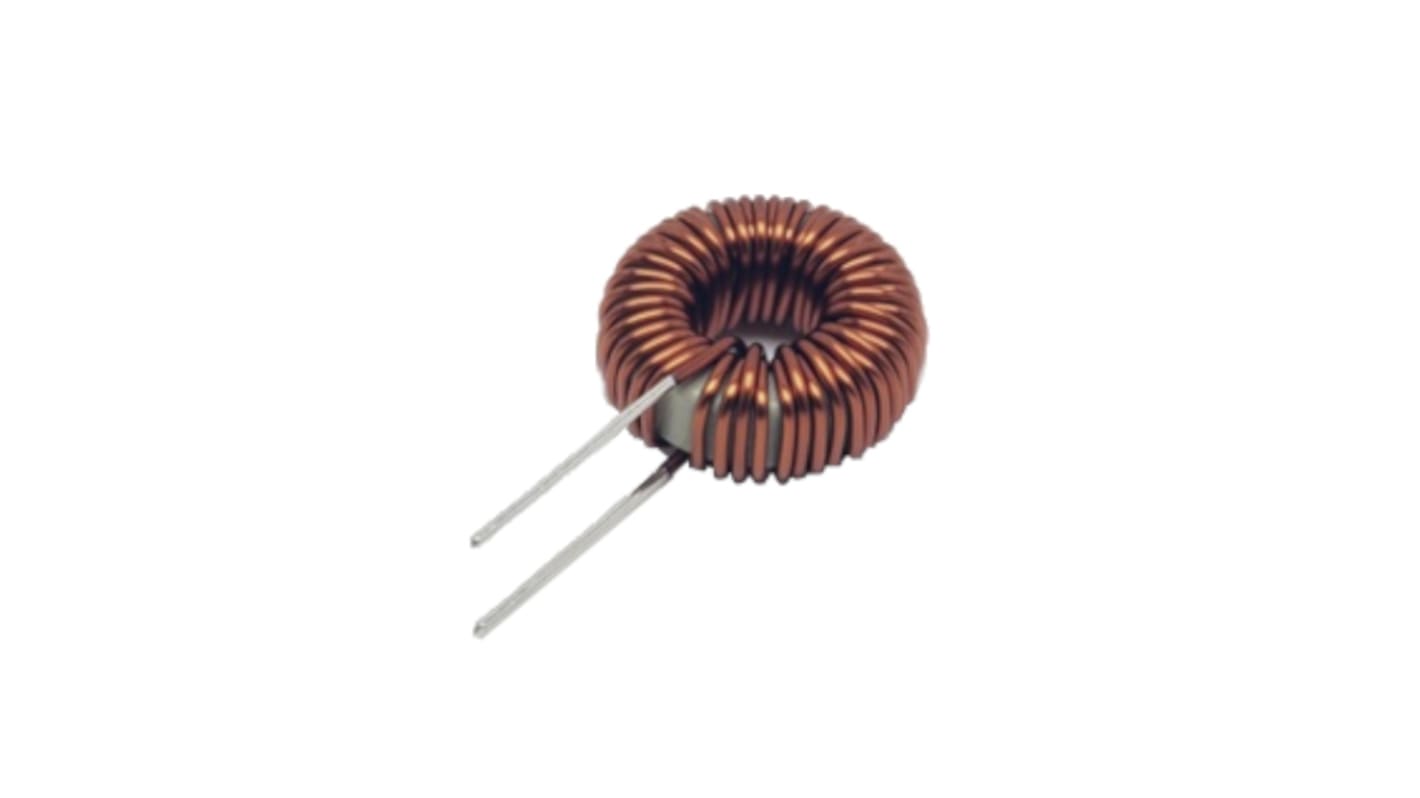

The KEMET PHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Ni dust cores and are useful in various fields such as DC/ converters as well as normal noise countermeasures.
Fe-Ni dust core material
Most suitable for big current applications
Low core loss
High saturation magnetic flux density
Good DC superposition characteristics
Wide variety of sizes and specifications
Operating temperature range from −40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
Normal mode noise solution countermeasure
