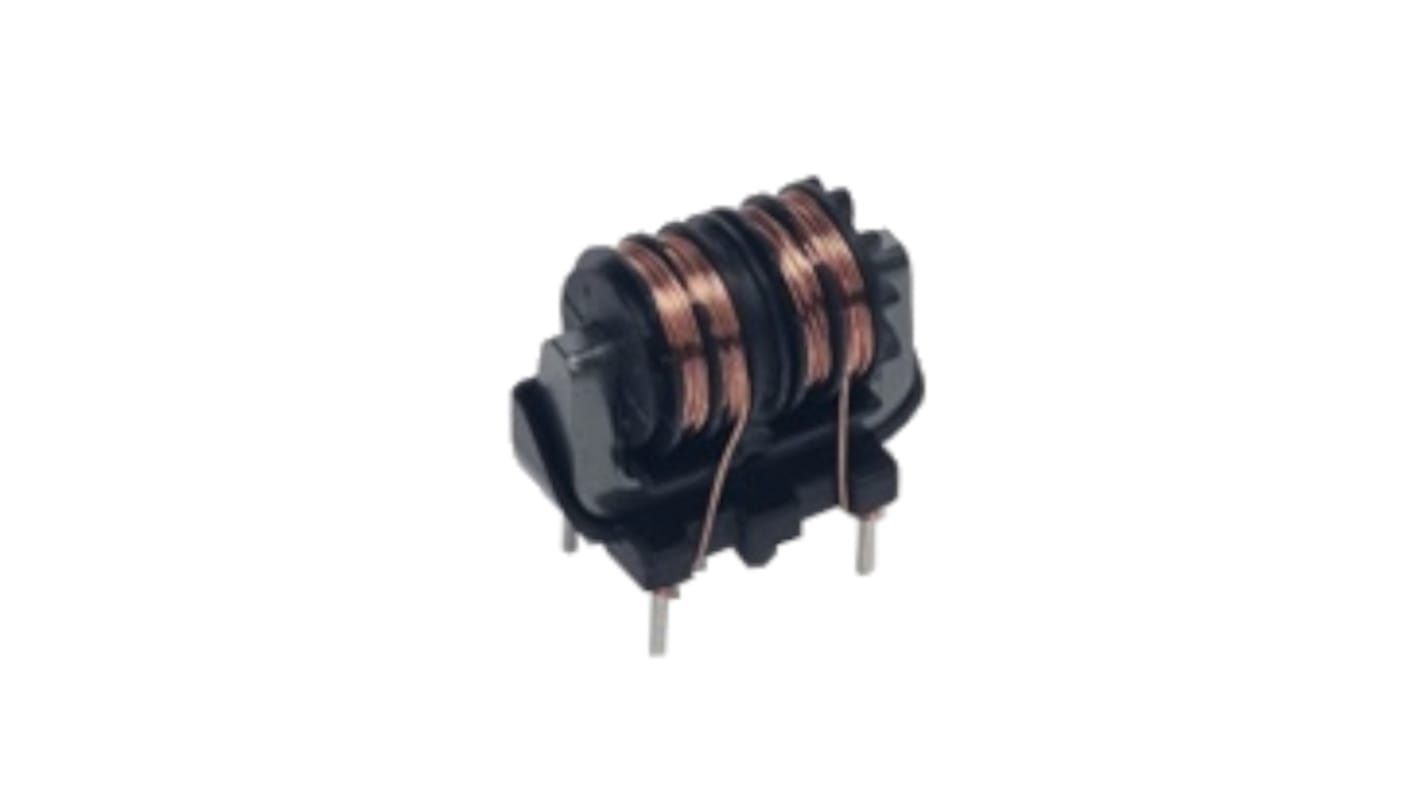

KEMET 7.5 mH 1.3 A Common Mode Choke 0.24 Ω 250 V ac
- RS Stock No.:
- 183-6836
- Mfr. Part No.:
- SSR10HS-13075
- Brand:
- KEMET
Subtotal (1 pack of 5 units)*
£7.85
(exc. VAT)
£9.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.57 | £7.85 |
*price indicative
- RS Stock No.:
- 183-6836
- Mfr. Part No.:
- SSR10HS-13075
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Common Mode Choke | |
| Inductance | 7.5 mH | |
| Maximum DC Current | 1.3A | |
| Series | SSR10HS | |
| Packaging | Tray | |
| Test Frequency | 10 kHz | |
| Maximum Operating Temperature | 120°C | |
| Minimum Operating Temperature | -25°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Choke Voltage | 250 V ac | |
| Standards/Approvals | RoHS | |
| Termination Style | Solder Pad | |
| Height | 13.5mm | |
| Length | 22mm | |
| Depth | 18mm | |
| Maximum DC Resistance | 0.24Ω | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Common Mode Choke | ||
Inductance 7.5 mH | ||
Maximum DC Current 1.3A | ||
Series SSR10HS | ||
Packaging Tray | ||
Test Frequency 10 kHz | ||
Maximum Operating Temperature 120°C | ||
Minimum Operating Temperature -25°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Choke Voltage 250 V ac | ||
Standards/Approvals RoHS | ||
Termination Style Solder Pad | ||
Height 13.5mm | ||
Length 22mm | ||
Depth 18mm | ||
Maximum DC Resistance 0.24Ω | ||
- COO (Country of Origin):
- VN
The KEMET SSR coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S15H cores and are useful in various noise countermeasure fields.
Proprietary S15H ferrite material
High permeability
High impedance in wide frequency range due to divided bobbin
Compact size, low profile, and lightweight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
