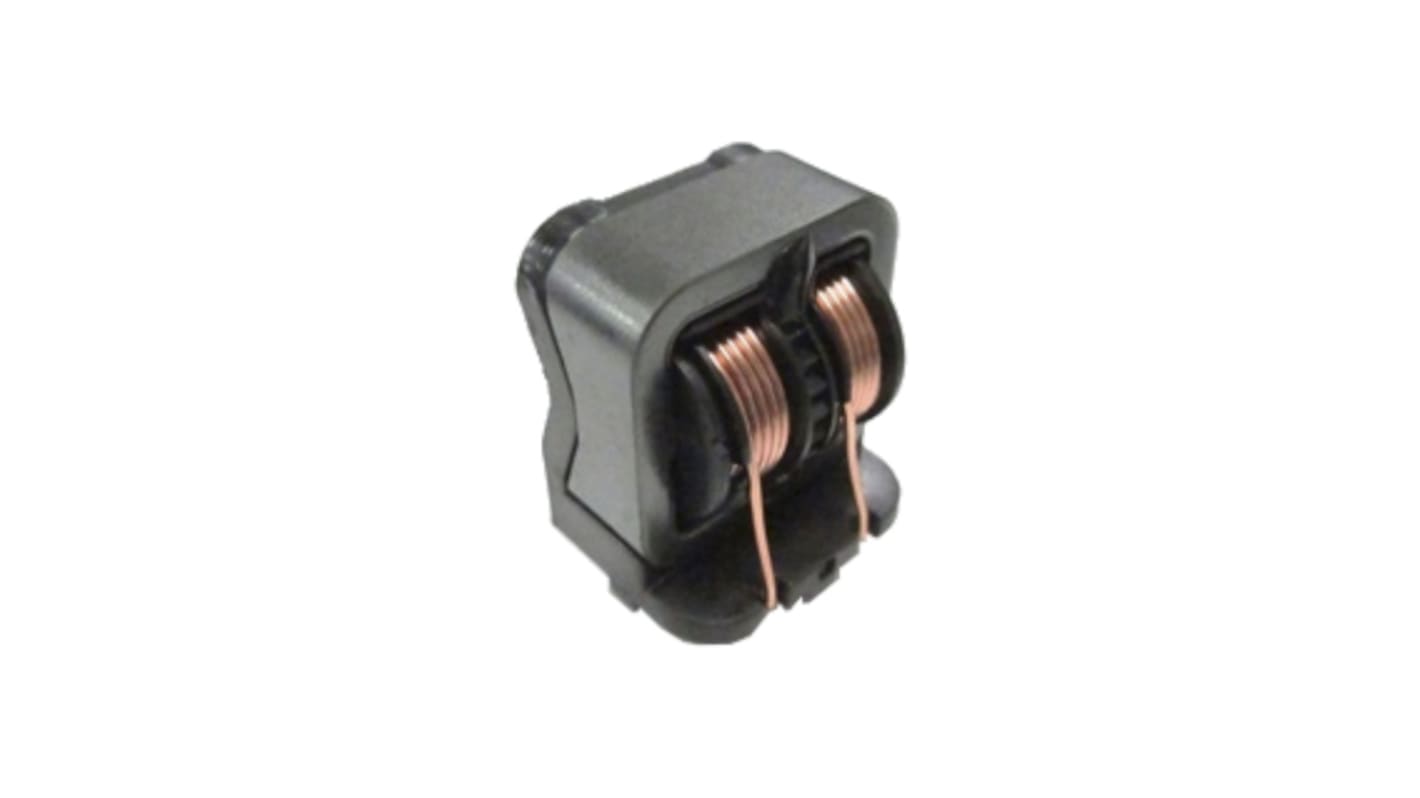

KEMET 47 mH 1.6 A Common Mode Choke 0.327 Ω 250 V ac

View all Common Mode Chokes
Bulk discount available

Subtotal (1 unit)*

£2.23

(exc. VAT)

£2.68

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£2.23
10 +£1.86

*price indicative

RS Stock No.:
183-6698
Mfr. Part No.:
SSRH24NV-16470
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

47 mH

Product Type

Common Mode Choke

Series

SSRH

Maximum DC Current

1.6A

Core Material

Manganese Zinc Ferrite

Test Frequency

10 kHz

Packaging

Tray

Maximum Operating Temperature

120°C

Minimum Operating Temperature

-25°C

Number of Lines

2

Automotive Standard

No

Choke Voltage

250 V ac

Mount Type

Through Hole

Standards/Approvals

RoHS

Termination Style

Solder Pad

Length

25.5mm

Height

31mm

Maximum DC Resistance

0.327Ω

Depth

20mm

COO (Country of Origin):
VN
The Kemet SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise counter measure fields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.

Proprietary S18H ferrite material

High permeability

Large inductance due to non-divided bobbin

Expanded current range up to 5A

Compact size and light weight

Operating temperature range from −25°C to +120°C

Flame retardant base and bobbin

Applications

Audio-visual equipment

Office automation equipment

Digital appliances

Power supplies
