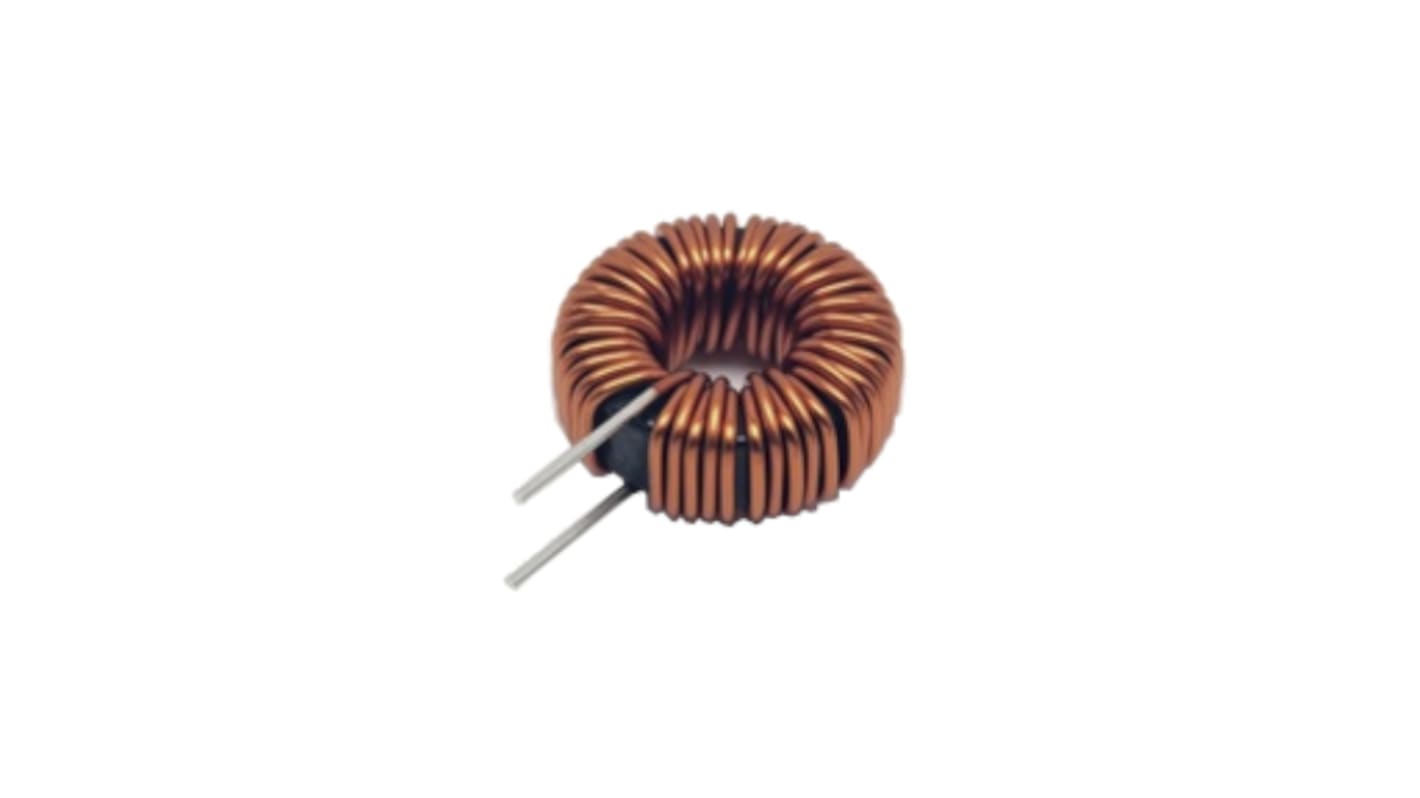

KEMET 97 μH 12 A Common Mode Choke 16 mΩ
- RS Stock No.:
- 183-6625
- Mfr. Part No.:
- SHBC20-1R7A0097V
- Brand:
- KEMET
Subtotal (1 tray of 16 units)*
£79.856
(exc. VAT)
£95.824
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 64 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 16 + | £4.991 | £79.86 |
*price indicative
- RS Stock No.:
- 183-6625
- Mfr. Part No.:
- SHBC20-1R7A0097V
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Common Mode Choke | |
| Inductance | 97μH | |
| Maximum DC Current | 12A | |
| Series | SHBC | |
| Test Frequency | 100kHz | |
| Packaging | Tray | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Inductance Tolerance | 20 % | |
| Standards/Approvals | RoHS | |
| Height | 20.3mm | |
| Depth | 41.2mm | |
| Termination Style | Solder Pad | |
| Length | 41.2mm | |
| Maximum DC Resistance | 16mΩ | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Common Mode Choke | ||
Inductance 97μH | ||
Maximum DC Current 12A | ||
Series SHBC | ||
Test Frequency 100kHz | ||
Packaging Tray | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Inductance Tolerance 20 % | ||
Standards/Approvals RoHS | ||
Height 20.3mm | ||
Depth 41.2mm | ||
Termination Style Solder Pad | ||
Length 41.2mm | ||
Maximum DC Resistance 16mΩ | ||
- COO (Country of Origin):
- VN
The KEMET SHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.
Fe-Si-Al dust core material
Available for smoothing and converting
Low core loss
High frequency drive
Wide variety of sizes and specifications
Operating temperature range from−40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
