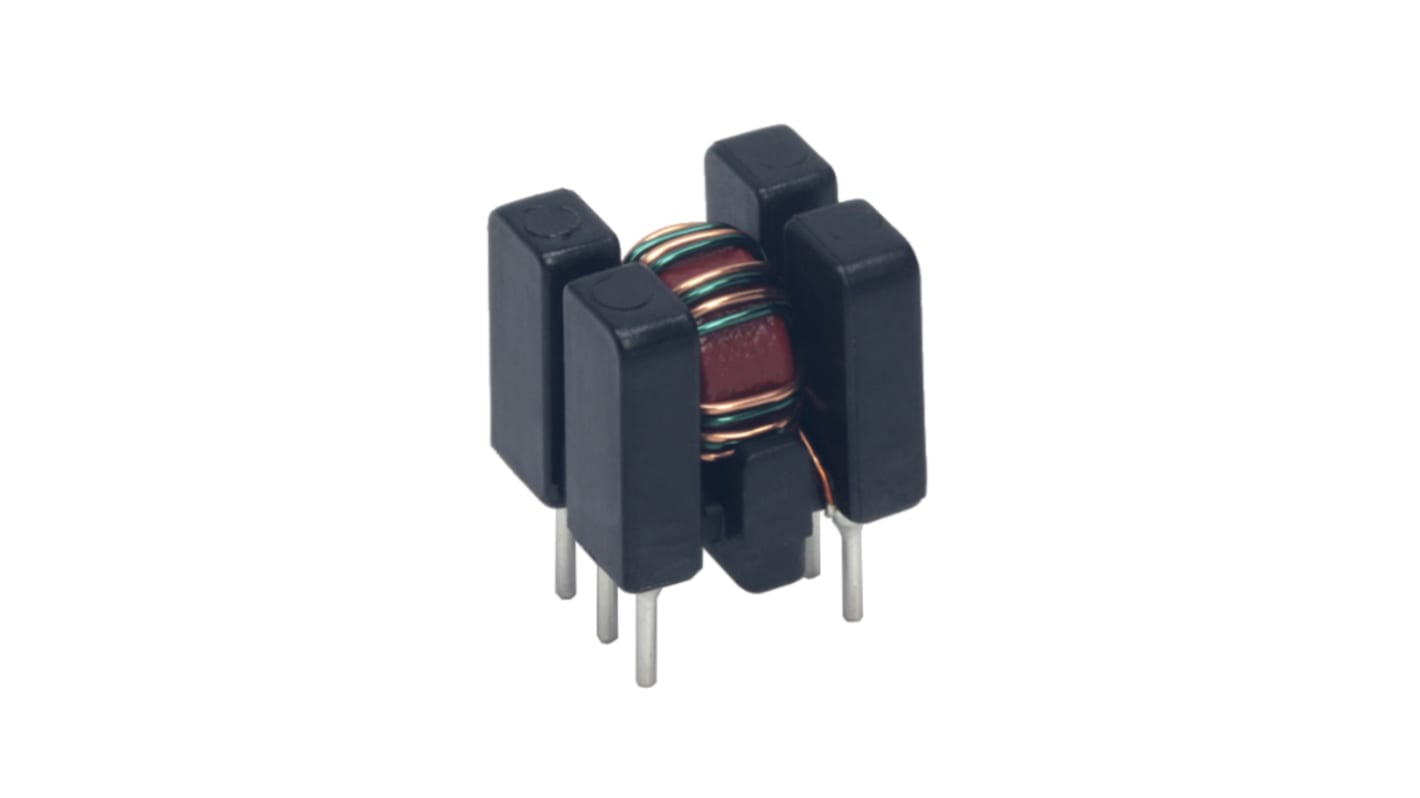

KEMET 0.5 μH 3.0 A Common Mode Choke 16mΩ 150V

RS Stock No.:: 186-0691
Mfr. Part No.:: SH-201
Brand:: KEMET

KEMET 0.5 μH 3.0 A Common Mode Choke 16mΩ 150V

Sorry, we couldn't check our stock levels right now. Please try refreshing the page.

Not available for guaranteed pre 9am/10am delivery

Added

Price Each (In a Pack of 5)

£0.942

(exc. VAT)

£1.13

(inc. VAT)

Units	Per unit	Per Pack*
5 +	£0.942	£4.71
*price indicative

RS Stock No.:: 186-0691
Mfr. Part No.:: SH-201
Brand:: KEMET

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

The KEMET SH coils are common mode chokes with a wide variety of characteristics. These through-hole toroidal coils are suitable for noise countermeasure in DC power line circuits.

Nickel-Zinc (Ni-Zn) ferrite core
Operating temperature range from -25°C to +80°C (except SH-132 and SH-432: -25°C to +60°C)
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Home appliances
Power supplies

Specifications

Attribute	Value
Inductance	0.5 μH
Series	SH
Test Frequency	100 kHz
DC Resistance	16mΩ
Maximum Current	3.0 A
Dimensions	10 x 12 x 12.5mm
Operating Temperature Range	-25°C → +80°C
Number of Lines	2
Mounting Type	Through Hole
Voltage Rating	150V
Termination Style	PCB Pin
Maximum Operating Temperature	+80°C
Height	12mm
Depth	10mm
Minimum Operating Temperature	-25°C
Length	12.5mm
