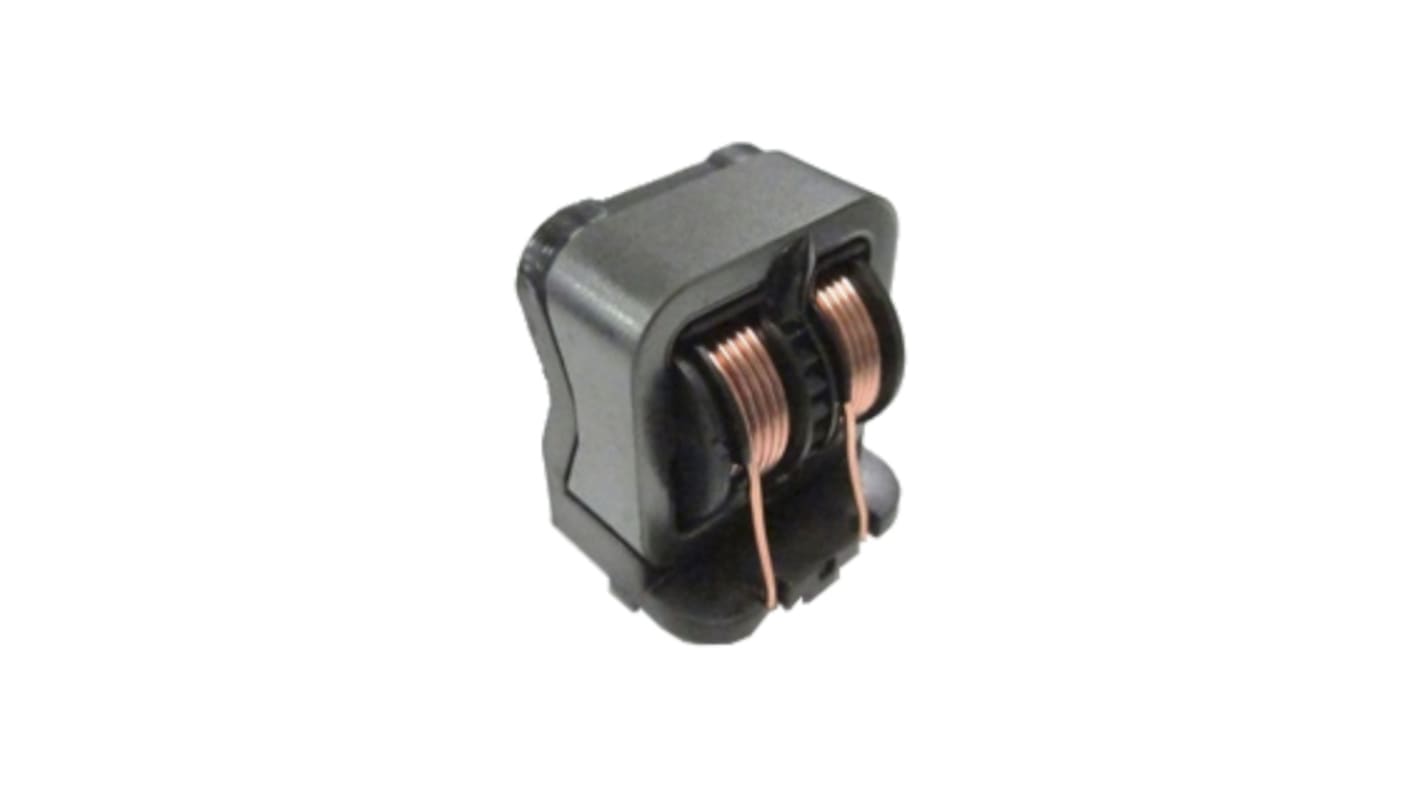

KEMET 65.5 mH 1.2 A Common Mode Choke 0.475Ω

View all Common Mode Chokes

Subtotal (1 tray of 40 units)*

£74.88

(exc. VAT)

£89.84

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
40 +£1.872£74.88

*price indicative

RS Stock No.:
183-6533
Mfr. Part No.:
SSRH24NV-12655
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

65.5 mH

Series

SSRH

Test Frequency

10 kHz

DC Resistance

0.475Ω

Maximum Current

1.2 A

Dimensions

25.5 x 20 x 31mm

Operating Temperature Range

-25°C → +120°C

Number of Lines

2

Mounting Type

Through Hole

Termination Style

Solder Pad

Height

31mm

Depth

20mm

Minimum Operating Temperature

-25°C

Length

25.5mm

Maximum Operating Temperature

+120°C

COO (Country of Origin):
VN
The Kemet SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise counter measure fields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.

Proprietary S18H ferrite material
High permeability
Large inductance due to non-divided bobbin
Expanded current range up to 5A
Compact size and light weight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
