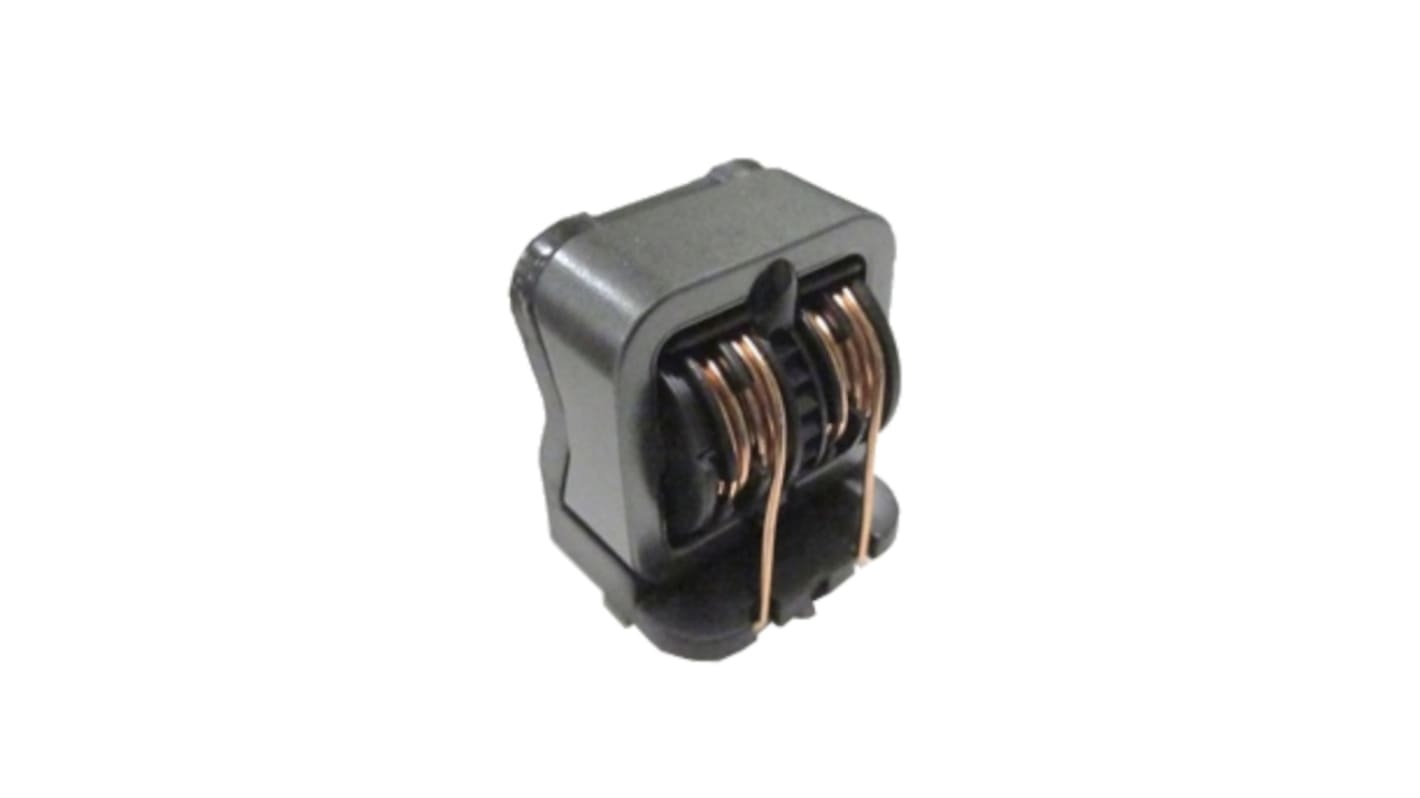

KEMET 21.5 mH 2 A Common Mode Choke 0.177Ω
- RS Stock No.:
- 183-6525
- Mfr. Part No.:
- SSRH24NHS-20215
- Brand:
- KEMET
Subtotal (1 tray of 60 units)*
£102.00
(exc. VAT)
£122.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,960 unit(s) shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 60 + | £1.70 | £102.00 |
*price indicative
- RS Stock No.:
- 183-6525
- Mfr. Part No.:
- SSRH24NHS-20215
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 21.5 mH | |
| Series | SSRH | |
| Test Frequency | 10 kHz | |
| DC Resistance | 0.177Ω | |
| Maximum Current | 2 A | |
| Dimensions | 25.5 x 25.5 x 18mm | |
| Operating Temperature Range | -25°C → +120°C | |
| Number of Lines | 2 | |
| Mounting Type | Through Hole | |
| Termination Style | Solder Pad | |
| Maximum Operating Temperature | +120°C | |
| Depth | 25.5mm | |
| Length | 25.5mm | |
| Minimum Operating Temperature | -25°C | |
| Height | 18mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 21.5 mH | ||
Series SSRH | ||
Test Frequency 10 kHz | ||
DC Resistance 0.177Ω | ||
Maximum Current 2 A | ||
Dimensions 25.5 x 25.5 x 18mm | ||
Operating Temperature Range -25°C → +120°C | ||
Number of Lines 2 | ||
Mounting Type Through Hole | ||
Termination Style Solder Pad | ||
Maximum Operating Temperature +120°C | ||
Depth 25.5mm | ||
Length 25.5mm | ||
Minimum Operating Temperature -25°C | ||
Height 18mm | ||
- COO (Country of Origin):
- VN
The KEMET SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise countermeasure fields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.
Proprietary S18H ferrite material
High permeability
High impedance in wide frequency range due to divided bobbin
Expanded current range up to 5A
Compact size and light weight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
High permeability
High impedance in wide frequency range due to divided bobbin
Expanded current range up to 5A
Compact size and light weight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
