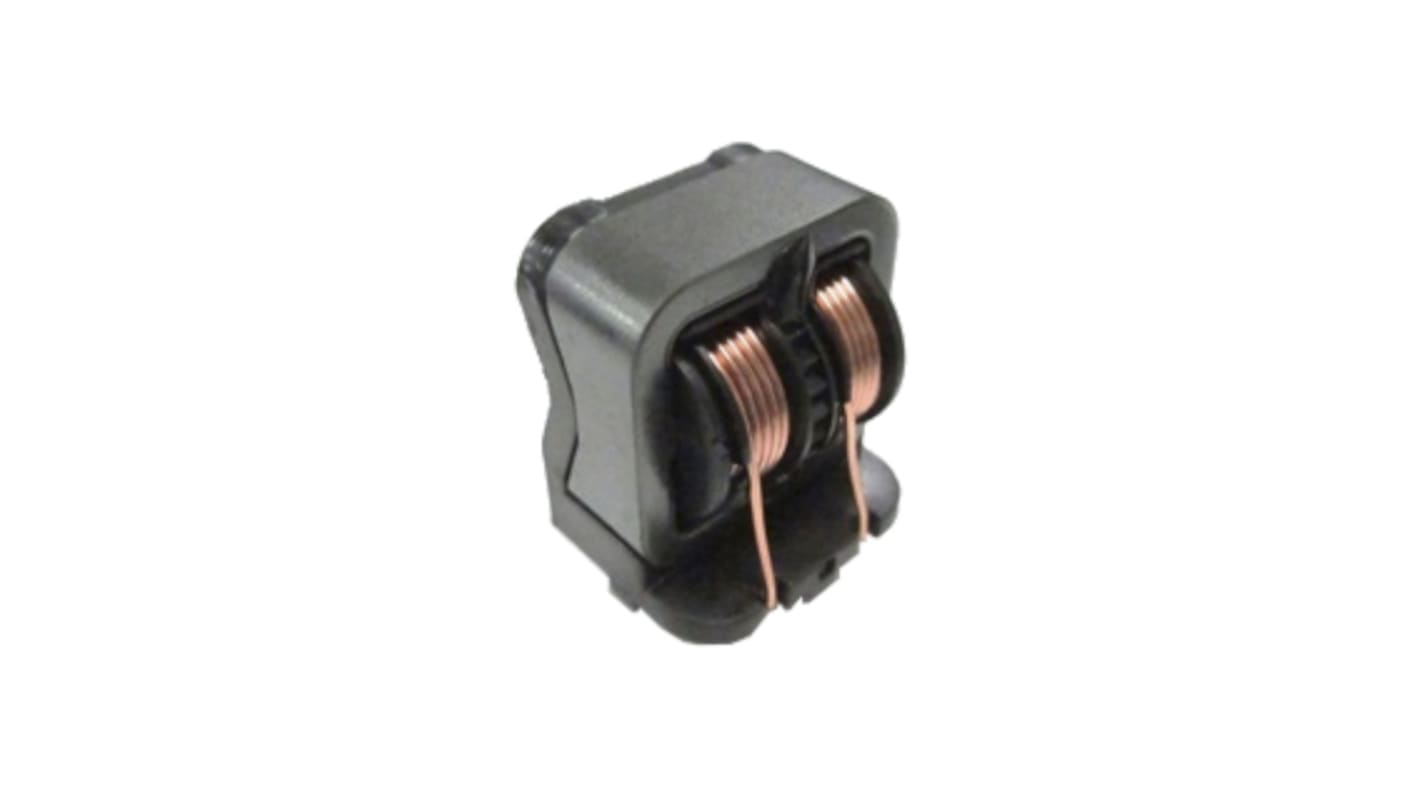

KEMET 65.5 mH 1.2 A Common Mode Choke 0.475Ω

View all Common Mode Chokes

Subtotal (1 tray of 60 units)*

£80.40

(exc. VAT)

£96.60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,960 unit(s) shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
60 +£1.34£80.40

*price indicative

RS Stock No.:
183-6514
Mfr. Part No.:
SSRH24NH-12655
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

65.5 mH

Series

SSRH

Test Frequency

10 kHz

DC Resistance

0.475Ω

Maximum Current

1.2 A

Dimensions

25.5 x 25.5 x 18mm

Operating Temperature Range

-25°C → +120°C

Number of Lines

2

Mounting Type

Through Hole

Termination Style

Solder Pad

Length

25.5mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+120°C

Height

18mm

Depth

25.5mm

COO (Country of Origin):
VN
The Kemet SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise counter measure fields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.

Proprietary S18H ferrite material
High permeability
Large inductance due to non-divided bobbin
Expanded current range up to 5A
Compact size and light weight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
