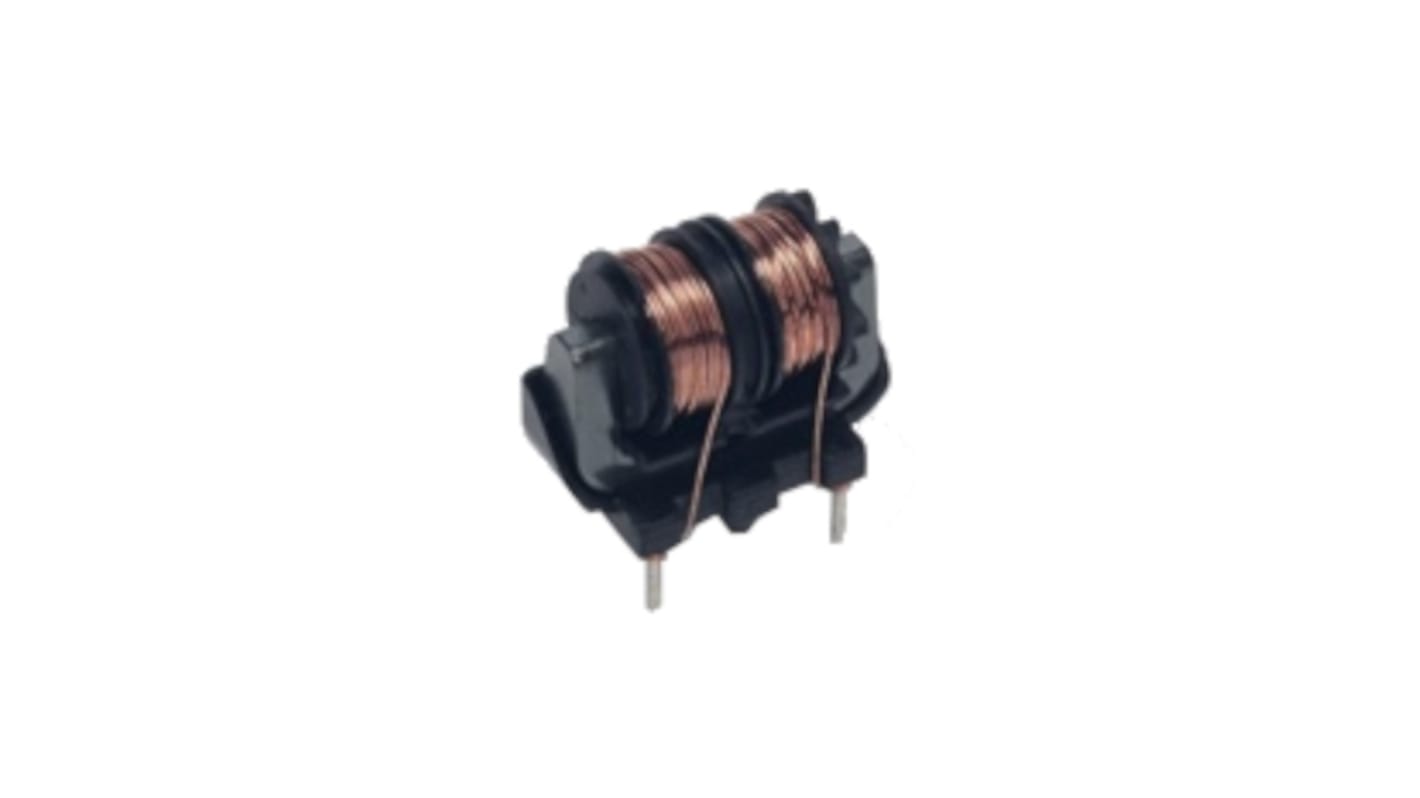

KEMET 14 mH 1.1 A Common Mode Choke 0.37 Ω 250V ac

View all Common Mode Chokes

Subtotal (1 tray of 60 units)*

£78.78

(exc. VAT)

£94.56

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 21 June 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
60 +£1.313£78.78

*price indicative

RS Stock No.:
183-6472
Mfr. Part No.:
SSR10H-11140
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

14mH

Product Type

Common Mode Choke

Maximum DC Current

1.1A

Series

SSR10H

Core Material

Manganese Zinc Ferrite

Packaging

Tray

Test Frequency

10kHz

Maximum Operating Temperature

120°C

Minimum Operating Temperature

-25°C

Number of Lines

2

Automotive Standard

No

Choke Voltage

250V ac

Mount Type

Through Hole

Height

13.5mm

Length

22mm

Depth

18mm

Standards/Approvals

RoHS

Termination Style

Solder Pad

Maximum DC Resistance

0.37Ω

COO (Country of Origin):
VN
The KEMET SSR coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S15H cores and are useful in various noise countermeasure fields.

Proprietary S15H ferrite material

High permeability

Large inductance due to non-divided bobbin

Compact size, low profile, and lightweight

Operating temperature range from −25°C to +120°C

Flame retardant base and bobbin

Applications

Audio-visual equipment

Office automation equipment

Digital appliances

Power supplies
