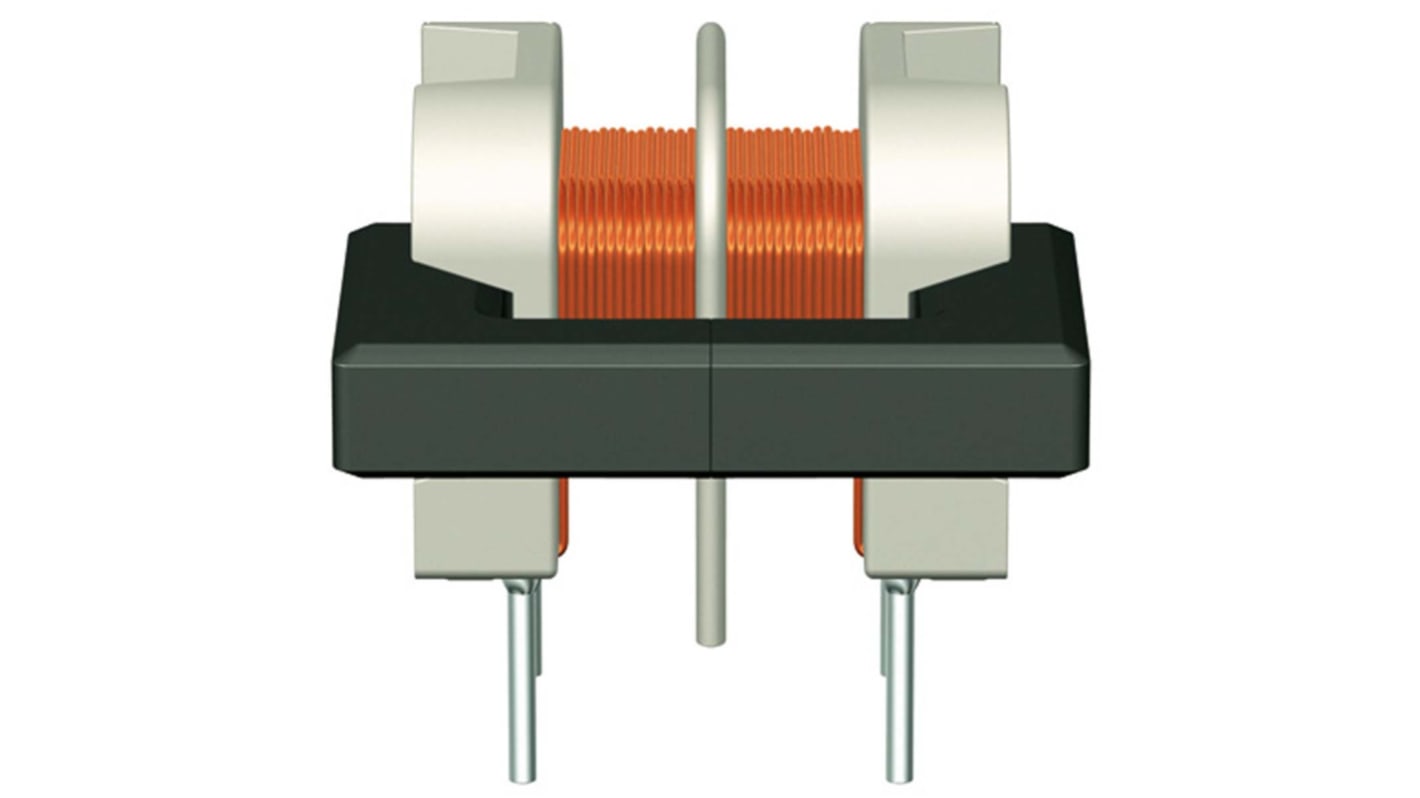

EPCOS 1 mH 1.6 A Power Choke Coil 160 mΩ 300V ac

View all Common Mode Chokes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
167-0423
Mfr. Part No.:
B82730G3162A020
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Product Type

Power Choke Coil

Inductance

1mH

Series

B82730G

Maximum DC Current

1.6A

Core Material

Ferrite

Test Frequency

10kHz

Maximum Operating Temperature

40°C

Minimum Operating Temperature

40°C

Automotive Standard

No

Mount Type

Through Hole

Pin Count

4

Choke Voltage

300V ac

Inductance Tolerance

-30 to 50 %

Maximum Self Resonant Frequency

10kHz

Maximum DC Resistance

160mΩ

Termination Style

Surface Mount

Height

12mm

Standards/Approvals

VDE, UL, RoHS, EN

Depth

15mm

Length

16.5mm

Package/Case

U-core with closed PET coil

COO (Country of Origin):
CN

Epcos B82730G Series Common Mode Chokes


B82730G Series, Current-compensated U-core double choke with a Ferrite core

Closed PET coil former (UL 94 V-0) without encapsulation

Creepage distances ≥4 mm

B82730G Series offers high Resonance Frequency

Approx. 1.3% stray inductance for symmetrical interference suppression

Low whirring noise

Suitable for wave soldering

Applications include Suppression of common-mode interferences; Compact switch-mode power applications; Electronic ballasts in lamps and for white goods applications
