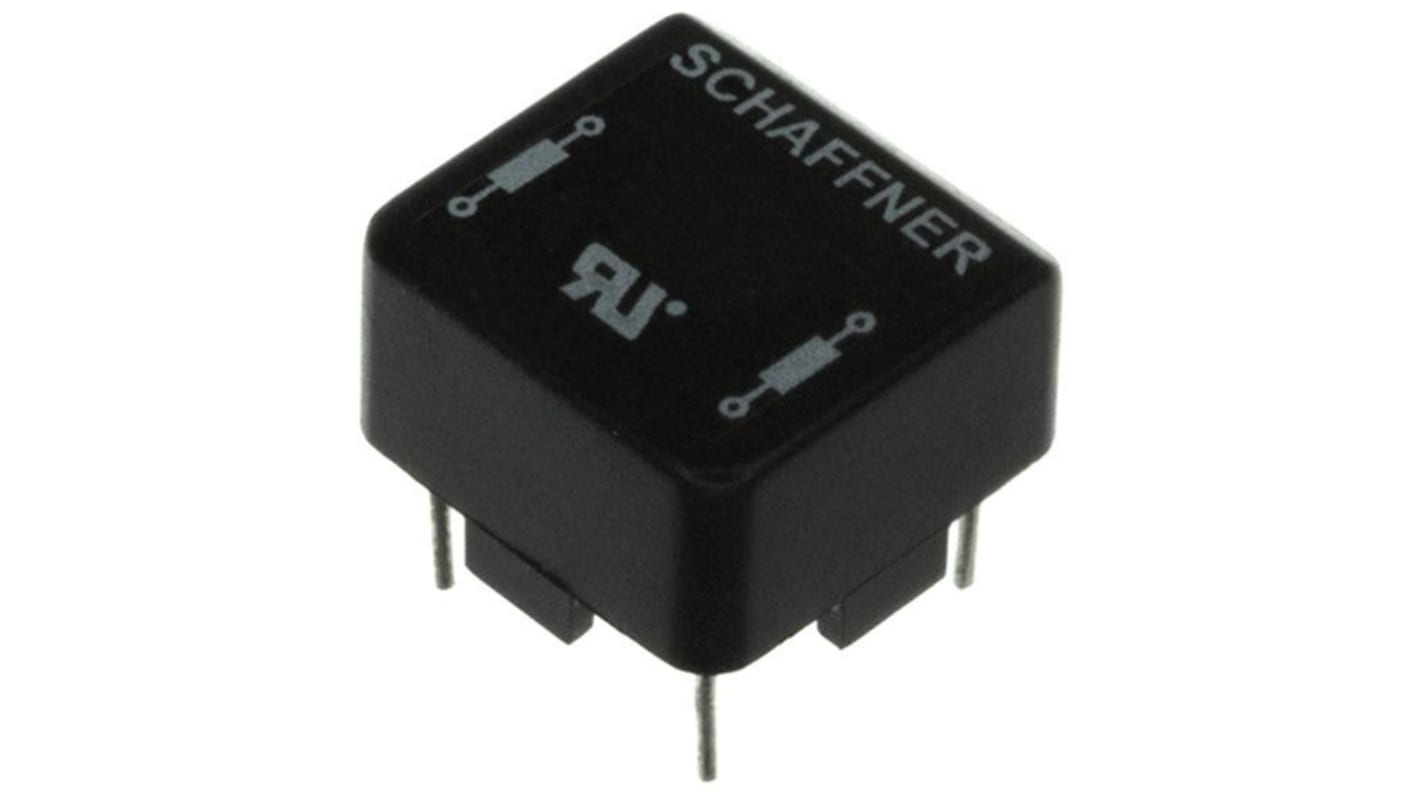

Schaffner 1 mH 2 A Common Mode Choke 70mΩ

View all Common Mode Chokes

Subtotal (1 bag of 5 units)*

£7.70

(exc. VAT)

£9.25

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,995 unit(s) shipping from 13 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
5 +£1.54£7.70

*price indicative

RS Stock No.:
133-6152
Mfr. Part No.:
RN212-2-02-1M0
Brand:
Schaffner
Find similar products by selecting one or more attributes.
Select all

Brand

Schaffner

Inductance

1 mH

Series

RN

Test Frequency

10 KHz

DC Resistance

70mΩ

Maximum Current

2 A

Dimensions

12.5 x 18 x 20mm

Operating Temperature Range

-40°C → +100°C

Mounting Type

Through Hole

Termination Style

Solder Pad

Minimum Operating Temperature

-40°C

Depth

18mm

Length

12.5mm

Maximum Operating Temperature

+100°C

Height

20mm

Schaffner RN Series Common Mode Chokes


Premium range of common mode chokes from Schaffner provide the user with reliable AC power line noise filtration. Can be used in a wide range of applications such as phase-angle control circuits in combination with saturating chokes and EMI input filters.

Rated currents from 0.3 →10 A
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small compact design
High saturation resistance and excellent thermal behaviour

Approvals

UL recognised
