Wurth Elektronik 2 x 2 mH 600 mA Common mode filter 2 x 0.42Ω 80V
- RS Stock No.:
- 144-9811
- Mfr. Part No.:
- 744221
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1000 units)*
£1,506.00
(exc. VAT)
£1,807.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £1.506 | £1,506.00 |
*price indicative
- RS Stock No.:
- 144-9811
- Mfr. Part No.:
- 744221
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 2 x 2 mH | |
| Series | WE-SL2 | |
| Test Frequency | 1 KHz | |
| DC Resistance | 2 x 0.42Ω | |
| Maximum Current | 600 mA | |
| Dimensions | 9.2 x 6 x 5mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Mounting Type | Surface Mount | |
| Voltage Rating | 80V | |
| Termination Style | Surface Mount | |
| Depth | 6mm | |
| Length | 9.2mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 5mm | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 2 x 2 mH | ||
Series WE-SL2 | ||
Test Frequency 1 KHz | ||
DC Resistance 2 x 0.42Ω | ||
Maximum Current 600 mA | ||
Dimensions 9.2 x 6 x 5mm | ||
Operating Temperature Range -40°C → +125°C | ||
Mounting Type Surface Mount | ||
Voltage Rating 80V | ||
Termination Style Surface Mount | ||
Depth 6mm | ||
Length 9.2mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Height 5mm | ||

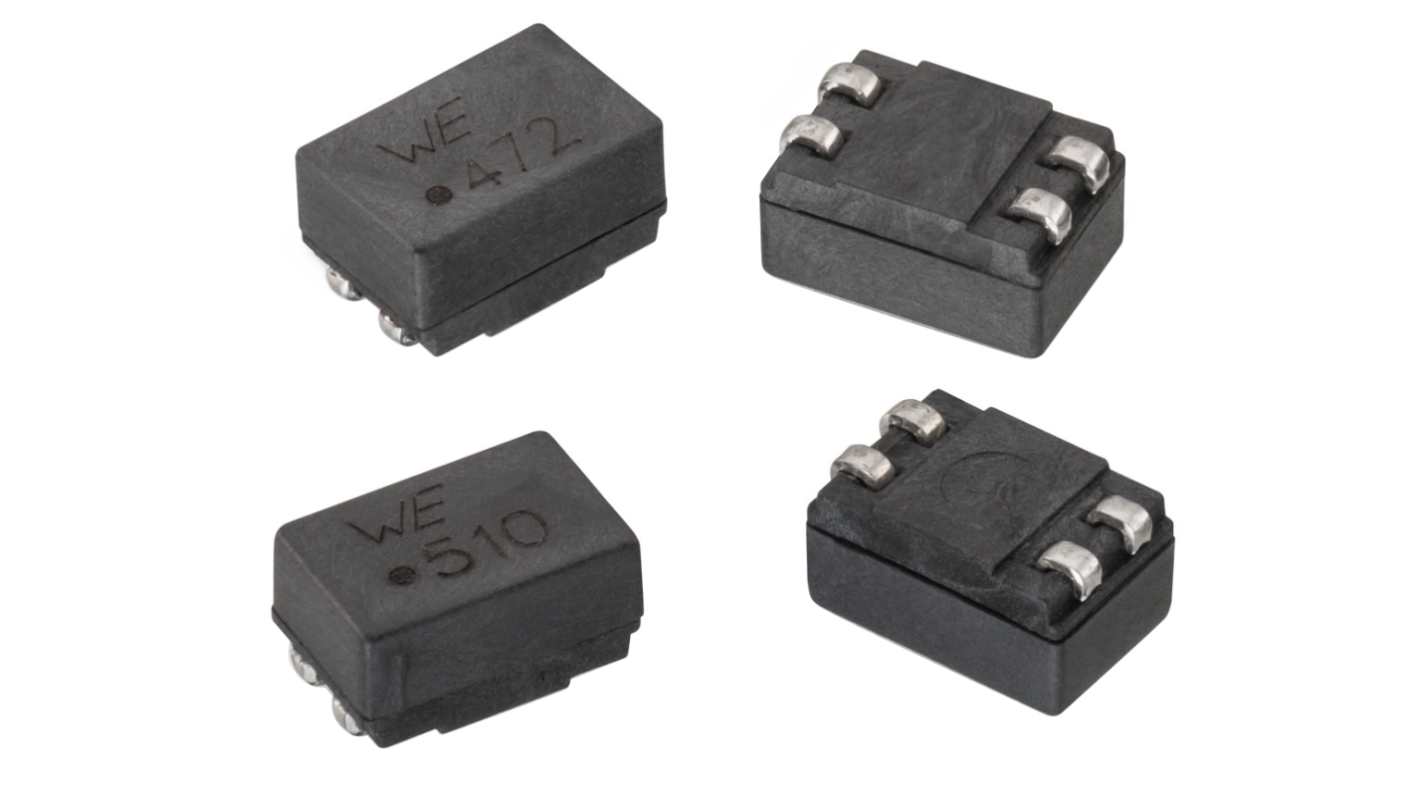

Wurth WE-SL2 Series SMD Common Mode Chokes
Double current-compensated ring core choke
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ
Applications
Chokes for bus systems such as CAN, USB, ISDN
Signal and data line filtering
Power supplies
Measuring signal lines
Signal and data line filtering
Power supplies
Measuring signal lines
Common Mode Choke
Ring core with the core materials of NiZn and MnZn
Operating temperature: –40 °C to +125 °C
Operating voltage: 80 VDC (42 VAC)
Recommended solder profile: Reflow
Current compensated choke for data and signal lines
Power supply systems
Signal and sensor lines
CAN
Suppression for common mode noise
Ring core with the core materials of NiZn and MnZn
Operating temperature: –40 °C to +125 °C
Operating voltage: 80 VDC (42 VAC)
Recommended solder profile: Reflow
Current compensated choke for data and signal lines
Power supply systems
Signal and sensor lines
CAN
Suppression for common mode noise
Wurth SMD Common Mode Chokes
