Wurth Elektronik 2 μH 10 A Common Mode Choke 3.8 mΩ

View all Common Mode Chokes
Bulk discount available

Subtotal (1 bag of 5 units)*

£6.71

(exc. VAT)

£8.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship
  • Plus 50 unit(s) shipping from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Bag*
5 - 45£1.342£6.71
50 - 95£1.274£6.37
100 - 495£1.182£5.91
500 - 995£1.086£5.43
1000 +£1.046£5.23

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
296-301
Distrelec Article No.:
304-30-049
Mfr. Part No.:
744710210
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

2μH

Product Type

Common Mode Choke

Series

WE-SD

Maximum DC Current

10A

Test Frequency

10kHz

Packaging

Carton

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Number of Lines

1

Automotive Standard

No

Pin Count

2

Inductance Tolerance

±25 %

Maximum Self Resonant Frequency

150MHz

Depth

7.6mm

Length

15.4mm

Maximum DC Resistance

3.8mΩ

Standards/Approvals

REACH, JEDEC JS709B, DIN ISO 2768, IEC 61249-2-21, DIN EN 61760-2, RoHS

Height

7.6mm

COO (Country of Origin):
BG

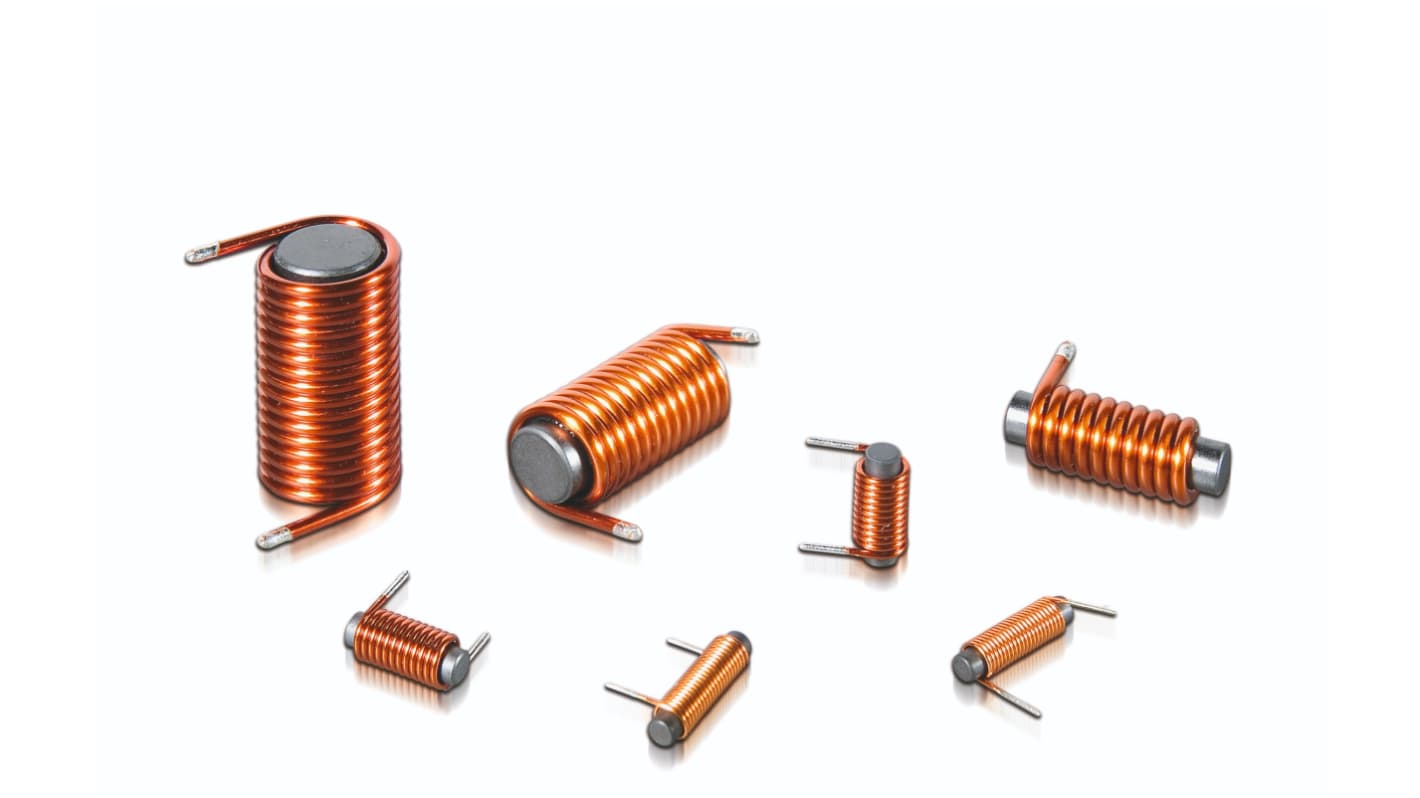

The Wurth Elektronik Rod Core Choke rated current is up to 15 A with inductance independent of rated DC current. It offers high mechanical stability and supports high saturation currents. The operating temperature range is –40°C to +150°C, with custom designs available on request.

Switching regulators

Motors

Power amplifiers

Power supplies

Broadband filtering

Typical in VHF
