Wurth Elektronik 10 μH 10 A Common Mode Choke 8.8 mΩ

View all Common Mode Chokes
Bulk discount available

Subtotal (1 bag of 5 units)*

£7.07

(exc. VAT)

£8.485

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
5 - 45£1.414£7.07
50 - 95£1.344£6.72
100 - 495£1.246£6.23
500 - 995£1.144£5.72
1000 +£1.104£5.52

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
296-187
Distrelec Article No.:
304-30-052
Mfr. Part No.:
744711010
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Product Type

Common Mode Choke

Inductance

10 μH

Series

WE-SD

Maximum DC Current

10A

Test Frequency

10 kHz

Packaging

Tray

Maximum Operating Temperature

150°C

Minimum Operating Temperature

-40°C

Number of Lines

1

Automotive Standard

No

Pin Count

2

Inductance Tolerance

±25 %

Maximum Self Resonant Frequency

50MHz

Depth

8.6mm

Standards/Approvals

RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, DIN ISO 2768, DIN EN 61760-2

Height

8.6mm

Maximum DC Resistance

8.8mΩ

Length

30.9mm

COO (Country of Origin):
BG

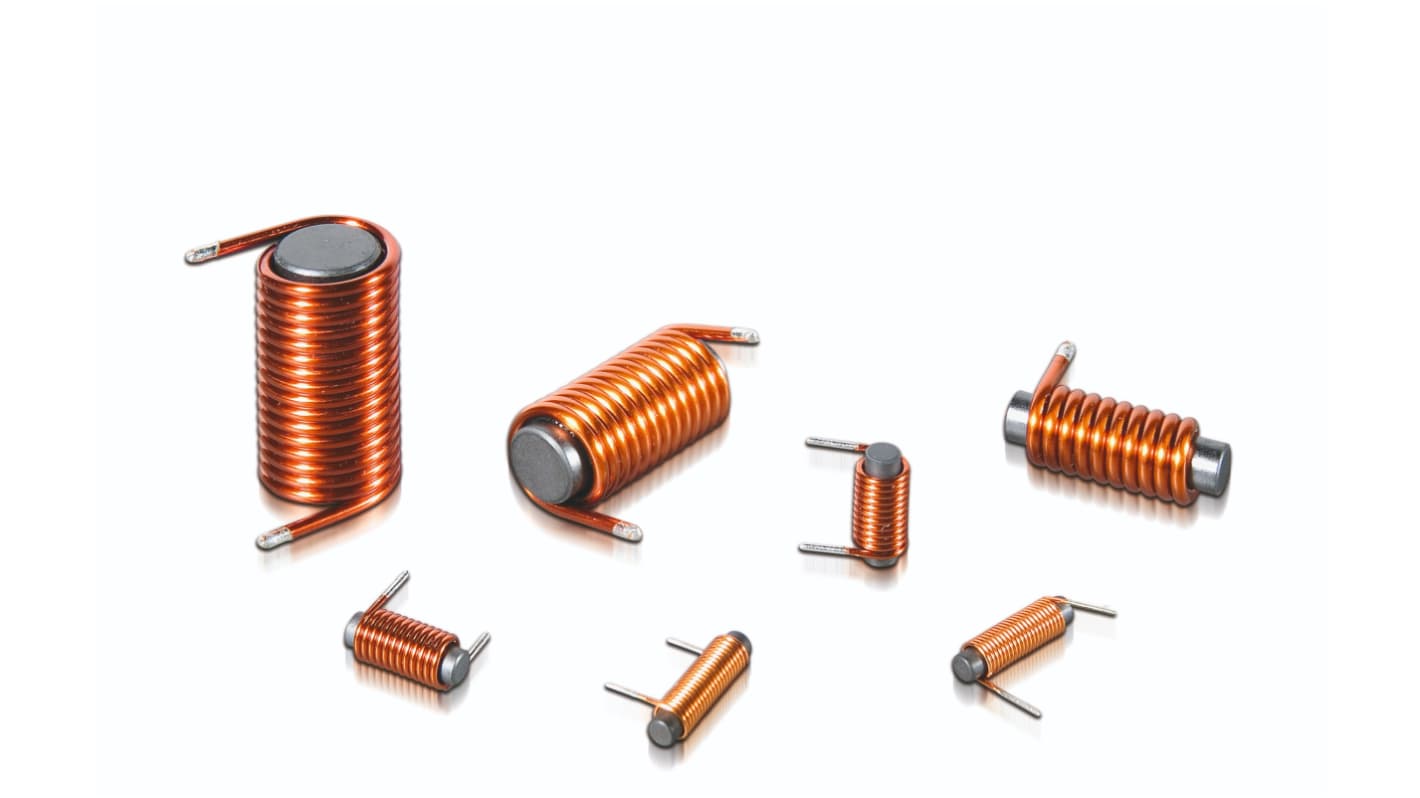

The Wurth Elektronik Rod Core Choke rated current is up to 15 A with inductance independent of rated DC current. It offers high mechanical stability and high saturation currents. The operating temperature range is –40°C to +150°C, with custom designs available on request.

Switching regulators

Motors

Power amplifiers

Power supplies
