Broadcom Ambient Light Sensor Chip LED 6-Pin
- RS Stock No.:
- 230-5336
- Mfr. Part No.:
- APDS-9007-020
- Brand:
- Broadcom
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 2500 units)*
£1,625.00
(exc. VAT)
£1,950.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | £0.65 | £1,625.00 |
| 5000 - 7500 | £0.633 | £1,582.50 |
| 10000 + | £0.618 | £1,545.00 |
*price indicative
- RS Stock No.:
- 230-5336
- Mfr. Part No.:
- APDS-9007-020
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Ambient Light Sensor | |
| Typical Rise Time | 200μs | |
| Mount Type | Surface | |
| Typical Fall Time | 200μs | |
| Package Type | Chip LED | |
| Minimum Supply Voltage | 2V | |
| Application | Digital Camera, Webpads, Mobile Phone, PDA, TV | |
| Maximum Supply Voltage | 3.6V | |
| Number of Pins | 6 | |
| Minimum Operating Temperature | -40°C | |
| Output Signal Type | Current, Analogue | |
| Series | APDS-9007 | |
| Height | 0.8mm | |
| Length | 2.4mm | |
| Standards/Approvals | RoHS Compliance | |
| Width | 2mm | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Ambient Light Sensor | ||
Typical Rise Time 200μs | ||
Mount Type Surface | ||
Typical Fall Time 200μs | ||
Package Type Chip LED | ||
Minimum Supply Voltage 2V | ||
Application Digital Camera, Webpads, Mobile Phone, PDA, TV | ||
Maximum Supply Voltage 3.6V | ||
Number of Pins 6 | ||
Minimum Operating Temperature -40°C | ||
Output Signal Type Current, Analogue | ||
Series APDS-9007 | ||
Height 0.8mm | ||
Length 2.4mm | ||
Standards/Approvals RoHS Compliance | ||
Width 2mm | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard No | ||

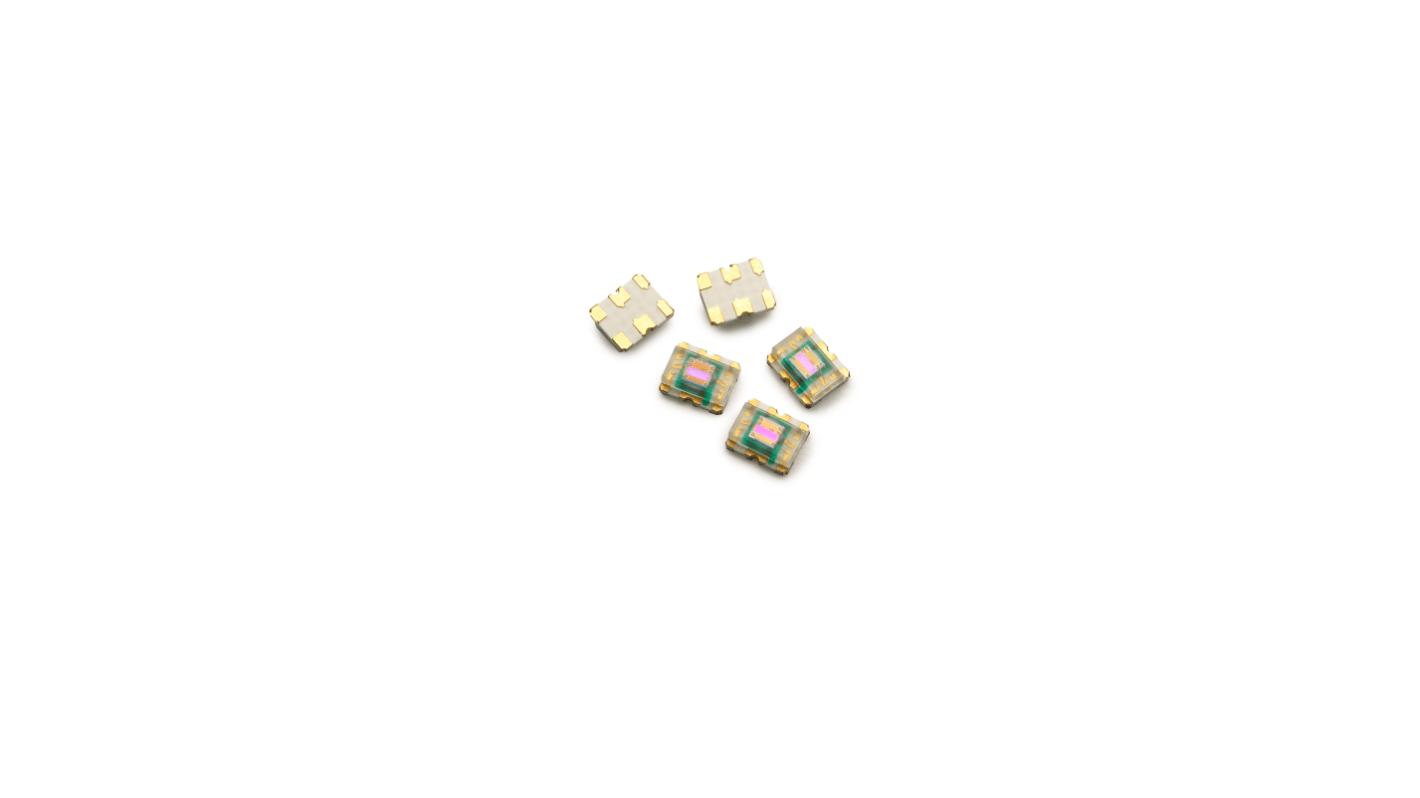

Broadcom APDS-9007 Series Ambient Light Sensor, 2.4mm Length, 2mm Width - APDS-9007-020
This ambient light sensor measures ambient illumination and provides an analogue current output for use in Compact consumer electronics. It is designed for surface mounting and operates from low supply voltages, making it suitable for integration in space-constrained devices that require Rapid detection of changes in light level.
Features and Benefits:
• Low-voltage operation supports supply range 2V-3.6V for power-sensitive systems
• Fast response time 200 μs rise and fall for quick light-change detection
• Analogue current output enables straightforward sensor interfacing
• Six-pin surface package facilitates Compact board-level placement
• Wide operating temperature range −40 °C to 85 °C for varied environments
• Fast response time 200 μs rise and fall for quick light-change detection
• Analogue current output enables straightforward sensor interfacing
• Six-pin surface package facilitates Compact board-level placement
• Wide operating temperature range −40 °C to 85 °C for varied environments
Applications
• Suitable for ambient light control in mobile phones
• Ideal for automatic exposure in digital cameras
• Used with PDAs for display brightness adjustment
• Can be used for ambient sensing in TVs
• Appropriate for webpads requiring responsive light feedback
• Ideal for automatic exposure in digital cameras
• Used with PDAs for display brightness adjustment
• Can be used for ambient sensing in TVs
• Appropriate for webpads requiring responsive light feedback
What package type should designers expect for PCB footprint planning?
The device is supplied in a chip LED package and is intended for surface mounting with six connection pins for board layout.
How does the sensor behave across temperature extremes?
It functions across a minimum of −40 °C up to a maximum of 85 °C, supporting operation in both cold and warm conditions.
What kind of output does the device provide to a downstream circuit?
It delivers an analogue output in the form of a current signal suitable for conversion or direct measurement by analogue front ends.
Is this sensor specified for automotive applications?
Automotive-grade approval is not required for this device and it is not specified as an automotive sensor.
What are the physical size considerations for integration into Compact products?
The sensor occupies a small footprint with dimensions of 2.4 mm length, 2 mm width and 0.8 mm height.
