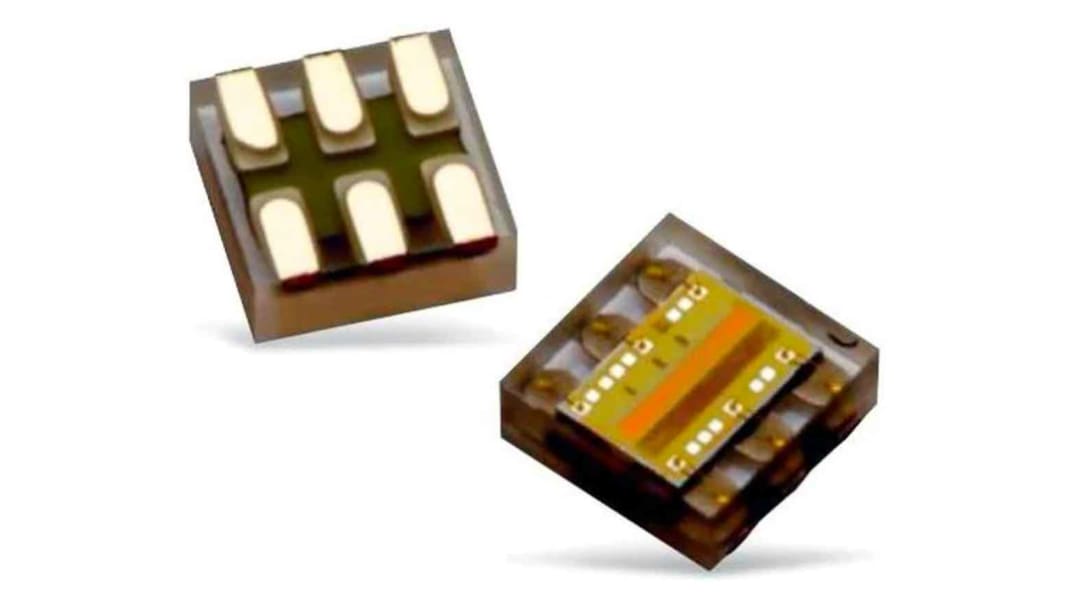

Broadcom Ambient Light Sensor 560 nm Chip LED 6
- RS Stock No.:
- 208-0511
- Mfr. Part No.:
- APDS-9306-065
- Brand:
- Broadcom
Subtotal (1 reel of 2500 units)*
£1,205.00
(exc. VAT)
£1,445.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5,000 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.482 | £1,205.00 |
*price indicative
- RS Stock No.:
- 208-0511
- Mfr. Part No.:
- APDS-9306-065
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Ambient Light Sensor | |
| Typical Rise Time | 300ns | |
| Mount Type | Surface | |
| Typical Fall Time | 300ns | |
| Package Type | Chip LED | |
| Maximum Wavelength Detected | 560nm | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 3.6V | |
| Application | PDA | |
| Output Signal Type | I2C | |
| Minimum Operating Temperature | -45°C | |
| Number of Pins | 6 | |
| Height | 0.34mm | |
| Length | 2mm | |
| Series | APDS | |
| Width | 2mm | |
| Standards/Approvals | UL | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Ambient Light Sensor | ||
Typical Rise Time 300ns | ||
Mount Type Surface | ||
Typical Fall Time 300ns | ||
Package Type Chip LED | ||
Maximum Wavelength Detected 560nm | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 3.6V | ||
Application PDA | ||
Output Signal Type I2C | ||
Minimum Operating Temperature -45°C | ||
Number of Pins 6 | ||
Height 0.34mm | ||
Length 2mm | ||
Series APDS | ||
Width 2mm | ||
Standards/Approvals UL | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The Broadcom /APDS-9306-065 is a low voltage Digital Ambient Light Sensor that converts light intensity to digital signal output with I2C interface. It consists of photodiode, ADC, oscillator and power-on reset to ensure consistent start-up. ADCs convert the photodiode currents to a digital output and the device is capable of rejecting50Hz and 60Hz fl icker caused by artifice cial light sources.
Utilizes Coating Technology to Emulate Human Eye
Spectral Response
High Sensitivity in Low Lux Condition – Ideally Suited for Operation Behind Dark Glass
Wide Dynamic Range 18,000,000 : 1
Low Lux Performance 0.01 lux
Up to 20-Bit Resolution
Wide Power Supply Range
