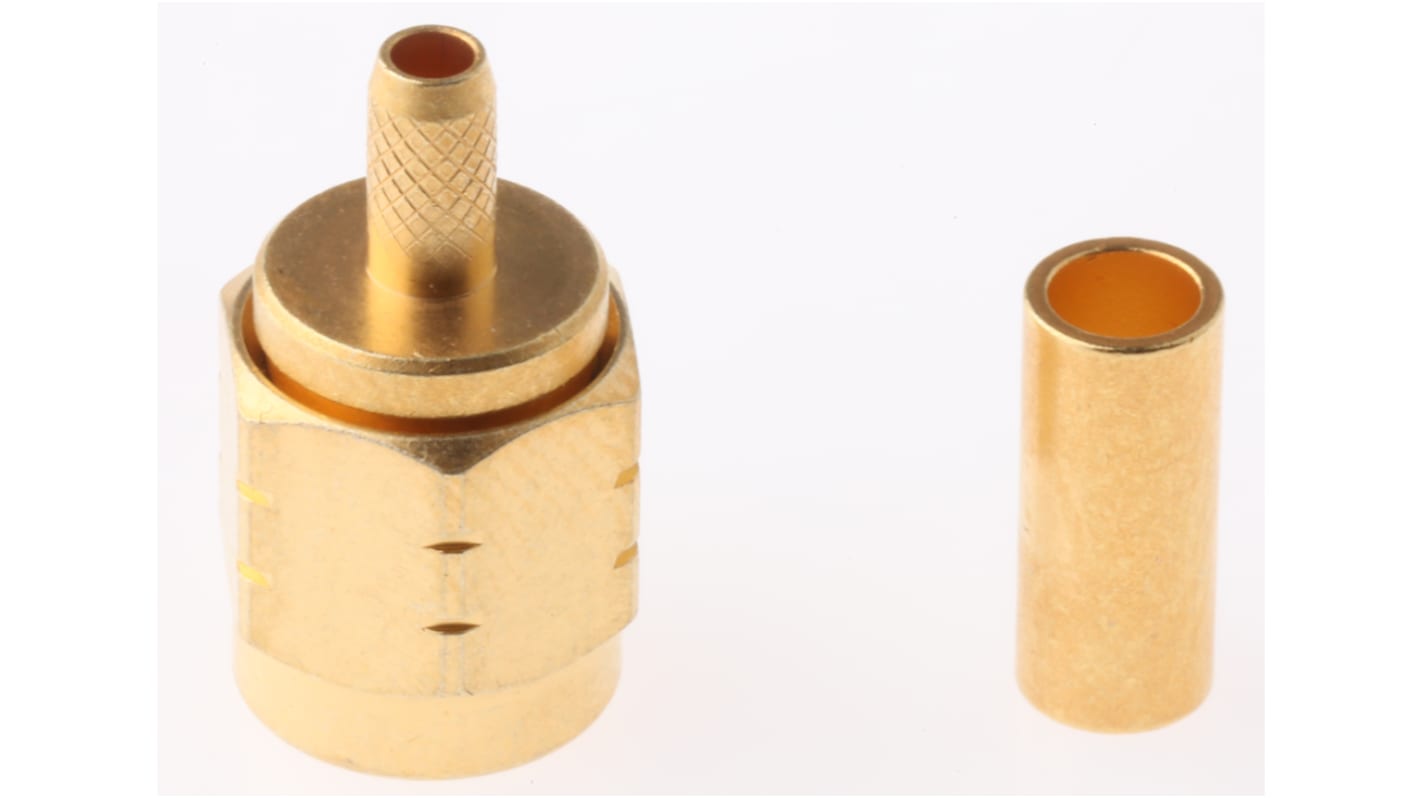

Use this SMA (SubMiniature version A) connector from RS PRO to join small coaxial cables together. As it provides a secure join, it allows for reliable data transmission without interruption or interference. This connector is compatible with RG174 and RG316/U coaxial cable types, making it a good option for use with WiFi antenna systems and handheld radio antennas.
The gold-plated beryllium copper contacts provide good electrical conductivity for robust signal transmission. The gold plating also resists wear and tear from repeated connections and disconnections, ensuring that the connector lasts a long time. The body of the connector features gold plating for good corrosion resistance, making it suitable for use in harsh environments.
The crimping termination method creates an airtight seal that keeps moisture out. This ensures clear data transmission and lengthens the service life of the connector.

• Straight body orientation
• Gold body plating
• No bulkhead
• RG174, RG316/U cable type
• SMA (SubMiniature version A) coaxial connector type
• Beryllium copper contact material
• Gold contact plating
• Male gender
• Impedance of 50 Ω
• Cable mounting type
• Operating frequency of 3 GHz
• Normal polarity
• Subminiature size
• Crimp termination method
• Voltage rating of 335 V
