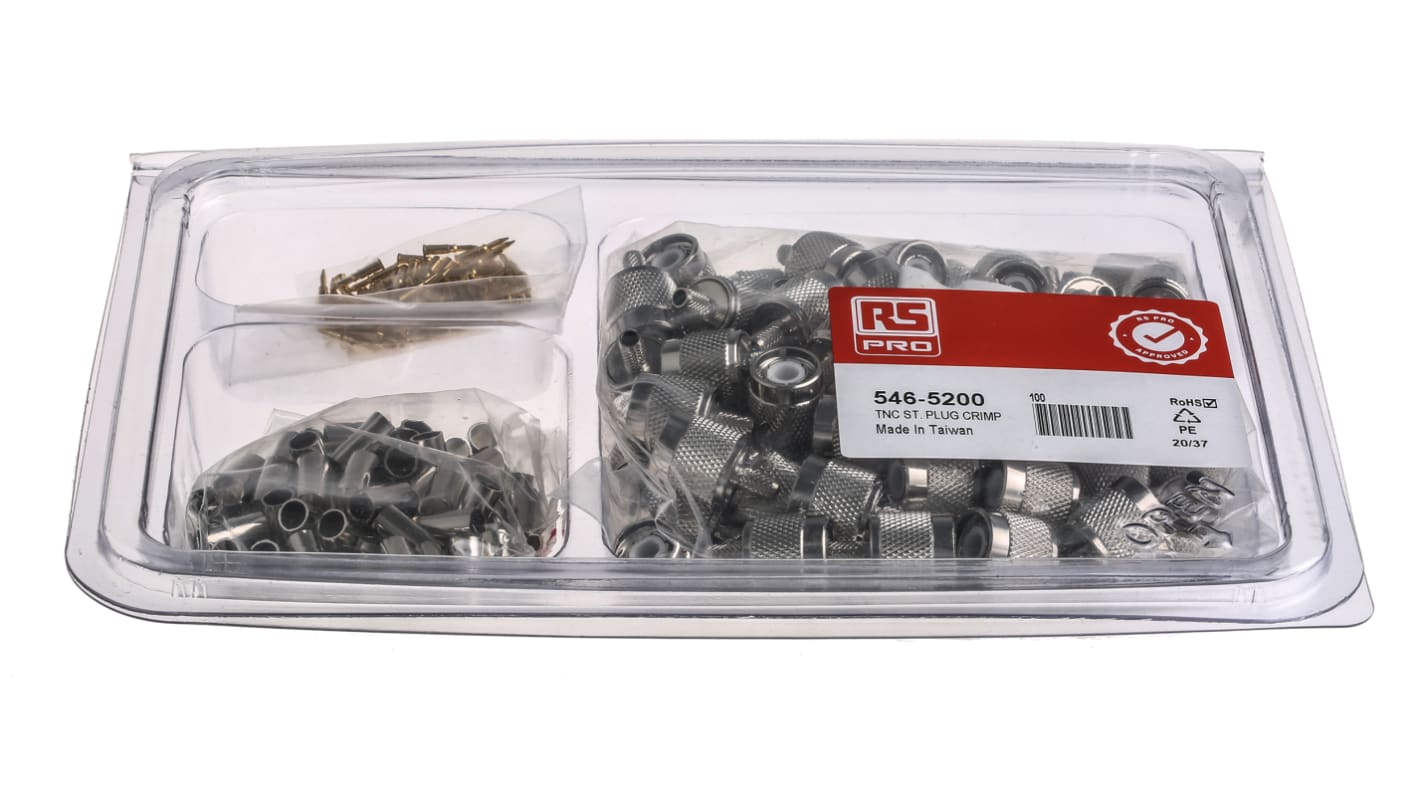

RS PRO, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 546-5200
- Distrelec Article No.:
- 304-03-321
- Brand:
- RS PRO
Subtotal (1 box of 100 units)*
£499.20
(exc. VAT)
£599.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £4.992 | £499.20 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£3.985
(exc. VAT)
£4.782
(inc. VAT)
- RS Stock No.:
- 546-5200
- Distrelec Article No.:
- 304-03-321
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | TNC Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Straight | |
| Cable Type | RG58 | |
| Polarity | Normal | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type TNC Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type RG58 | ||
Polarity Normal | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
RS PRO 50Ω Straight Cable Mount TNC Connector, Plug, RG58
This male TNC coaxial connector from our RS PRO range is a miniature radio-frequency (RF) connector that's used for joining RG58 coaxial cables together. When paired with its corresponding female receptacle, this straight cable mount connector creates stable transmission lines that are perfect for conveying data.
Used in a wide range of radio and wired applications, this connector performs particularly well at microwave frequencies (e.g. with portable radios and mobile phone antennas). It's finished with high-quality gold contact plating that protects against corrosion.
TNC connectors have a similar design to BNCs, but with a threaded screw-fit mechanism rather than a bayonet. Crafted with weatherproof materials, its secure screw-fit mechanism protects against vibration and external electromagnetic interference. For proper termination, the coaxial connector should be crimped onto the cable with a crimping tool.
Used in a wide range of radio and wired applications, this connector performs particularly well at microwave frequencies (e.g. with portable radios and mobile phone antennas). It's finished with high-quality gold contact plating that protects against corrosion.
TNC connectors have a similar design to BNCs, but with a threaded screw-fit mechanism rather than a bayonet. Crafted with weatherproof materials, its secure screw-fit mechanism protects against vibration and external electromagnetic interference. For proper termination, the coaxial connector should be crimped onto the cable with a crimping tool.
Features and Benefits
• Straight body male TNC connector
• Cable mounting
• Copper alloy contact material
• Crimp termination method
• Characteristic impedance of 50 Ω
• Normal polarity
• Gold contact plating
• Compatible with RG58 cables
• Weatherproof materials and screw-fit mechanism protect against external interference
• Cable mounting
• Copper alloy contact material
• Crimp termination method
• Characteristic impedance of 50 Ω
• Normal polarity
• Gold contact plating
• Compatible with RG58 cables
• Weatherproof materials and screw-fit mechanism protect against external interference
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
