RS PRO, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 283-7125
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£13.63
(exc. VAT)
£16.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 77 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £13.63 |
| 20 - 49 | £13.10 |
| 50 + | £12.58 |
*price indicative
- RS Stock No.:
- 283-7125
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | TNC Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Right Angle | |
| Cable Type | RG58 | |
| Size | Miniature | |
| Bulkhead | No | |
| Operating Frequency | 11GHz | |
| Minimum Operating Temperature | -30°C | |
| Body Plating | Nickel | |
| Polarity | Normal | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Mating Type | Screw Coupling | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type TNC Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type RG58 | ||
Size Miniature | ||
Bulkhead No | ||
Operating Frequency 11GHz | ||
Minimum Operating Temperature -30°C | ||
Body Plating Nickel | ||
Polarity Normal | ||
Maximum Operating Temperature +70°C | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Mating Type Screw Coupling | ||
- COO (Country of Origin):
- TW

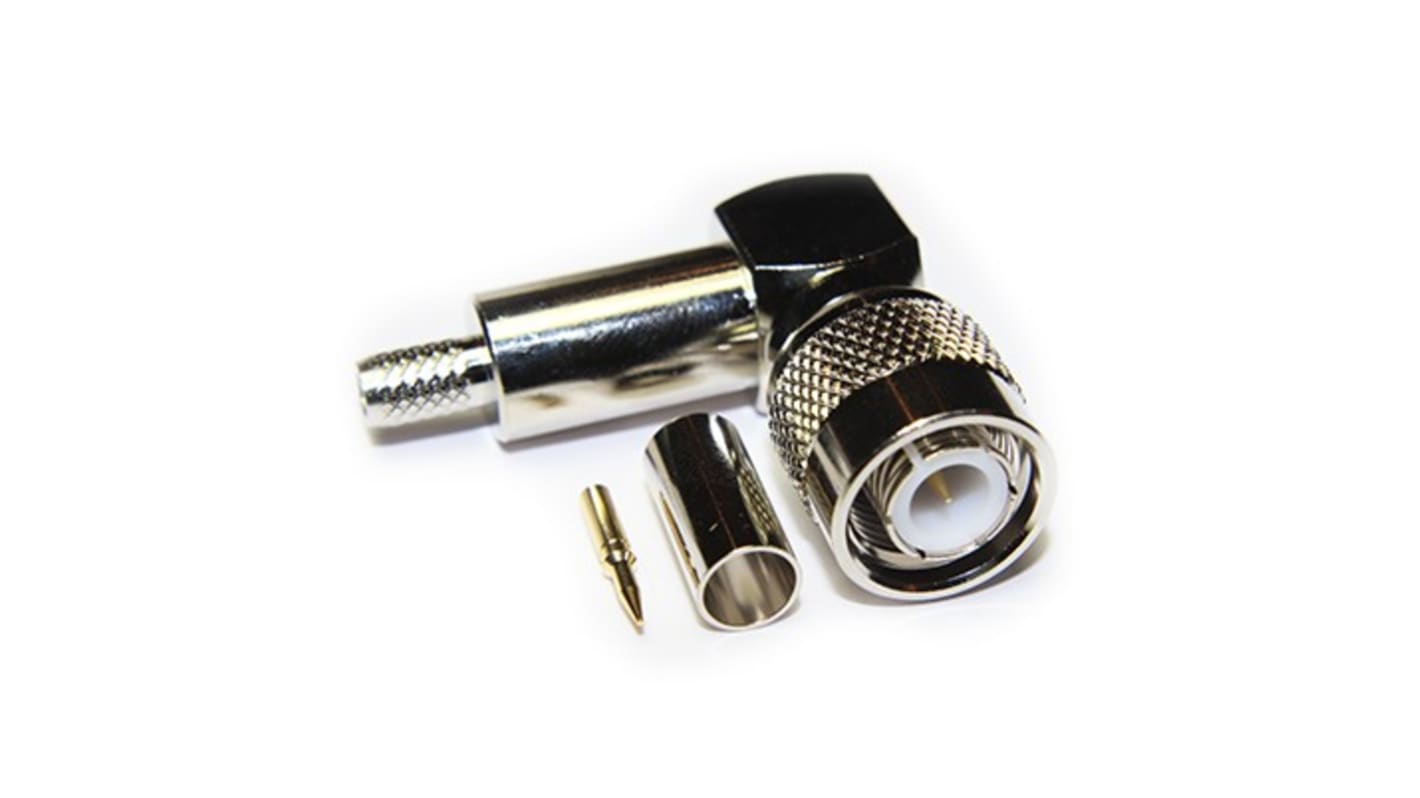

RS PRO 11GHz Right Angle TNC Coaxial Connector Plug for RG58 Cable (50 Ω)
A TNC plug set at a right angle for connection to RG58 cable enabling the creation of coax assemblies and suitable for applications requiring a frequency of up to 11GHz.
Featuring a threaded coupling for a secure connection with a TNC socket and simple straight crimp termination the coax plug is easy to install and suitable for up to 500 mating cycles.
Constructed from hardwearing Brass with a Nickel plating with Gold plated contacts the TNC coax plug is wear resistance and protected against repeated insertions and disconnections. The IP64 rating protecting against accidentally water splashes and dirt combined with the operating temperature of -30 to +70°C makes the TNC plug ideal for use in a wide range of applications.
The TNC coax plug features annealed contacts and crimp sleeves and is suitable for use in broadcasting, instrumentation and security applications along with use in the military and aerospace industries.
Features and Benefits
1GHz TNC coax plug
Suitable for RG58 cable
Right angle
Crimp termination
50 Ω impedance
Annealed contact and crimp sleeve
Nickel plated Brass
Gold plated contact
Delrin insulation
IP64 protected
500 mating cycles
Full detent
Dimensions 35 x 32mm
Standards and Approvals: MIL-STD-107, MIL-STD-202
