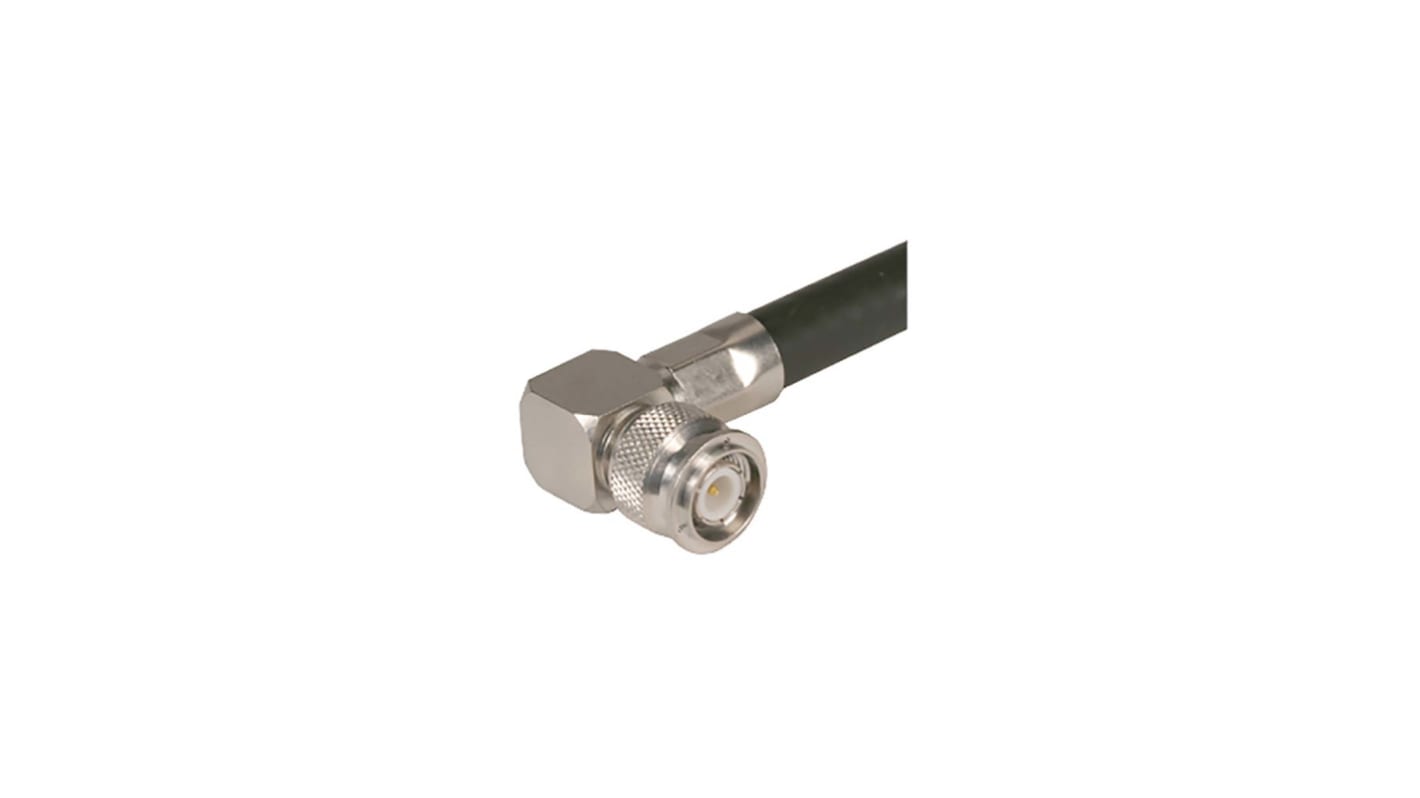

Huber+Suhner 16_TNC-50-7-17/133_NE Series, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 205-8996
- Distrelec Article No.:
- 302-15-203
- Mfr. Part No.:
- 16_TNC-50-7-17/133_NE
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 unit)*
£38.45
(exc. VAT)
£46.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £38.45 |
10 - 24 | £35.10 |
25 - 49 | £32.30 |
50 - 99 | £29.91 |
100 + | £26.92 |
*price indicative
- RS Stock No.:
- 205-8996
- Distrelec Article No.:
- 302-15-203
- Mfr. Part No.:
- 16_TNC-50-7-17/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Coaxial Connector Type | TNC Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Right Angle | |
Cable Type | Coaxial | |
Bulkhead | No | |
Polarity | Normal | |
Series | 16_TNC-50-7-17/133_NE | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Coaxial Connector Type TNC Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Polarity Normal | ||
Series 16_TNC-50-7-17/133_NE | ||
- COO (Country of Origin):
- CH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss 38 dB 26.8 dB 26 dB
Centre contact soldered
Outer contact crimped
Weight 0.0364 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss 38 dB 26.8 dB 26 dB
Centre contact soldered
Outer contact crimped
Weight 0.0364 kg
Operating temperature -65 °C to 165 °C
