RS PRO, Jack PCB Mount SMA Connector, Solder Termination, Straight Body
- RS Stock No.:
- 546-3276
- Distrelec Article No.:
- 304-05-746
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£10.10
(exc. VAT)
£12.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,831 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 14 | £10.10 |
15 - 49 | £9.33 |
50 - 99 | £8.06 |
100 - 249 | £5.66 |
250 + | £4.68 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.04
(exc. VAT)
£6.05
(inc. VAT)
- RS Stock No.:
- 546-3276
- Distrelec Article No.:
- 304-05-746
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Gender | Female | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | PCB Mount | |
Termination Method | Solder | |
Body Orientation | Straight | |
Size | Standard | |
Bulkhead | No | |
Operating Frequency | 0 → 12.4 GHz, 0 → 18GHz | |
Body Plating | Gold | |
Polarity | Normal | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type PCB Mount | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 0 → 12.4 GHz, 0 → 18GHz | ||
Body Plating Gold | ||
Polarity Normal | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW

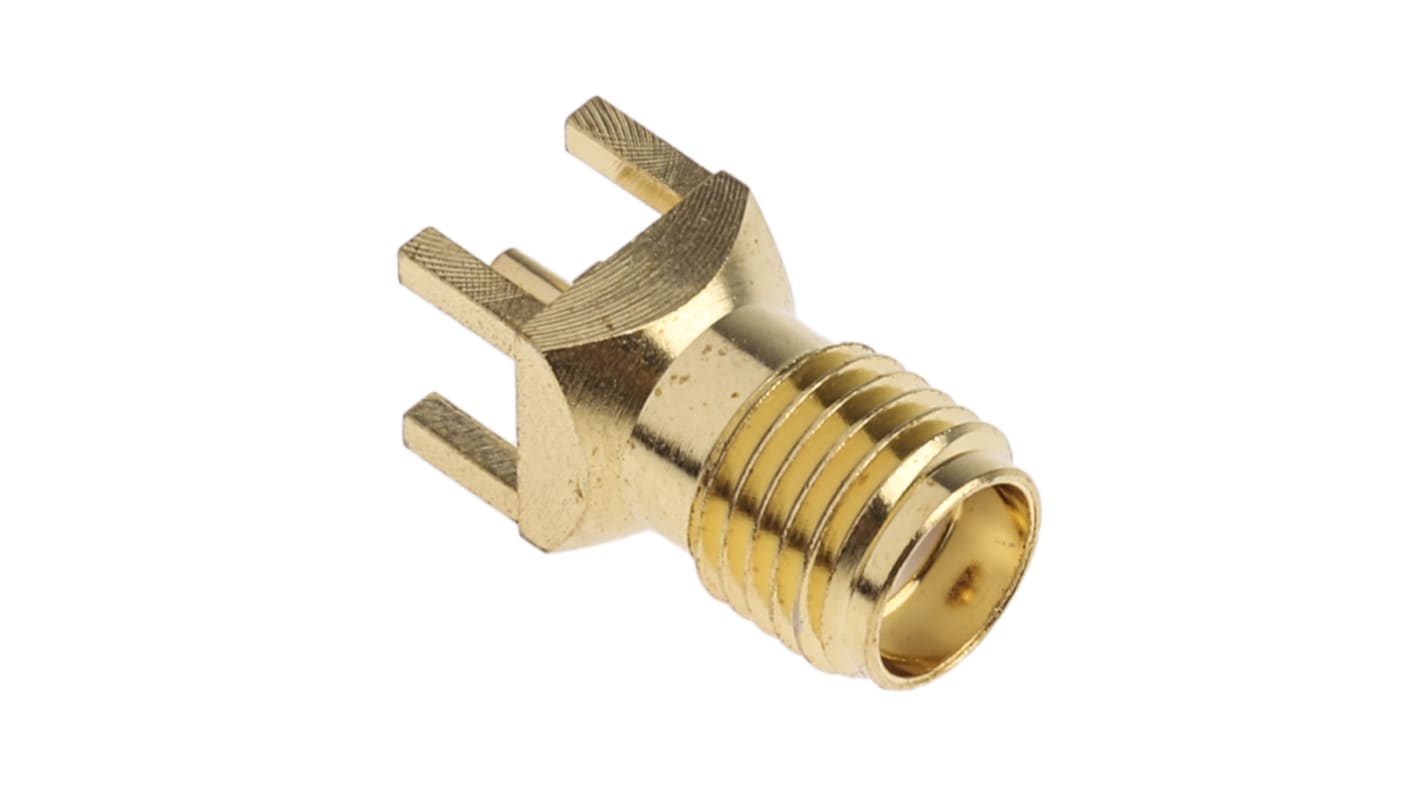

RS PRO Straight PCB Mount SMA Connector, Jack
This female SMA receptacle from the RS PRO range is a standard radio frequency (RF) connector that joins coaxial cables together.
Coaxial cables (or coax cables) allow you to transmit RF signals from one point to another and are used by homeowners, business owners and internet providers to convey data. When paired with a male connector of the same type, this straight PCB-mount receptacle allows you to join two coax cables together with ease.
The connector can be soldered onto flexible and semi-rigid cables and is available for the two most commonly used microwave cables – RG402/U and RG405/U. It has a gold-plated brass body making it an excellent conductor and a beryllium copper contact material that keeps the connector strong, despite its use in situations that require multiple insertions.
Accepting a variety of cables, this connector provides high-frequency performance at high power ratings in small diameters.
Coaxial cables (or coax cables) allow you to transmit RF signals from one point to another and are used by homeowners, business owners and internet providers to convey data. When paired with a male connector of the same type, this straight PCB-mount receptacle allows you to join two coax cables together with ease.
The connector can be soldered onto flexible and semi-rigid cables and is available for the two most commonly used microwave cables – RG402/U and RG405/U. It has a gold-plated brass body making it an excellent conductor and a beryllium copper contact material that keeps the connector strong, despite its use in situations that require multiple insertions.
Accepting a variety of cables, this connector provides high-frequency performance at high power ratings in small diameters.
Features and Benefits
• Straight body female SMA connector
• PCB (printed circuit board) mounting
• Operating frequency of 0 to 12.4 GHz or 0 to 18 GHz depending on class
• Normal polarity
• Available in both captive and non-captive form
• Gold contact and body plating
• PCB (printed circuit board) mounting
• Operating frequency of 0 to 12.4 GHz or 0 to 18 GHz depending on class
• Normal polarity
• Available in both captive and non-captive form
• Gold contact and body plating
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
